MODEL 1405/1415
Printed in U.S.A. NOTE: FOR COMMERCIAL USE ONLY
NOTE: The company reserves the right to make substitutions of components without prior notice
APPROVAL/STAMP
P/N 35043 Rev D (10/01)
DIMENSIONS: Single Double
Number of sections: 1 2
Number of controls: 1 2
Number of compartments: 1 2
Size of compartments: 20" D x 20" H (508mm W x 508mm H)
Clearance below oven: 4" (102mm) minimum
Counter space: 27-3/8" x 23-11/16" (695mm x 602mm)
Minimum entry clearance: 23" (548mm)
POWER SUPPLY:
1400 Series (three heaters)
208 VAC, 60 Hz, 1 Phase, 3750 Watts, Line Amps 18
208 VAC, 60 Hz, 3 Phase, 3750 Watts, Line Amps 11-11-11
220-240 VAC, 60 Hz, 1 Phase, 3750 Watts, Line Amps 16
220-240 VAC, 60 Hz, 3 Phase, 3750 Watts, Line Amps 9-9-9
220-380 VAC, 50 Hz, 3 Phase, 3750 Watts, Line Amps 6-6-6
240-215 VAC, 50 Hz, 3 Phase, 3750 Watts, Line Amps 6-6-6
240 VAC, 50 Hz, 1 Phase, 3750 Watts, Line Amps 16
220 VAC, 50 Hz, 1 Phase, 3750 Watts, Line Amps 17
This oven contains a mercury relay. DO NOT put mercury relay in trash. Relay must
be recycled or disposed of as hazardous waste.
MINIMUM ENTRY CLEARANCE:
Uncrated 17"
Crated 26"
SHIPPING INFORMATION:
Approx. Weight: Crated Uncrated
1405 Single: 215 lbs. (98 kg) 195 lbs. (88 kg)
1415 Single: 215 lbs. (98 kg) 195 lbs. (88 kg
1405 Double: 430 lbs. (195 kg) 390 lbs. (177 kg)
1415 Double: 430 lbs. (195 kg) 390 lbs. (177 kg)
Crate size: 33" x 37" x 26"
(838 mm x 940 mm x 661 mm)

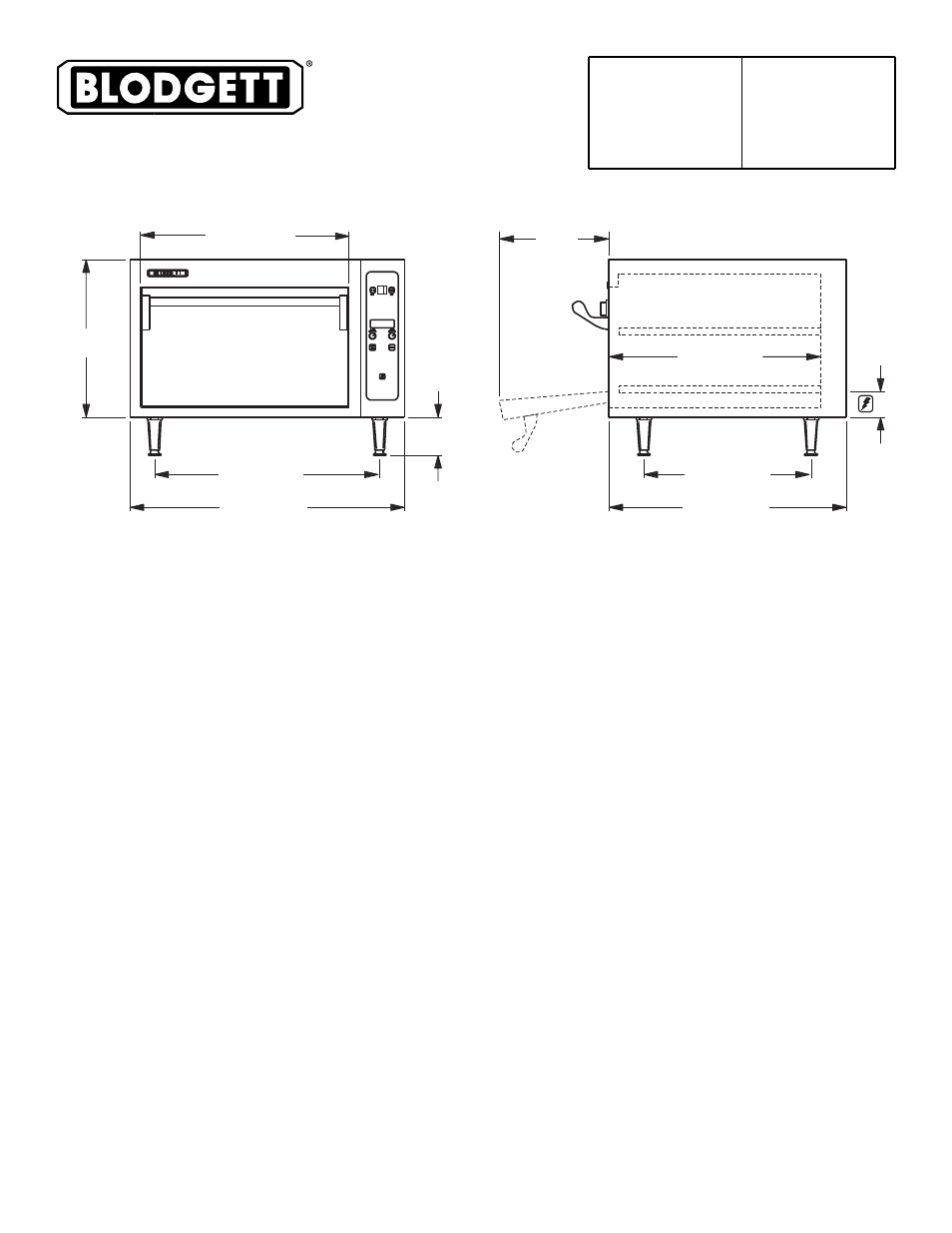

FRONT VIEW
22-3/8” (568mm)
27-1/4” (692mm)
20-3/4” (527mm)
16-3/4”
(425mm)
4” (102mm) min.
5-3/8” (137mm) max.
SIDE VIEW
2-3/4”
(70mm
11”
(279mm)
21-1/8” (537mm)
16-5/8” (422mm)
23-5/8” (600mm)
CLOSED
OPEN
