Bush Hog 2045 - Manual (Page 72)

BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL
1-19H-4

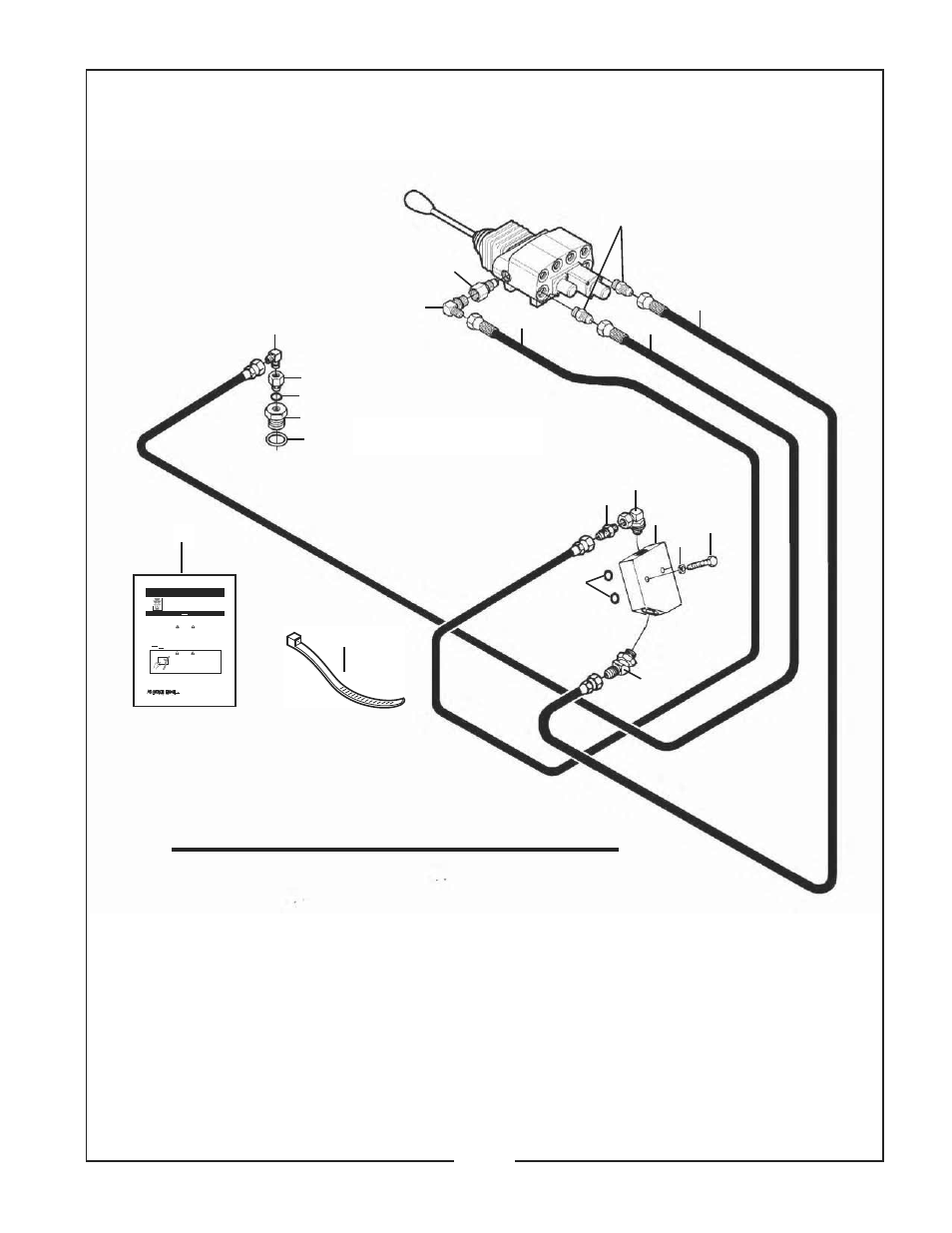

50031120 HYDRAULIC ADAPTOR KIT
2045 LOADER
Kubota Models: L2050, L2350, L2500, L2600, L3000
(Without power steering)
Note: Item No. 9 replaces oil fill
cap behind operators seat.
1
Note: Power Beyond Plug is shipped
in the Control Valve package.
2
3
4
6
7
8
9
10
11
12
12
13
14
15
16
5
Note: Adaptors are shipped with the Control Valve package.
(See valve mount instructions for proper assembly)
REF. PART
NO. NO.
QTY. DESCRIPTION
1 52161 4 Cable Tie
2 53338 1 9/16” ORB Male to 9/16” JIC Male 90°
3 25H42221 1 3/8” NPSM Female to 9/16”-18 ORB Male 90°
4 25H43318 1 3/8” NPT Male to 9/16” JIC Male
5 25H42224 2 O-Ring Seal
6 25H41174 1 9/16”-18 JIC Male to 9/16”-18 ORB Male 45°
7 44358 2 Capscrew M8 x 1.25 x 55
8 25H43846 1 Manifold Block
9 25H43860 1 Reducing Adaptor
10 25H42284 1 3/8” NPT Female to 3/8” BSPP Male
11 80418 1 Male Pipe 90° Elbow (3/8” Pipe - 9/16” JIC)
12 50031130 2 Hyd. Hose Assy. 3/8” x 100”
13 50031128 1 Hyd. Hose Assy. 3/8” x 80”
14 44311 2 Lockwasher M8
15 25H42290 1 BSP Gasket
16 25H44111 1 Metal Gasket
50031121 1 Instruction Sheet
17
SEPTEMBER, 2006
