BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL
1-19B-6

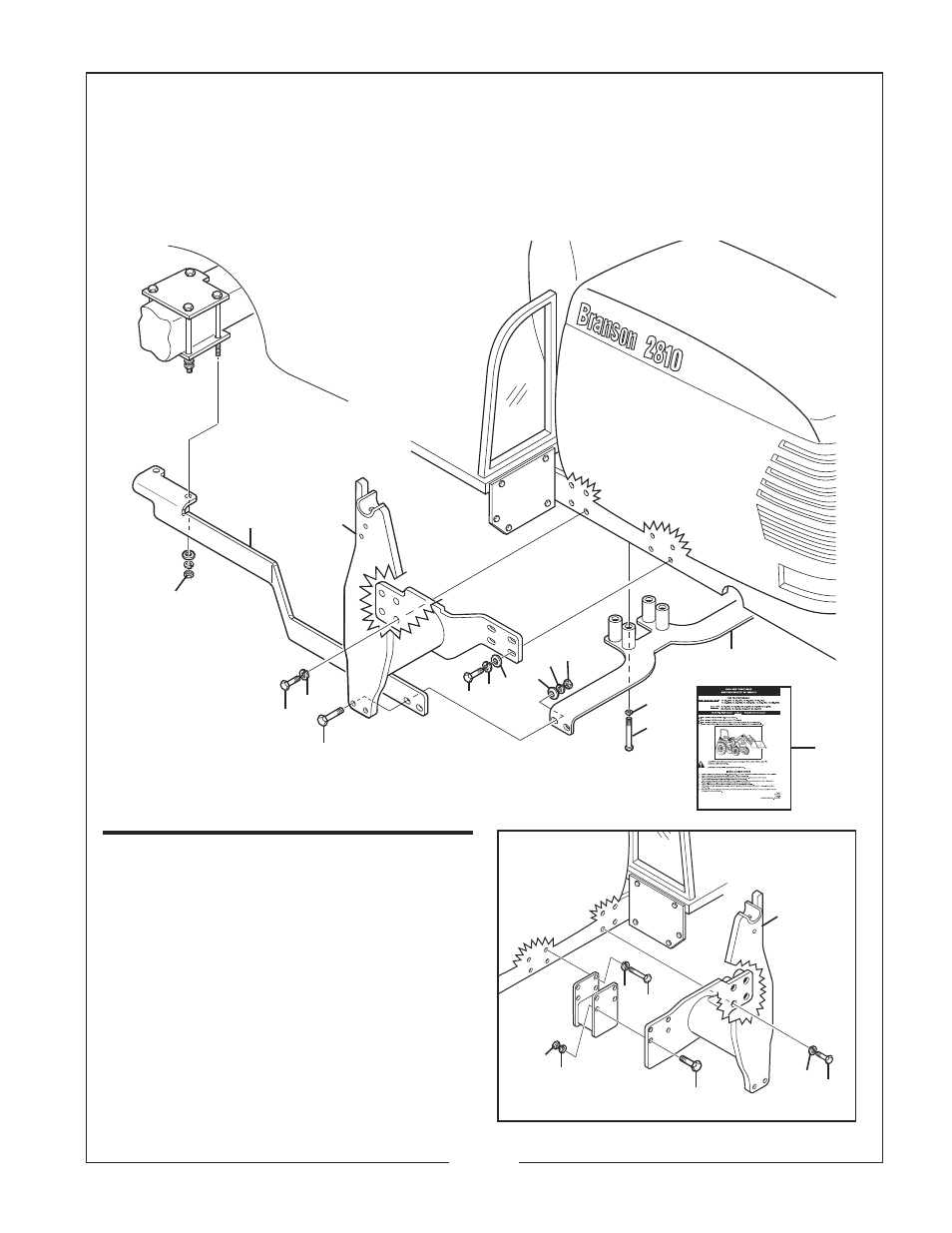

50048473 MOUNTING BRACKET KIT
2045 LOADER
TRACTORS USED ON: BRANSON 2810-2WD, 2810-FWA, 3510-2WD, 3510-FWA
REF. PART
NO. NO.
QTY. DESCRIPTION
1 50043842 1 Mounting Bracket, L.H.
2 50043844 1 Rear Brace, R.H.
50043845 1 Rear Brace, L.H.
3 50043843 1 Belly Bracket
4 50048479 1 Center Bracket, L.H.
50048474 1 Center Bracket, R.H.
5 –––– 4 Flatwasher 5/8”
6 44778 4 Capscrew M12 x 1.75 x 100 G8.8
7 44269 4 Flatwasher M12
8 44285 8 Capscrew M12 x 1.75 x 60 G8.8
9 44200 12 Lockwasher M12
10 –––– 8 Hex Nut 5/8”
11 –––– 4 Capscrew 5/8” x 2”
12 –––– 4 Capscrew 5/8” x 3”
13 44398 4 Capscrew M16 x 2.0 x 60 G8.8
14 44993 4 Capscrew M16 x 2.0 x 85 G8.8
15 –––– 16 Lockwasher 5/8”
16 50048482 1 Instruction Sheet
16
13
15
12
2 4
8
9
7
5
15 10
9
6
11
4
8
15
15
10
9
14
3
Existing hardware
LEFT SIDE
SEPTEMBER, 2006
