BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL
1-19B-26

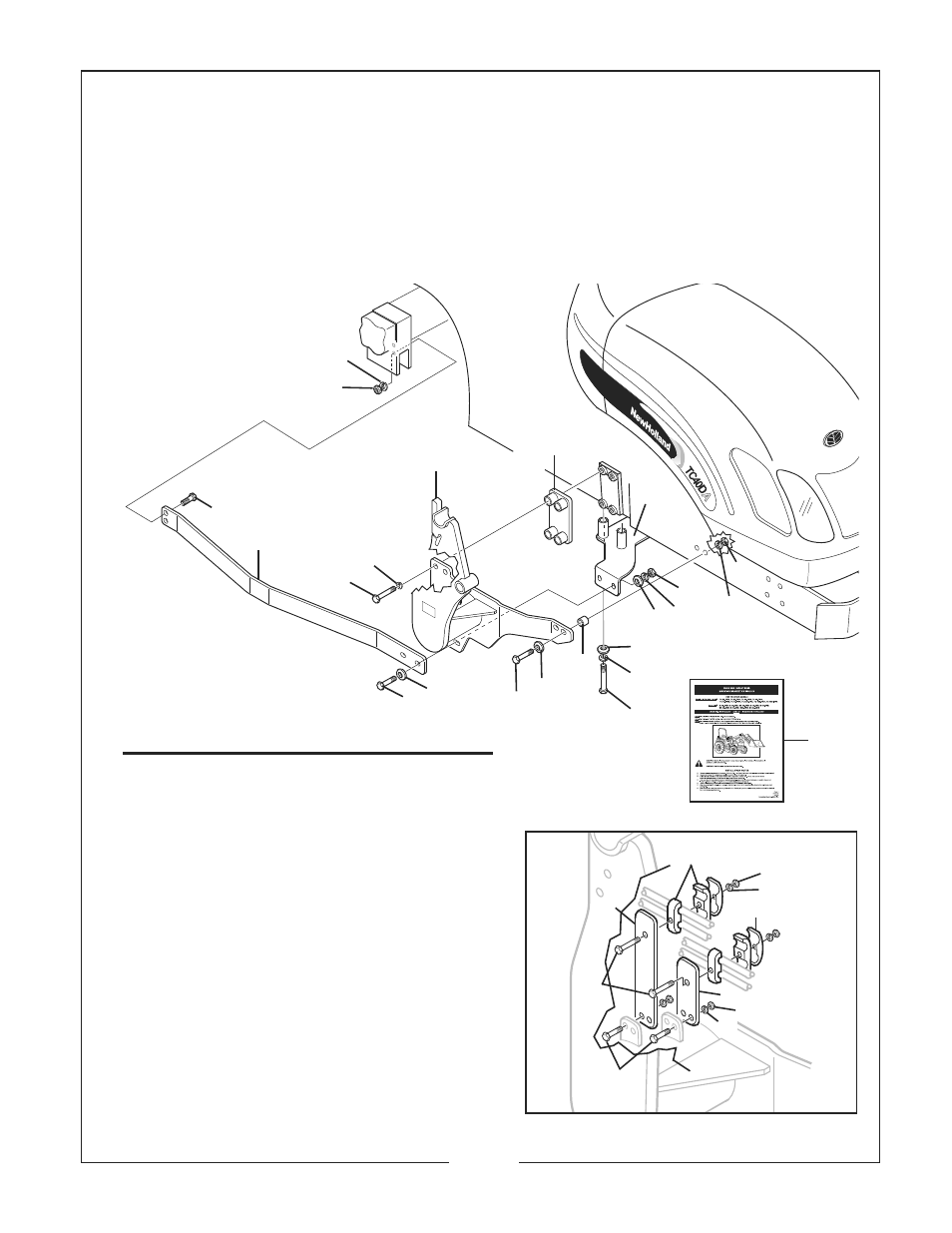

50057648 MOUNTING BRACKET KIT
2045 LOADER
FOR TRACTOR MODELS
FORD / NEW HOLLAND TC 40DA-2WD, TC 40DA-FWA,TC 45DA-2WD, TC 45DA-FWA;
(CAB MODELS ONLY)
CASE / I.H DX 40-2WD, DX 40-FWA, DX 45-2WD, DX 45-FWA;
(CAB MODELS ONLY)
REF. PART
NO. NO.
QTY. DESCRIPTION
1 50033825 1 Lower Brace Weldment
2 50033818 2 Spacer Pad Weldment
3 50057652 1 L.H. Mounting Bracket Weldment
50057651 1 R.H. Mounting Bracket Weldment
4 50033817 1 Axle Support R.H.
50033816 1 Axle Support L.H.
5 50028025 2 Cover Plate
6 50028024 2 Tube Clamp - (Pair)
7 50033828 1 Inner Support Bracket
8 50033827 1 Outer Support Bracket
9 25H30646 4 Spacer Bushing - (1”)
10 —— 2 Capscrew 1/4” x 1-1/2” G5 ZP
11 —— 6 Hex Nut 1/4” CP
12 —— 6 Lockwasher 1/4” CP
13 —— 4 Capscrew 1/4” x 1” G5 ZP
14 —— 12 Hex Nut 5/8” CP
15 —— 16 Flatwasher 5/8” SAE HRD ZP
16 —— 24 Lockwasher 5/8” CP
17 —— 4 Capscrew 5/8” x 3-1/4” G5 ZP
18 —— 4 Capscrew 5/8” x 2-3/4” G5 ZP
19 —— 4 Capscrew 5/8” x 2” G5 ZP
20 44415 8 Capscrew M16 x 2 x 90 G8.8 ZP
21 44324 4 Capscrew M16 x 2 x 110 G8.8 ZP
22 50057650 1 Instruction Sheet
22
Support Brackets
12
12
11
7
5
6
11
10
8
13
14
16
3
2
1
4
19
15
15
15
17 18
15
9
16
16
16
14
21
14
20
16
JULY, 2007
