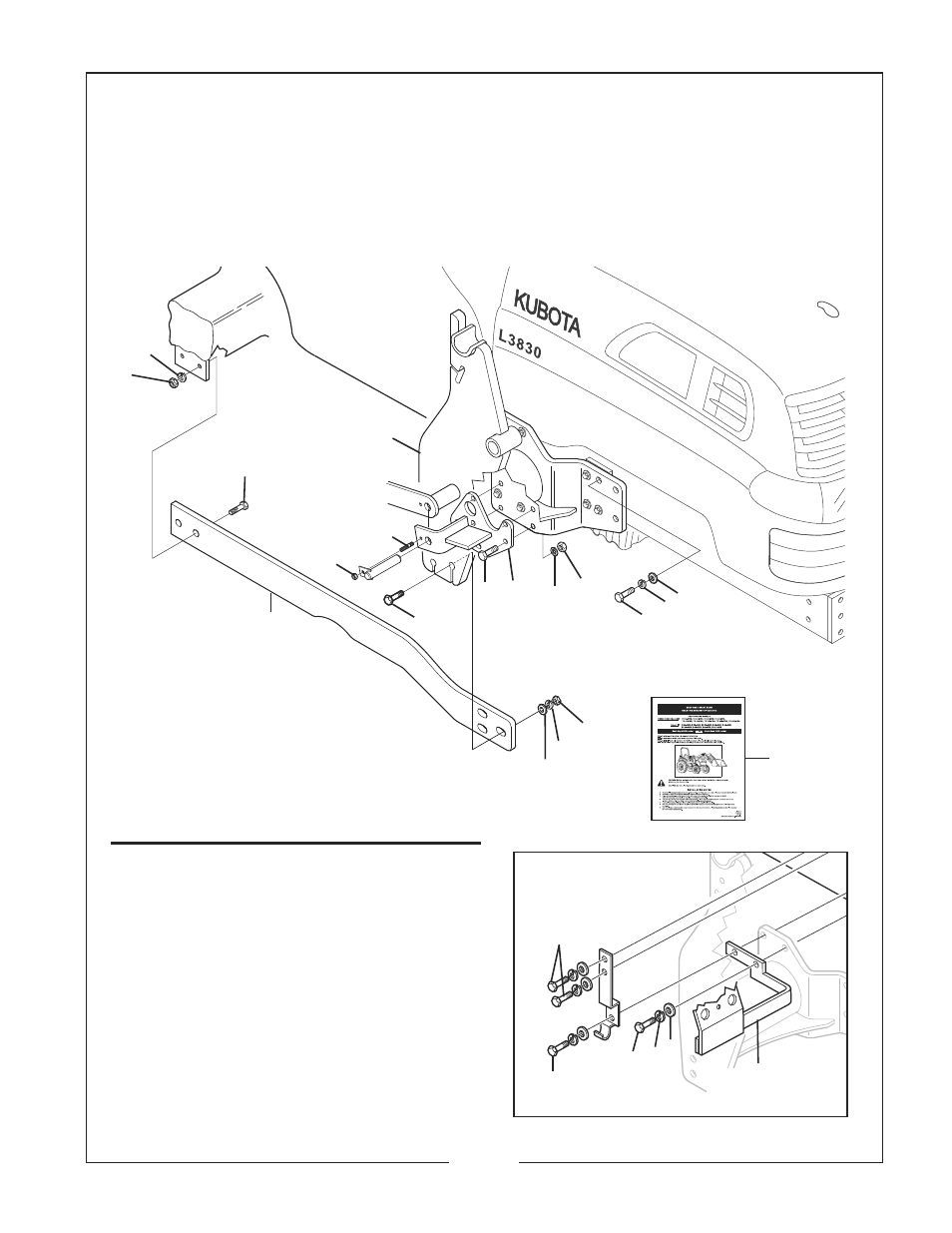

BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL
1-19B-16
50062928 MOUNTING BRACKET KIT
2045 LOADER
TRACTORS USED ON:
KUBOTA L3130 2WD, L3130 FWA, L3240 2WD, L3240 FWA, L3430 FWA,
L3540 FWA, L3830 2WD, L3830 FWA, L3940 FWA
REF. PART
NO. NO.
QTY. DESCRIPTION
1 50061747 1 L.H. Mounting Bracket Weldment
50061746 1 R.H. Mounting Bracket Weldment
2 50061752 1 L.H. Rear Axle Brace
50061753 1 R.H. Rear Axle Brace
3 50061740 1 R.H. Mower Bracket
50061741 1 L.H. Mower Bracket
4 50062931 1 Instruction Sheet
5 50062942 2 Tap-End Stud M8 x 1.25
6 –––– 10 Hex Nut 5/8” G5 CP
7 –––– 10 Capscrew 5/8” x 2-3/4” G5 ZP
8 44291 16 Capscrew M16 x 1.5 x 45 G8.8ZP
9 –––– 26 Lockwasher 5/8” CP
10 44814 22 Flatwasher 5/8” NRW HRD ZP
11 –––– 8 Capscrew 1/2” x 1-3/4” G5 ZP
12 –––– 8 Lockwasher 1/2” CP
13 –––– 8 Hex Nut 1/2” CP
14 44854 2 Hex Nut M8 x 1.25 CP
6
9
7
1
7
11 3
9
8
12
10
6
5
14
2
10
9
6
4
SUPPORT BRACKET
L40 Series Only
Existing Fasteners
Existing Fasteners
8 12
10
JUNE, 2008
