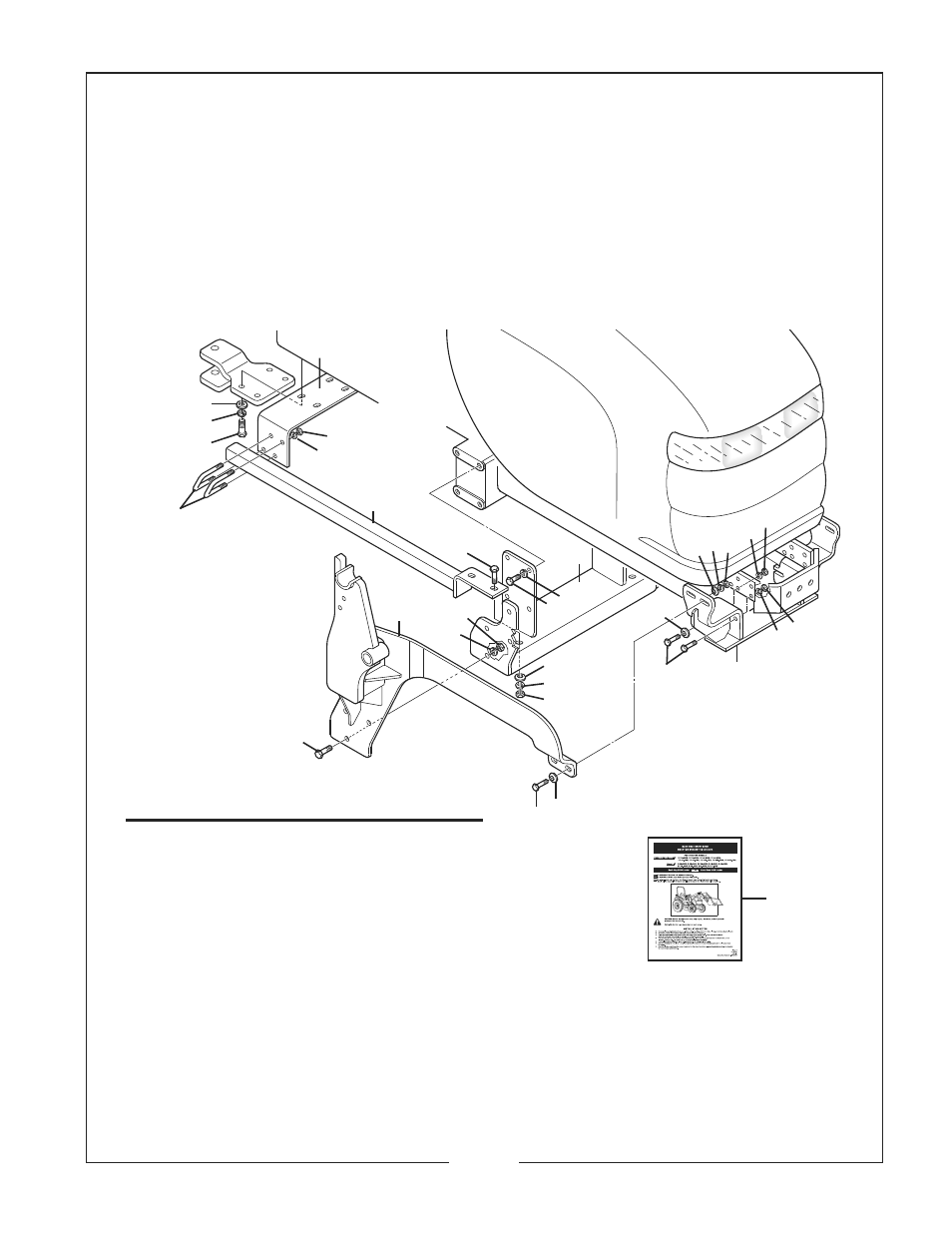

BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL
1-19B-8
18
REF. PART
NO. NO.
QTY. DESCRIPTION
1 50031446 2 Rear Brace Tube Weldment
2 50050792 1 L.H. Mounting Bracket
50050791 1 R.H. Mounting Bracket
3 50035043 1 Center Support Weldment
4 50031445 1 Rear Mounting Plate
5 50038625 1 Front Bracket Weldment
6 50031471 4 U-Bolt 1/2” ZP
7 15925 4 Flatwasher 5/8” ZP
8 8151600 16 Hex Nut 1/2” CP
9 15916 10 Flatwasher 1/2” ZP
10 15806 16 Lockwasher 1/2” CP
11 20110 8 Capscrew 1/2” x 2” G5 ZP
12 15563 12 Hex Nut 5/8” CP
13 19486 24 Lockwasher 5/8” CP
14 20947 12 Capscrew 5/8” x 2” G5 ZP
15 44308 4 Flatwasher M16 ZP
16 44103 8 Capscrew M16 x 2 x 40 G8.8 ZP
17 44326 4 Capscrew M16 x 2 x 50 G8.8 ZP
18 50050795 1 Instruction Sheet
15
13
17 8
4
10
1
14
2 16
7
13
12
9
9
11
10
10
10
8
8
8
5
11
9
13
12
13
14
3
6
50050790 MOUNTING BRACKET KIT
2045 LOADER
TRACTORS USED ON:
FORD / NEW HOLLAND 1530-2WD, 1530-FWA, 1630-FWA, 1725-2WD, 1725-FWA, 1925-FWA,
TC25-2WD, TC25-FWA, TC25D-FWA, TC29-2WD, TC29-FWA, TC29D-FWA, TC29DA-FWA, TC30-FWA,
TC31DA-FWA, TC33-2WD, TC33-FWA, TC33D-FWA, TC33DA-FWA, TC34DA-FWA, T2210-FWA, T2220-FWA, T1520-FWA,
T1510-FWA, BOOMER 2030-FWA, BOOMER 2035-FWA
CASE / I.H D25-2WD, D25-FWA, DX25-FWA, D29-2WD, D29-FWA, DX29-FWA,
DX29 FARMALL FWA, D33-2WD, D33-FWA, DX31 FARMALL-FWA, DX33-FWA,
DX33 FARMALL FWA, DX34 FARMALL-FWA, FARMALL 31, FARMALL 35
May, 2009
