BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL
1-19B-10

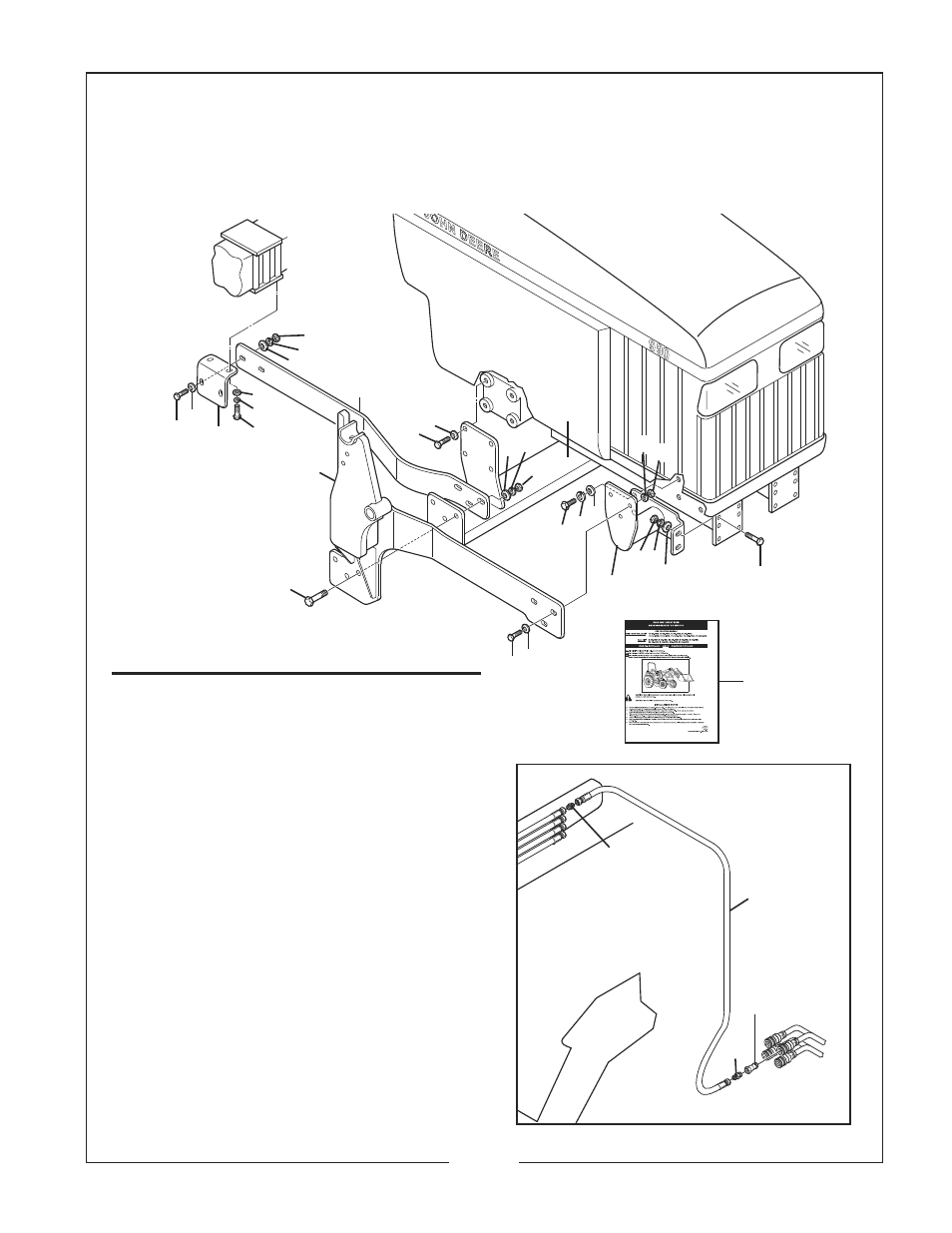

50050871 MOUNTING BRACKET KIT
2045 LOADER
TRACTORS USED ON:
JOHN DEERE 990-2WD, 990-FWA
REF. PART
NO. NO.
QTY. DESCRIPTION
1 50048879 1 L.H. Rear Brace
50048878 1 R.H. Rear Brace
2 50050873 1 Center Bracket L.H.
50050874 1 Center Bracket R.H.
3 50037680 2 Rear Axle Hanger
4 50048881 1 Center Support Weldment
5 50031420 1 Front Support L.H. Weldment
50031419 1 Front Support R.H. Weldment
6 1560370 4 Hydraulic Hose Assembly (48”)
7 25H40043 4 Male Straight Adaptor
8 53341 4 Hyd. Fitting Adaptor
9 44814 4 Flatwasher 5/8” SAE HRD ZP
10 –––– 4 Capscrew 7/16” x 2” G5 ZP
11 –––– 4 Lockwasher 7/16” CP
12 –––– 4 Flatwasher 7/16” ZP
13 –––– 4 Hex Nut 7/16” CP
14 –––– 6 Hex Nut 5/8” G5 CP
15 –––– 6 Flatwasher 5/8” ZP
16 –––– 18 Lockwasher 5/8” CP
17 –––– 6 Capscrew 5/8” x 2-3/4” G5 ZP
18 –––– 10 Hex Nut 1/2” CP
19 –––– 14 Flatwasher 1/2” ZP
20 –––– 10 Lockwasher 1/2” CP
21 –––– 10 Capscrew 1/2” x 1-3/4” G5 ZP
22 44103 12 Capscrew M16 x 2 x 40 G8.8 ZP
23 44200 4 Lockwasher M12 ZP
24 44269 4 Flatwasher M12 ZP
25 44243 4 Capscrew M12 x 1.75 x 40 G8.8 ZP
26 50050872 1 Instruction Sheet
19
24
23
25
19
21
20
18
1
22
2
17
16
15
4
16
14
22
13 11
12 10
5
21
19
16
20
18
15
3
26
7
6
8
Male Quick
Coupler
SEPTEMBER, 2006
