BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL
1-19B-25
50057483 MOUNTING BRACKET KIT

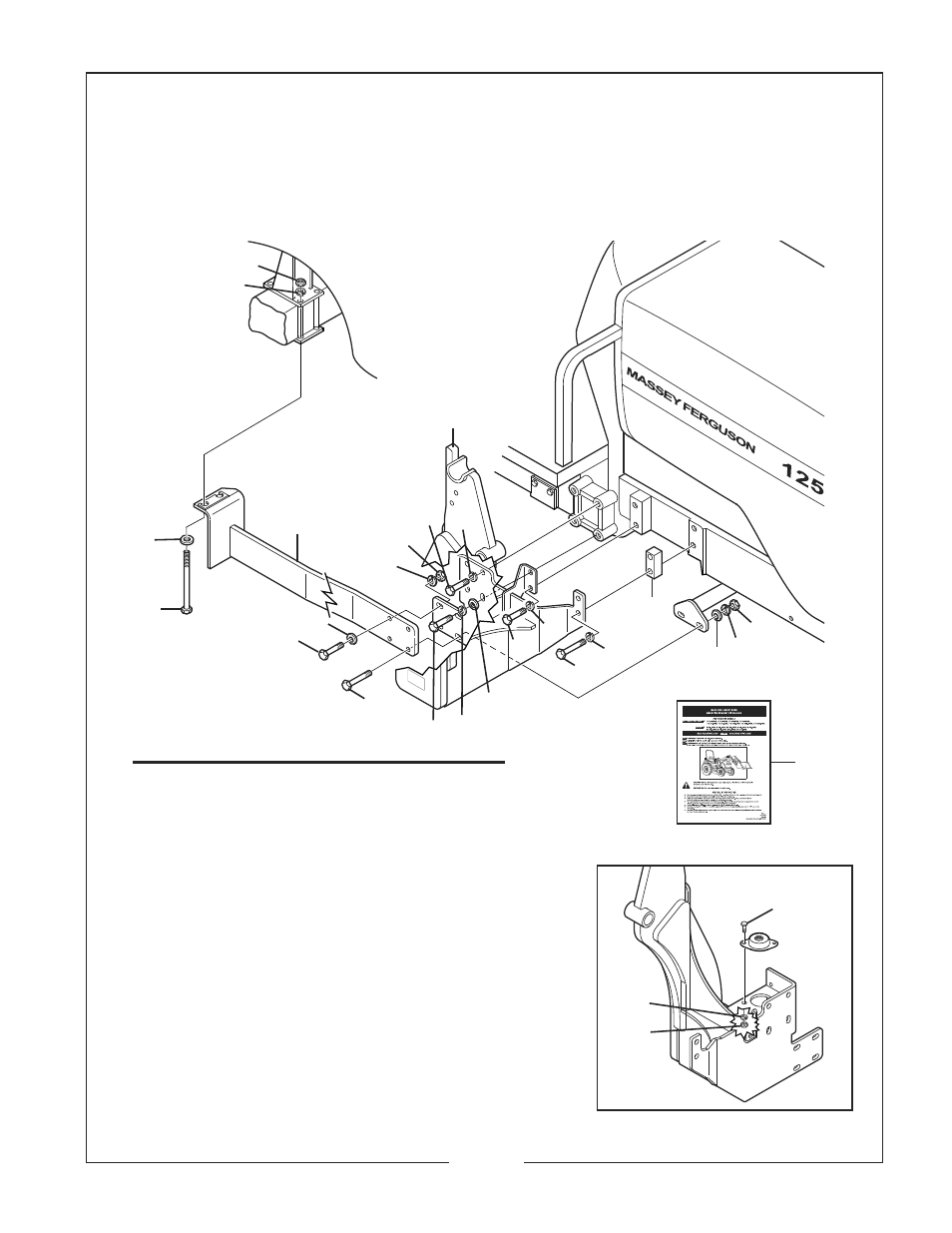

2045 LOADER
TRACTORS USED ON:
Massey Ferguson 1250 2WD, 1250 FWA, 1260 2WD, 1260 FWA
REF. PART
NO. NO.
QTY. DESCRIPTION
1 50057488. 1 L.H. Rear Brace Weldment
50057487 1 R.H. Rear Brace Weldment
2 50057486 1 Crossbrace Weldment
3 50057485 1 L.H. Bracket Weldment
50057484 1 R.H. Bracket Weldment
4 50057501 2 Spacer Block
5 50057491 1 Instruction Sheet
6 —— 4 Hex Nut 3/8” CP
7 —— 4 Lockwasher 3/8” CP
8 —— 4 Capscrew 3/8” x 1-1/4” G5 ZP
9 44243 4 Capscrew M12 x 1.75 x 40 G8.8 ZP
10 45197 4 Capscrew 1/2” x 7” G8 ZP
11 —— 12 Hex Nut 1/2” CP
12 —— 12 Flatwasher 1/2” SAE HRD ZP
13 —— 4 Capscrew 1/2” x 2-1/4” G5 ZP
14 —— 4 Capscrew 1/2” x 1-3/4” G5 ZP
15 44263 4 Flatwasher M14 ZP
16 —— 8 Lockwasher 9/16” CP
17 44253 8 Capscrew M14 x 2.0 x 35 G8.8 ZP
18 44427 2 Capscrew M12 x 1.75 x 75 G8.8 ZP (Left Side)
44594 2 Capscrew M12 x 1.75 x 90 G8.8 ZP (Right Side)
19 —— 20 Lockwasher 1/2” CP
5
11
19
12
1
12
11
17
16
3
19
14
13
17
16
15
9
19
18
19
4
12
19
11
10
8
7
6
Relocation of Rubber Cushion
JULY, 2007
