Page 144
CHAPTER 5 MAINTENANCE
5-28

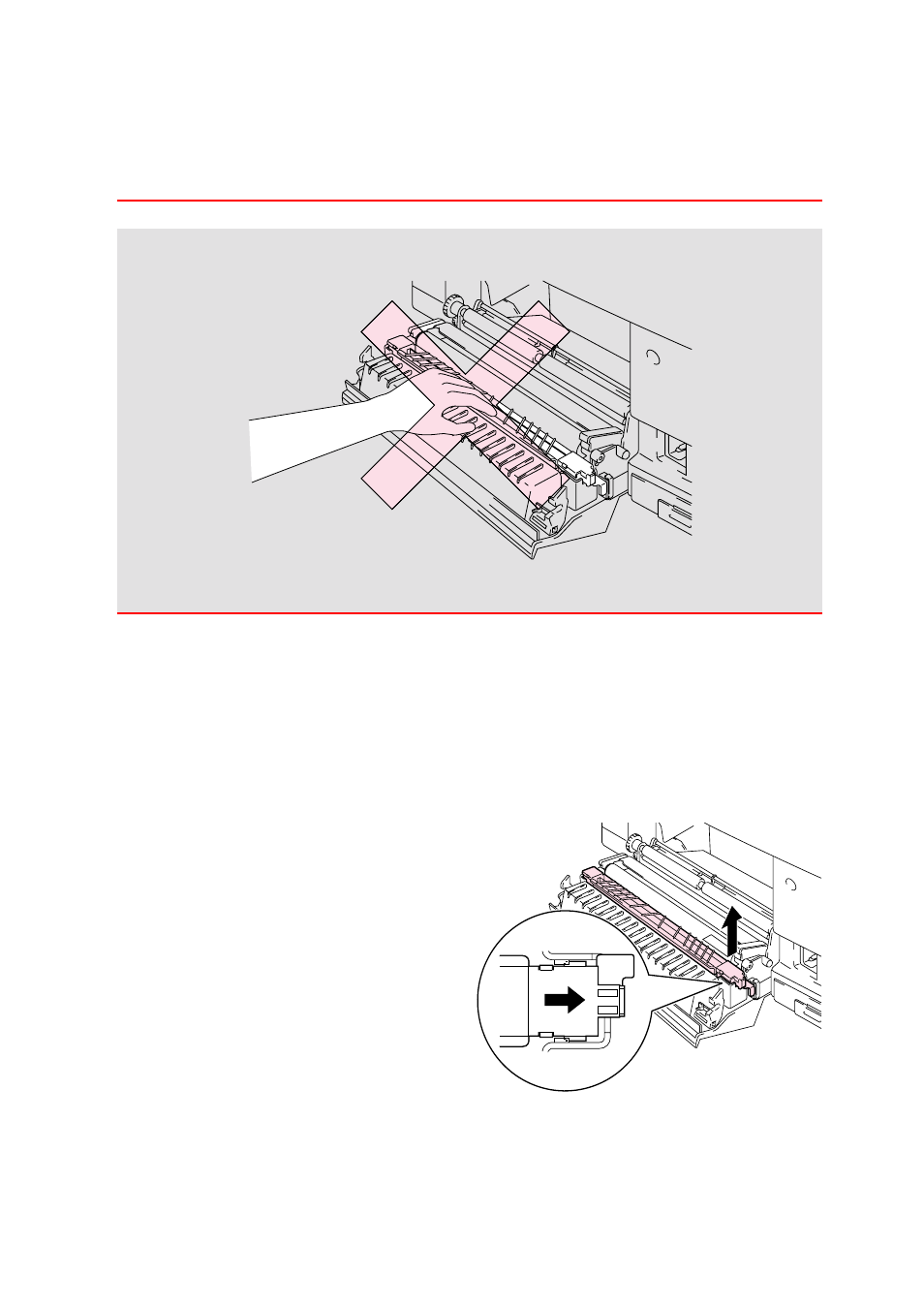

Paper Discharger
!
Caution
Do NOT touch the charging wire!
Fig. 5-24
Replacing the Paper Discharger
1.
Press the Power button to turn the printer Off, and then unplug the
printer.
2.
Open the Rear Access Cover.
3.
Remove the Paper Discharger
from the Transfer Unit by lightly
pressing it down and then sliding
it to the right to release it from
the catches. Hold the right hand
side of the Discharging Unit and
lift it up to remove it.
Fig. 5-25
