Knowing your Router
11 10
Knowing your Router
5. Internet LED
The Internet LED shows you when the Router is connected to the
Internet. When the LED is OFF, the Router is NOT connected to the
Internet. When the LED is solid GREEN, the Router is connected to
the Internet. When the LED is blinking, the Router is transmitting or
receiving data from the Internet.

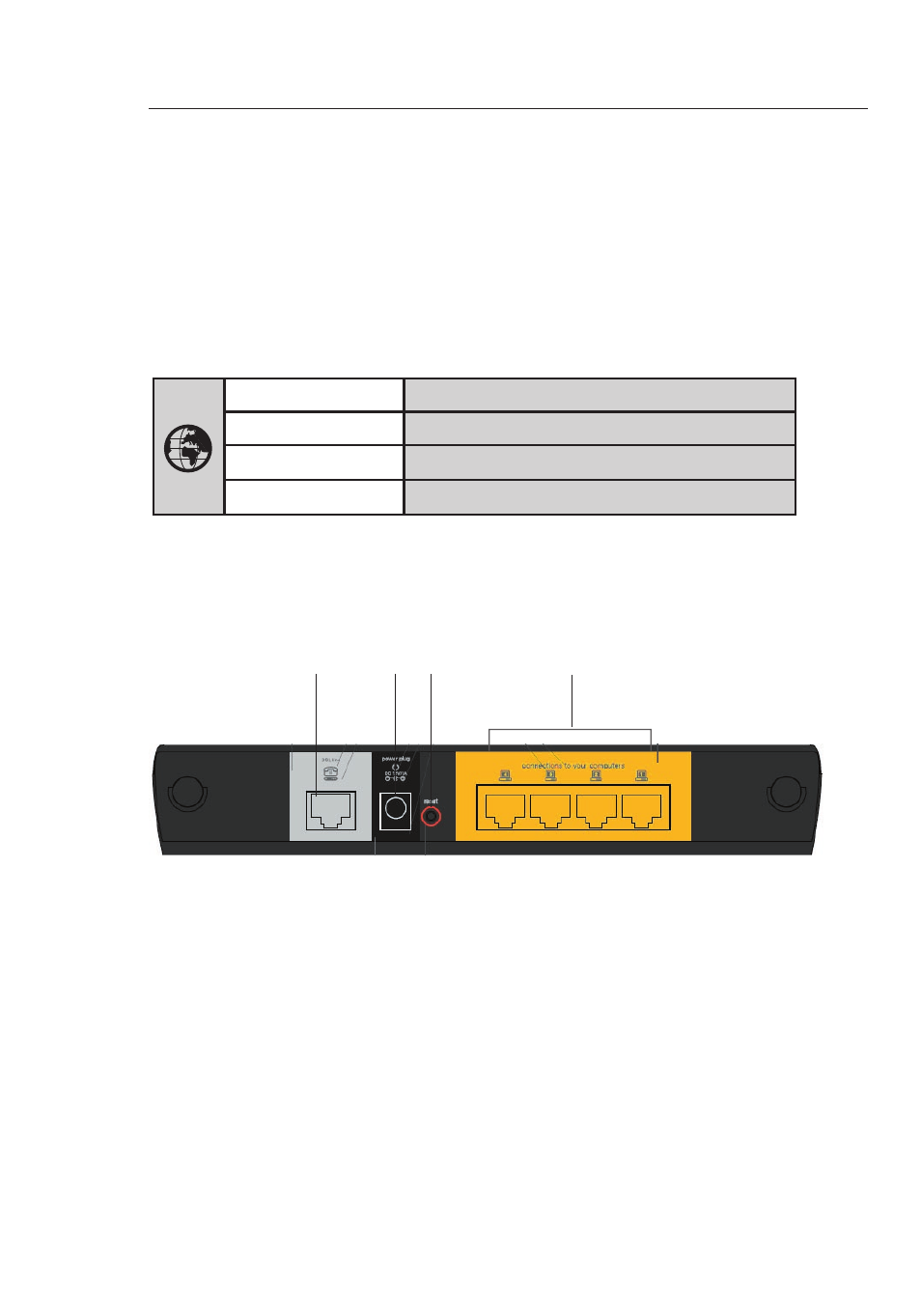

Back Panel
6. DSL Line
This port is for connection to your ADSL. Connect your ADSL to this
port.
7. Ethernet Ports
The Ethernet ports are RJ45, 10/100 auto-negotiation. The ports are
labeled 1 through 4. These ports correspond to the numbered LEDs on
the front of the Router. Connect your network-enabled computers or
any networking devices to one of these ports.
OFF No Internet connection
Green Connected to the Internet
Green - blinking Transmitting or receiving data
Red Failed to connect to the Internet
(7) (8) (9) (6)
