Using IQ Boiler Control Display
8. PROGRAM THE CONTROLS
Viewing the operating Mode options
In operating mode the user may view (but not
change) boiler operating status, settings and
troubleshooting information. To view IQ Boiler
Control display information:
1 . Press and release the “ I ” key on the IQ
Boiler Control to change from one parameter
to the next. Each setting will alternately flash
between the relevant display code and its
corresponding value.
Operating Mode Options
StA Status
bt Boiler Temperature
SP Operating Setpoint (Outdoor Reset)
HL High Limit Setting
HdF High Limit Differential
hr Heat Request Status
FLA Flame Current
rUn Run Time Hours
CYC Boiler Cycles
Err Error (see Error Numbers)
Status Code Displayed in STA Mode
1 Standby:
Either TT Open or TT Closed and Boiler Temperature
within Setpoint & Differential with circulator running.
4 Prepurge
6 Spark
7 Flame Proving
8 Running
10 Retry/Recycle Delay
13 Soft Lockout
14 Hard Lockout
15 Waiting for Limit to Close
16 Flame Present Out of Sequence
17 Self Test
18 Waiting for Damper to Open
19 Waiting for Damper to Close
20 Damper Failure to Open
21 Damper Failure to Close
For example, when the “ I ” key is pressed on the
IQ Boiler Control until “bt” is displayed, it will then
flash a three digit number (such as “180”) followed
by either “F” (or “C”). This indicates that the boiler
water temperature is 180°F. Other operating
parameters display the information in a similar
fashion.
8-a

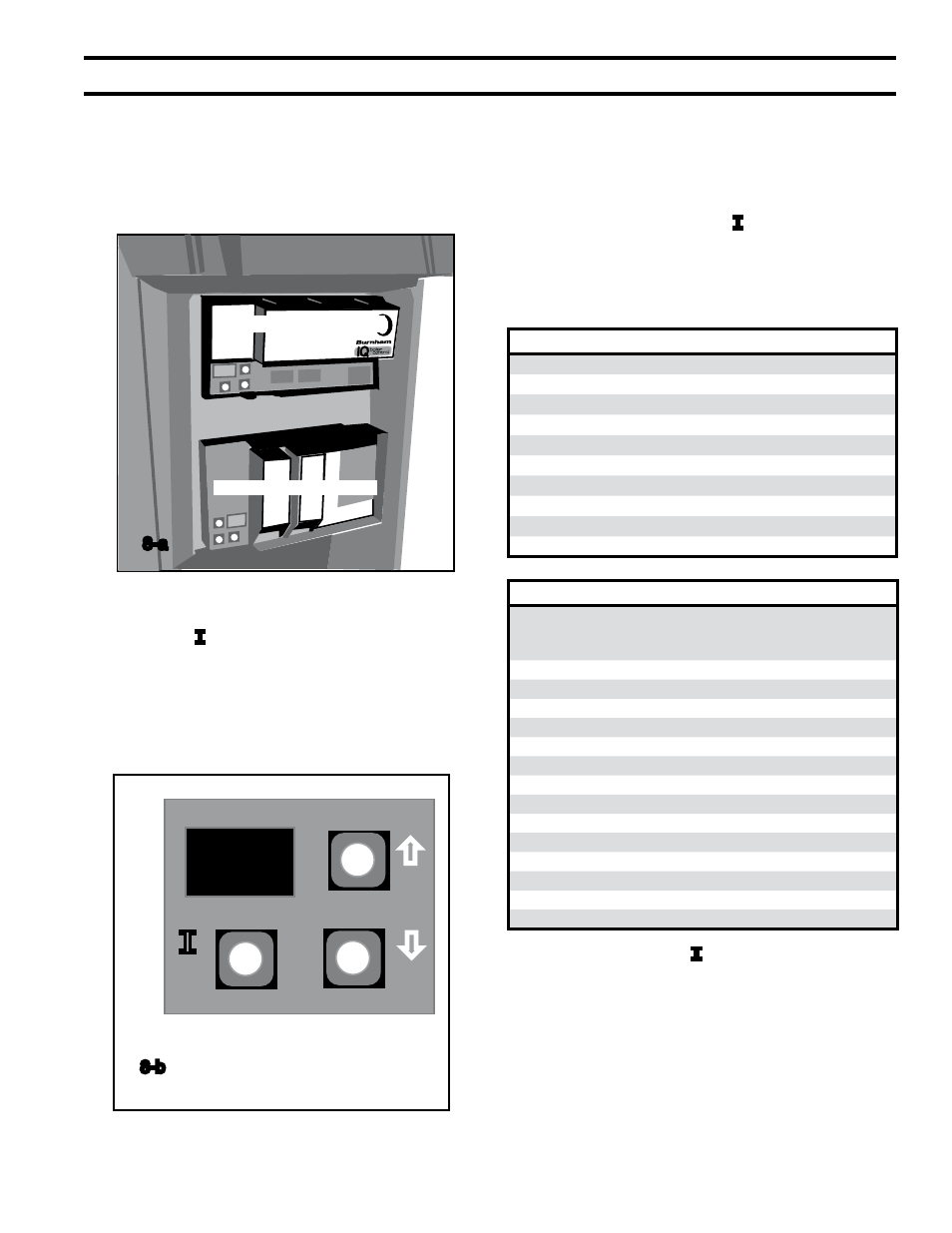

The IQ Boiler Control is located inside the boiler
front door, just above the IQ Option Panel (Figure
8-a).
The IQ Boiler Control display, along with Up ñ,
Down ò, and “ I ” keys may be used to view boiler
operating status (Figure 8-b). Please note that
these keys look similar to the keys on the IQ
Option Panel but are in a different orientation, and
they perform different functions.
1

8-b
с
т
I
IQ Boiler Control
IQ Boiler Control
IQ option Panel
