Flail head drive module – Bush Hog BOOM POWER RMB1445 User Manual
Page 34
BUSH HOG / LAND MAINTENANCE REPAIR PARTS MANUAL
91-1-28
OCTOBER, 2012

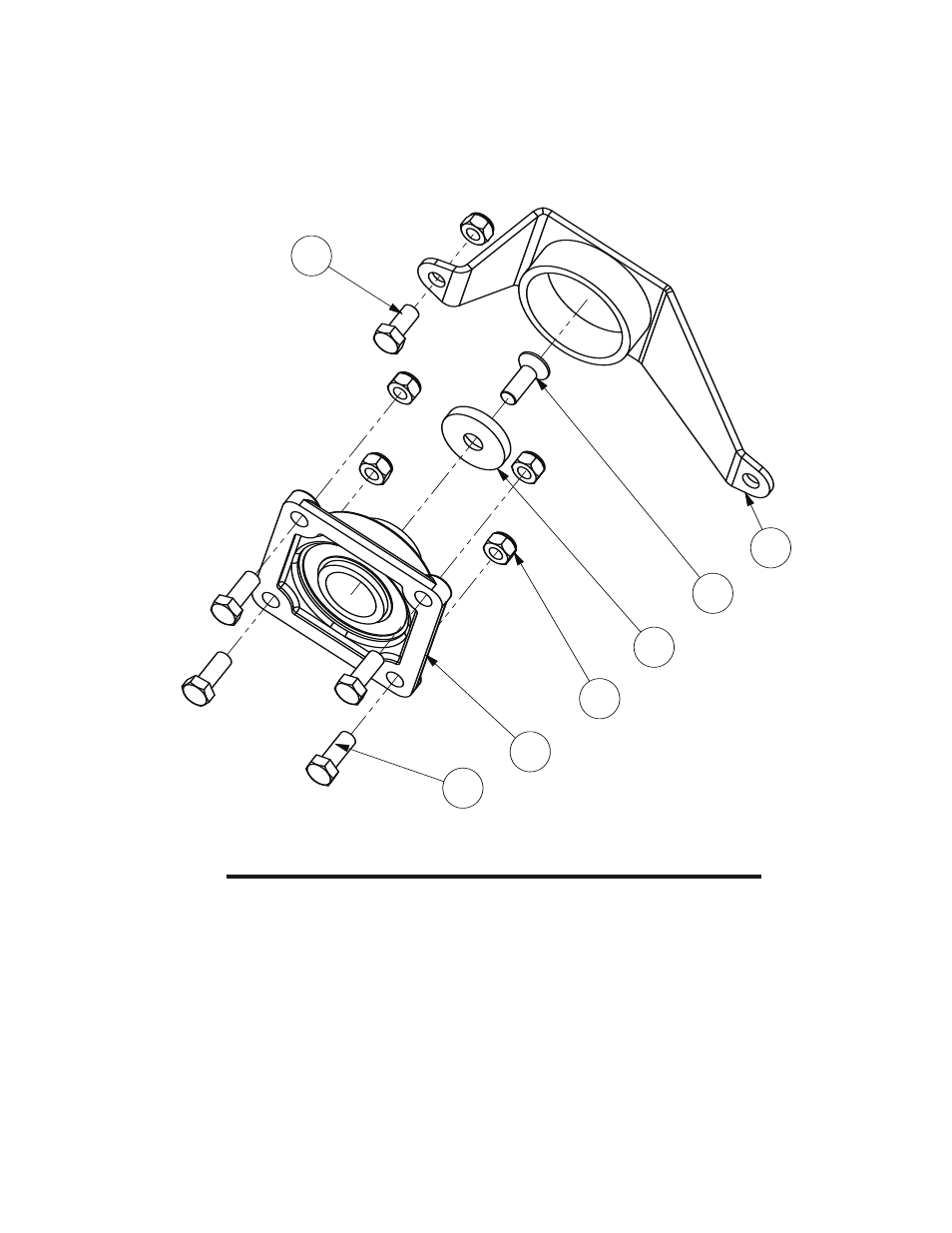

FLAIL HEAD DRIVE MODULE
3
2
4
6
5
1
7
REF.
PART
NO.
NO.
DESCRIPTION
QTY.
22498.09
FLAIL HEAD DRIVE MODULE
1
1
42496.01
BEARING COVER
1
2
03.008.01
BEARING ASSY. FLANGE 40MM BORE
1
3
9313066
BOLT M12 X 30
4
4
9163006
NUT M12 NYLOC
5
5
9393076
BOLT M12 X 35
1
6
42503.01
WASHER, SPECIAL
1
7
9313056
BOLT M12 X 25
1
