Page 10
BUSH HOG / LAND MAINTENANCE REPAIR PARTS MANUAL
91-1-4
OCTOBER, 2012

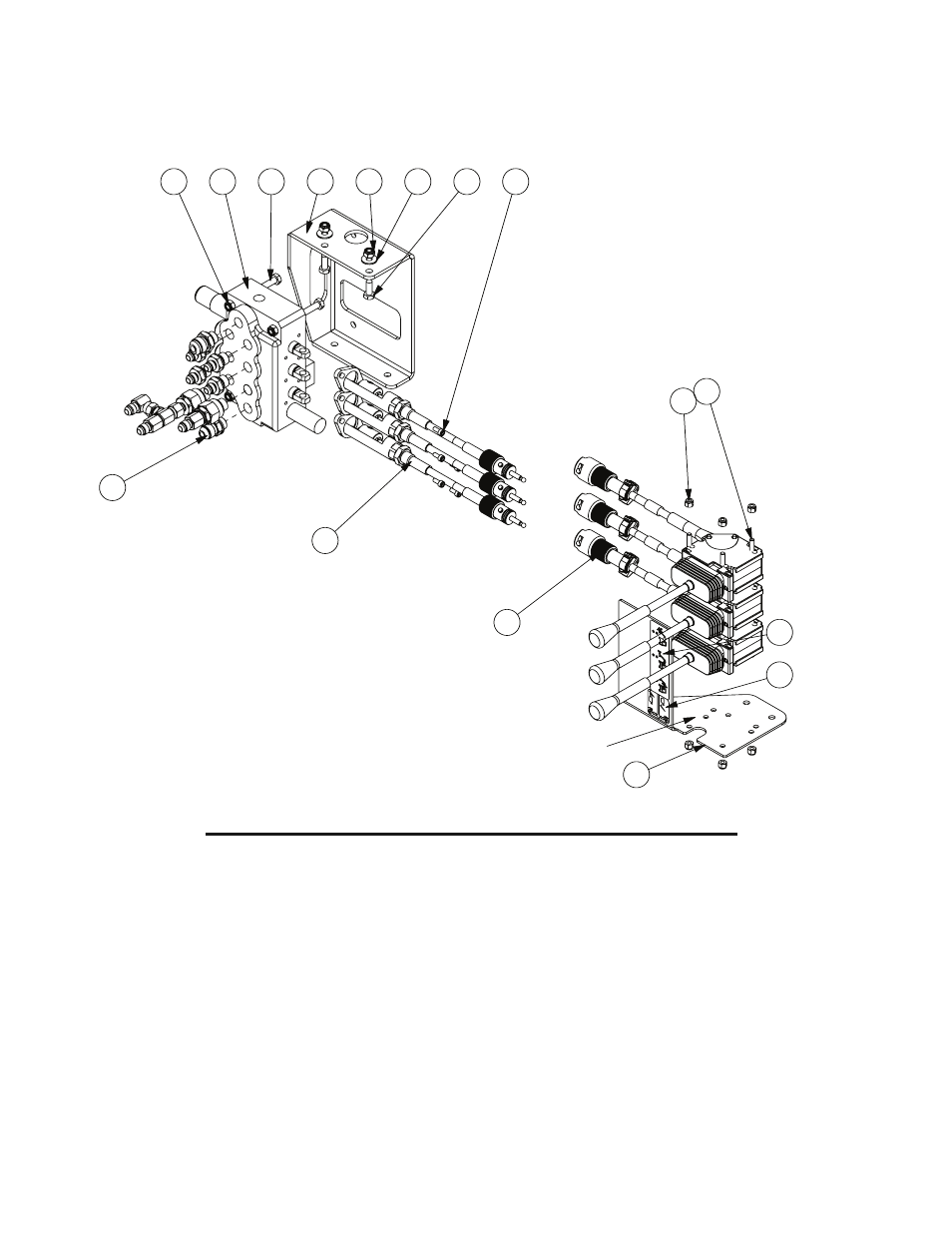

CONTROL VALVE ASSEMBLY W/ QUICK RELEASE CABLE
Used on Models RMB1445-1
10
15
7
2
8
91
11
9
13
12
6
3
4
5
LIFT
ANGLE
REACH
POSITION FOR RCV CABLE
LIFT
REACH
ANGLE
14
Ref.
Part
Description
Qty.
No.
No.
Req’d.
7434681
CABLE ACV ASSY C/W A.F JIC QR
1
8130616
VALVE 3 SPOOL 160 BAR
1
2
9163003
NYLOC NUT M6
6
3
1290368
DECAL - CABLE, REACH-ANGLE-LIFT
1
4
9343022
CAPSCREW M5x12
6
5
09.970.02
BRKT -4LVR MTG RH - 3MM PLT
1
6
1290338
DECAL - ROTOR CONTROL VALVE
1
7
04.282.70
STUD M6X191
3
8
9213134
BOLT M8x653
9
9
163004
NYLOC NUT M8
5
10
22524.92
ADAPTOR KIT PA3430 / PA4330 CABLE JIC
1
11
41196.58
CABLE VALVE MTG PLATE RH
1
12
9313044
SETSCREW M8x20
2
13
9100104
FLAT WASHER M8
2
14
8017090
QUICK RELEASE HEAD - ARMHEAD 0.4m
3
15
8017093
QUICK RELEASE CABLE ACV 3.1m
3
