Page 16
BUSH HOG / LAND MAINTENANCE REPAIR PARTS MANUAL
91-1-10
OCTOBER, 2012

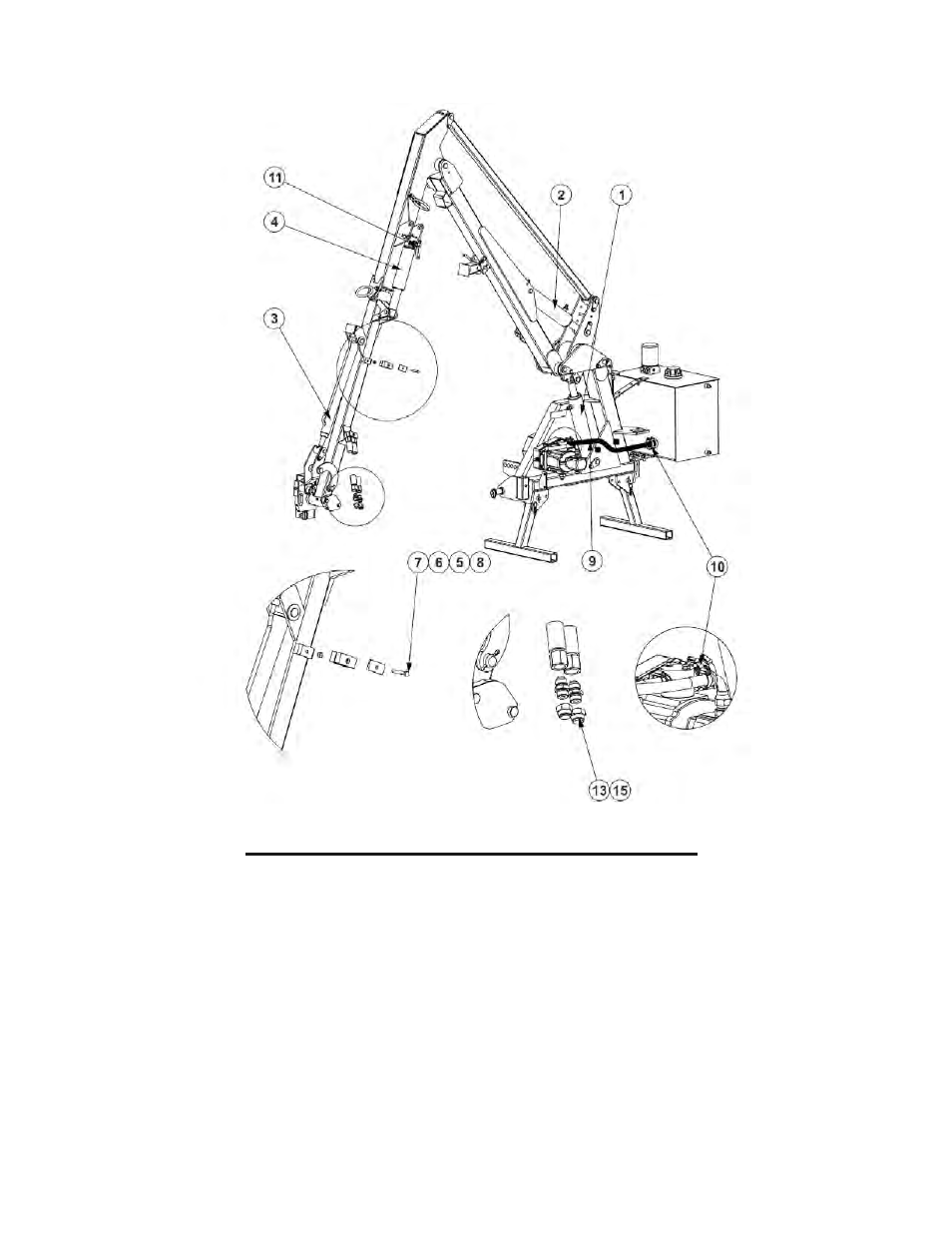

HYDRAULIC FITTINGS
REF. PART
NO.
NO.
DESCRIPTION
QTY.
1
41014.14
LIFT RAM ASSY JIC PA41
1
2
41014.15
REACH RAM ASSYJIC PA41
1
3
7442258
ANGLING RAM ASSY JIC
1
4
7198293
BREAK AWAY RAM ASSY JIC
1
5
06.430.09
CLAMP PLATE
4
6
06.418.03
CLAMP PLATE
4
7
9213114
CAPSCREW M8 X 55 (COARSE)
4
8
70093C
LOCKNUT M8 X 1.25 TOP LOCK
4
9
8501273
1-1/4" BORE SAE RUB HOSE
1
10
0904107
HOSE CLIPS 40-55 MM *BI*
4
11 05.835.11
ADAPTOR,SWIV 90-1/4 X 9/16” JIC
1
12
8650102
SEAL,1/4” BSP BONDED
3
13
8582054
1/2" BSP BLANKING CAP
2
14 00900913
SLEEVING 2.54” ID BLACK
1020
15
8581226
HYD ADP ST 1/2” BSP-MX7/8 JIC-M
3
