Chapter 4
4-21
4.6.3 ADAM-5069 power relay output module
The ADAM-5069 power relay output module provides 8 relay
channels of Form A. Switches can be used to control the relays.
Considered to user friendly, the ADAM-5069 also built with LED
indicator for status reading easily. And it also provides a choice to
clear or keep output status when reset by adjusting a jumper.
Specification
z
Number of Output Channel:
8 Form A
z
Contact Rating: AC:250V@5A
DC:30V@5A
z
Breakdown Voltage : 750 V
AC
(50/60 Hz)
z
Insulation Resistance: 1000MΩ@500V
DC
z
LED Indicator: On: Active
Off: Non-active
z
Power Consumption: 0.25W(typical) 2.2W(Max)
z
Isolation Resistance: 4000 V
RMS
z
Relay response Time: ON :5 ms
Off: 5.6 ms
z Clear or Keep Relay Status when reset (selectable by jumper)

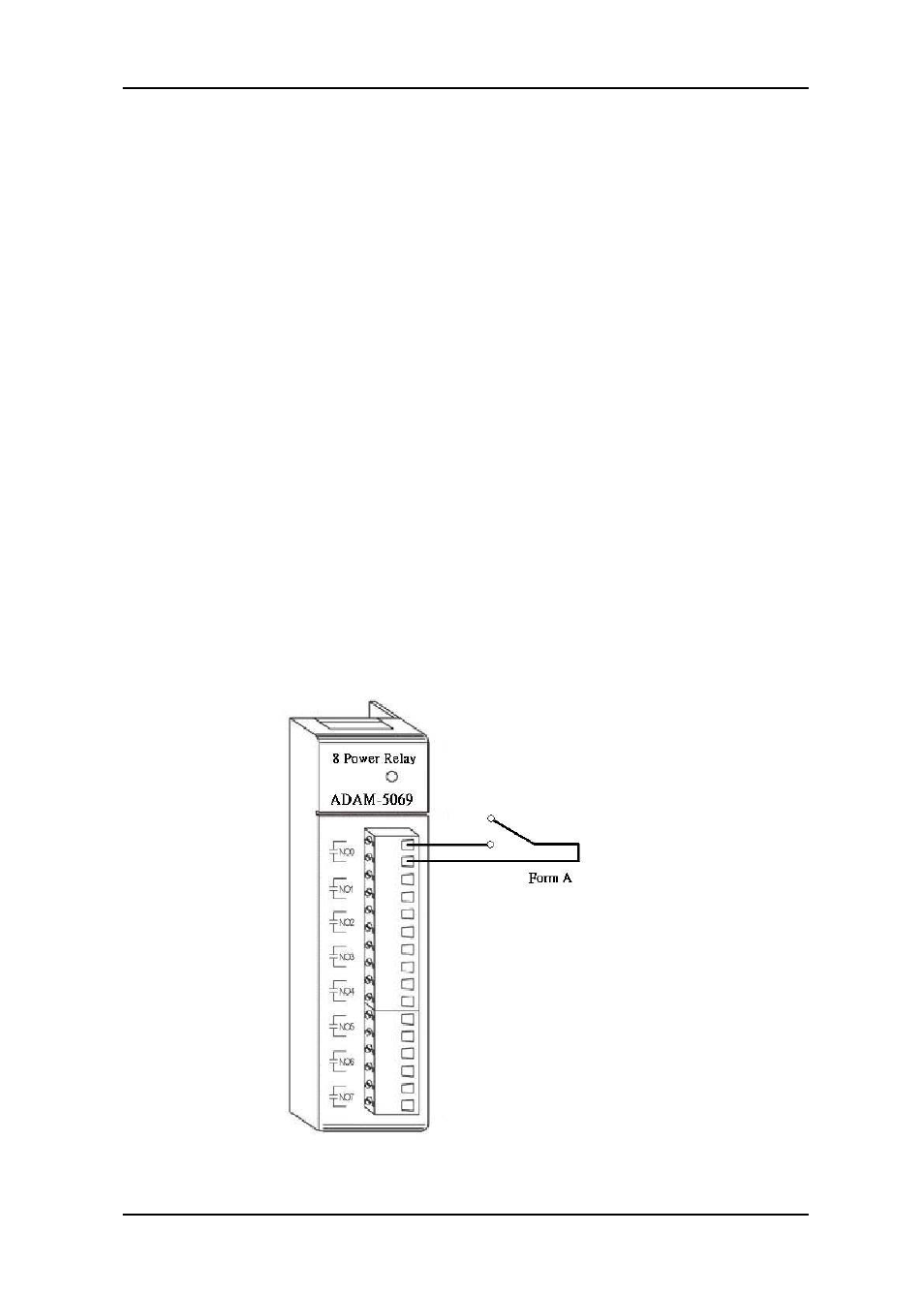

Figure 4-25: the wiring of ADAM-5069 module frontal view
