4.1 ADAM-5050 16-channel universal digital I/O module
The ADAM-5050 features sixteen digital input/output channels. Each
channel can be independently configured to be an input or an output
channel by the setting of its DIP switch. The digital outputs are open
collector transistor switches that can be controlled from the ADAM-5000.
The switches can also be used to control solid-state relays, which in turn can
control heaters, pumps and power equipment. The ADAM-5000 can use the
module’s digital inputs to determine the state of limit or safety switches, or to
receive remote digital signals.
Warning! A channel may be destroyed if it is subjected
to an input signal while it is configured to be
an output channel.

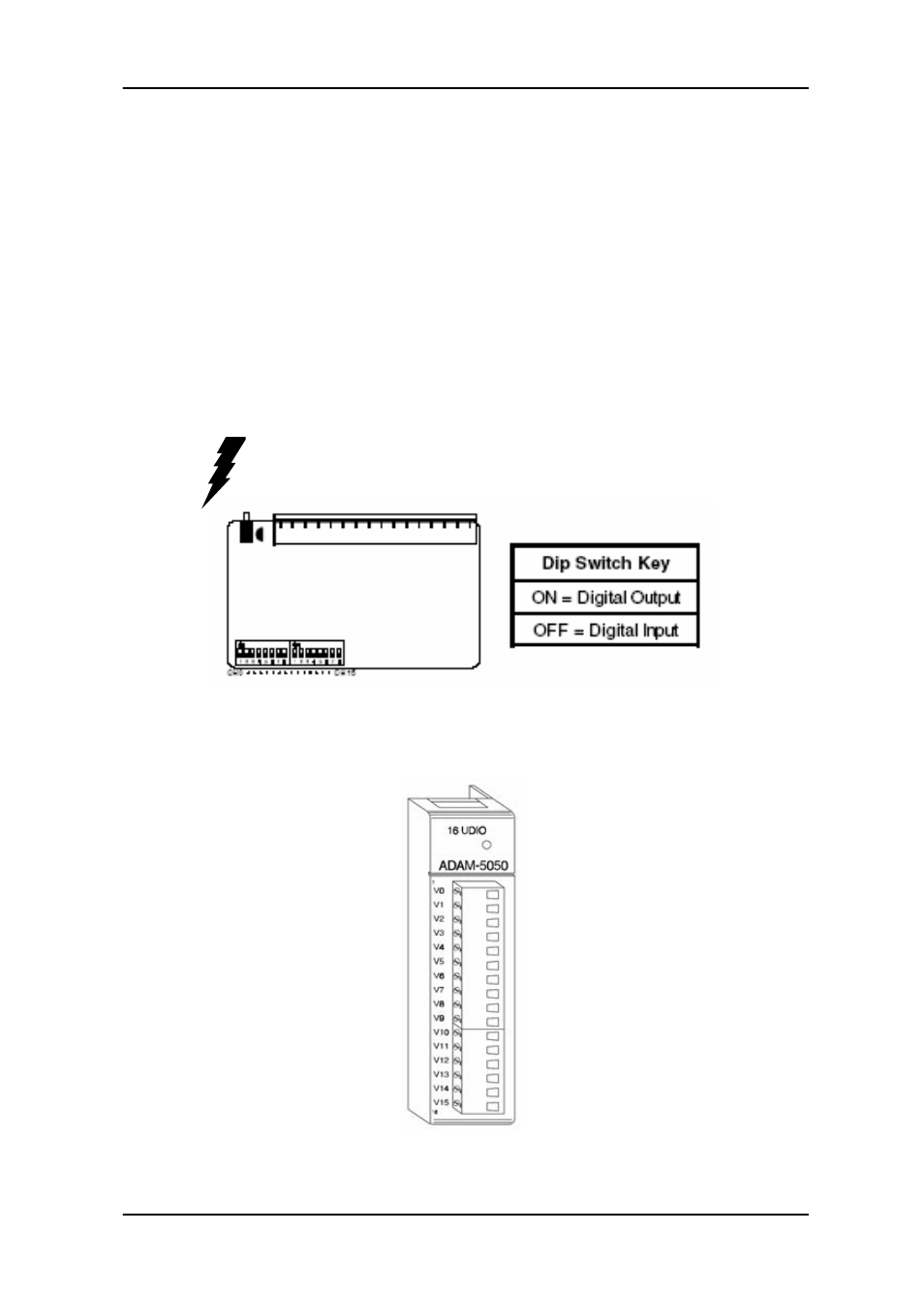

Figure 4-1: Dip switch setting for digital I/O channel
Figure 4-2: ADAM-5050 module frontal view
