4.3 ADAM-5052 8-channel isolated digital input module
The ADAM-5052 provides eight fully independent isolated channels.
All have 5000 V
RMS
isolation to prevent ground loop effects and to pre- vent
damage from power surges on the input lines.
Figure 4-11: ADAM-5052 module frontal view
Application wiring

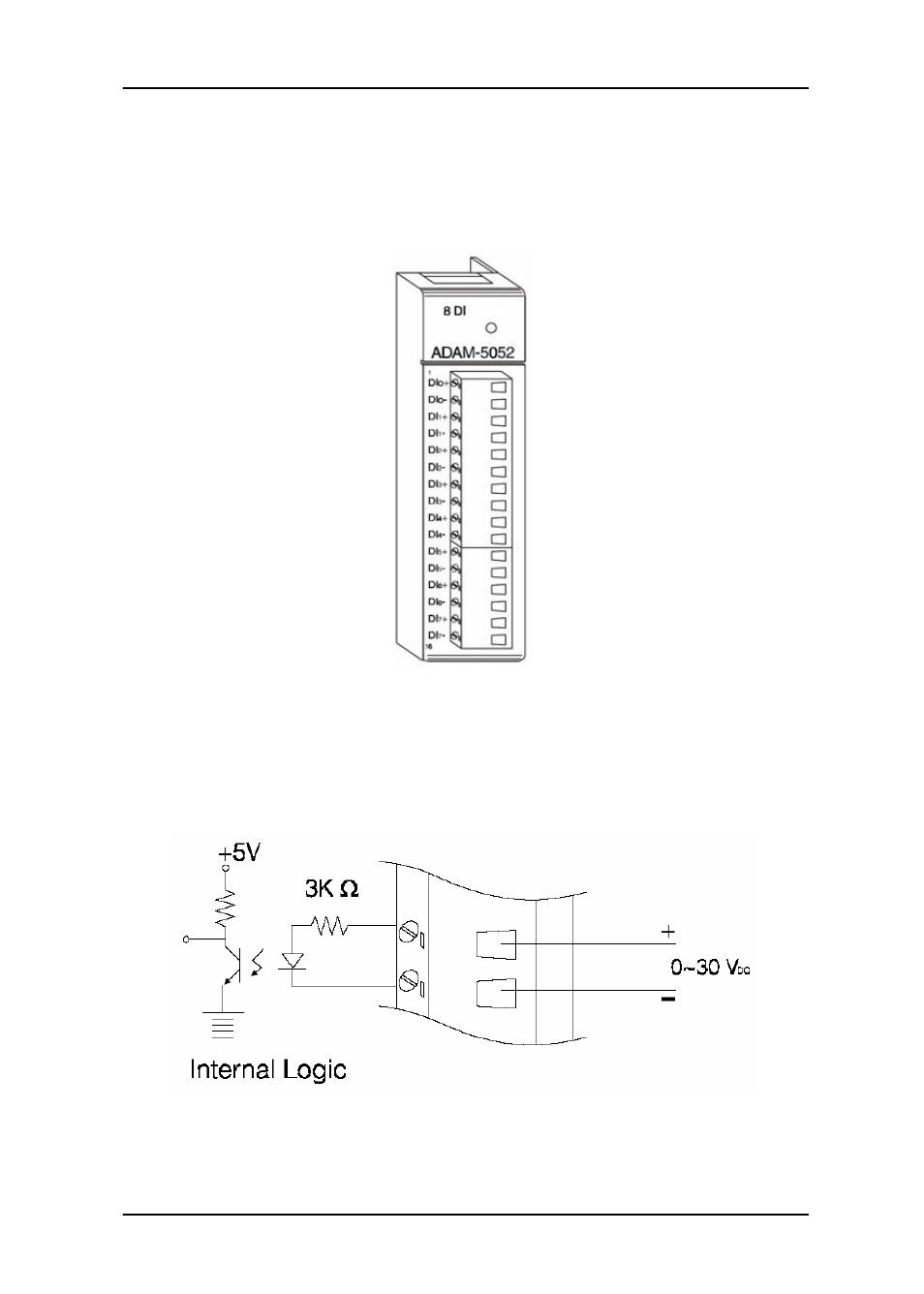

Figure 4-12: Isolation digital input (ADAM-5052)
