Analog Input module
4-14 ADAM 5000 IO modules User’s Manual
Technical specifications of ADAM-5056
There are 16-point digital input and 16-point digital output modules in
the ADAM-5000 series. The addition of these solid state digital I/O
devices allows these modules to control or monitor the interfaces between
high power DC or AC lines and TTL logic signals. A command from the
host converts these signals into logic levels suitable for the solid-state I/O
devices.
Points
16
Digital output
Open collector to 30 V 100 mA
max load
Power dissipation
450 mW
Power consumption
0.25 W
Table 4-6: Technical specifications of ADAM-5056
4.5.2 ADAM-5056S 16-channel Isolated Digital Output Module
with LED
The ADAM-5056S provides 16 isolated digital output channels for
critical environments need individual channel isolating protection. Different
from other ADAM-5000 I/O modules, ADAM-5056S designed with 21 pins
plug terminal.

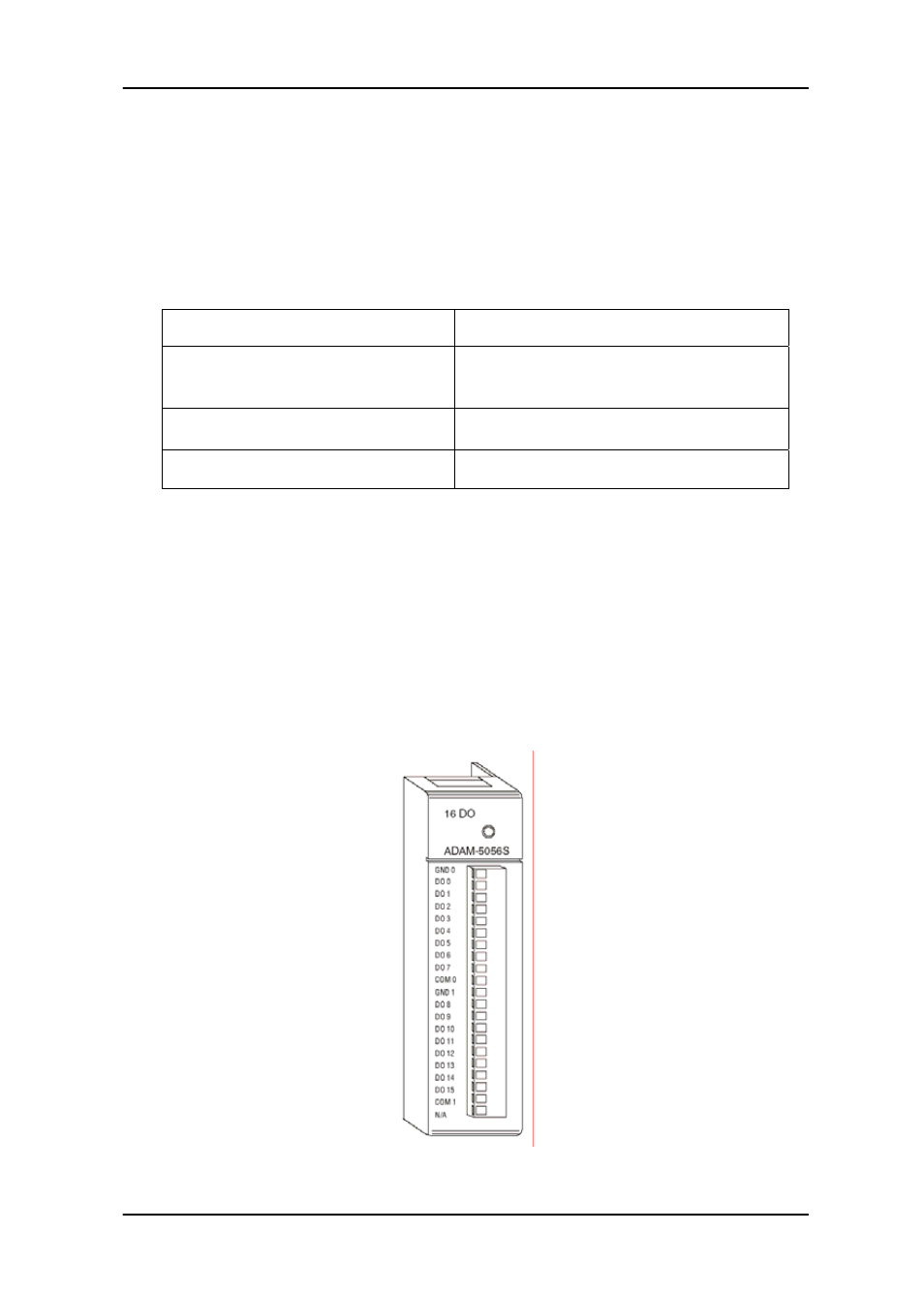

Figure 4-17: ADAM-5056S module front view
