Application wiring

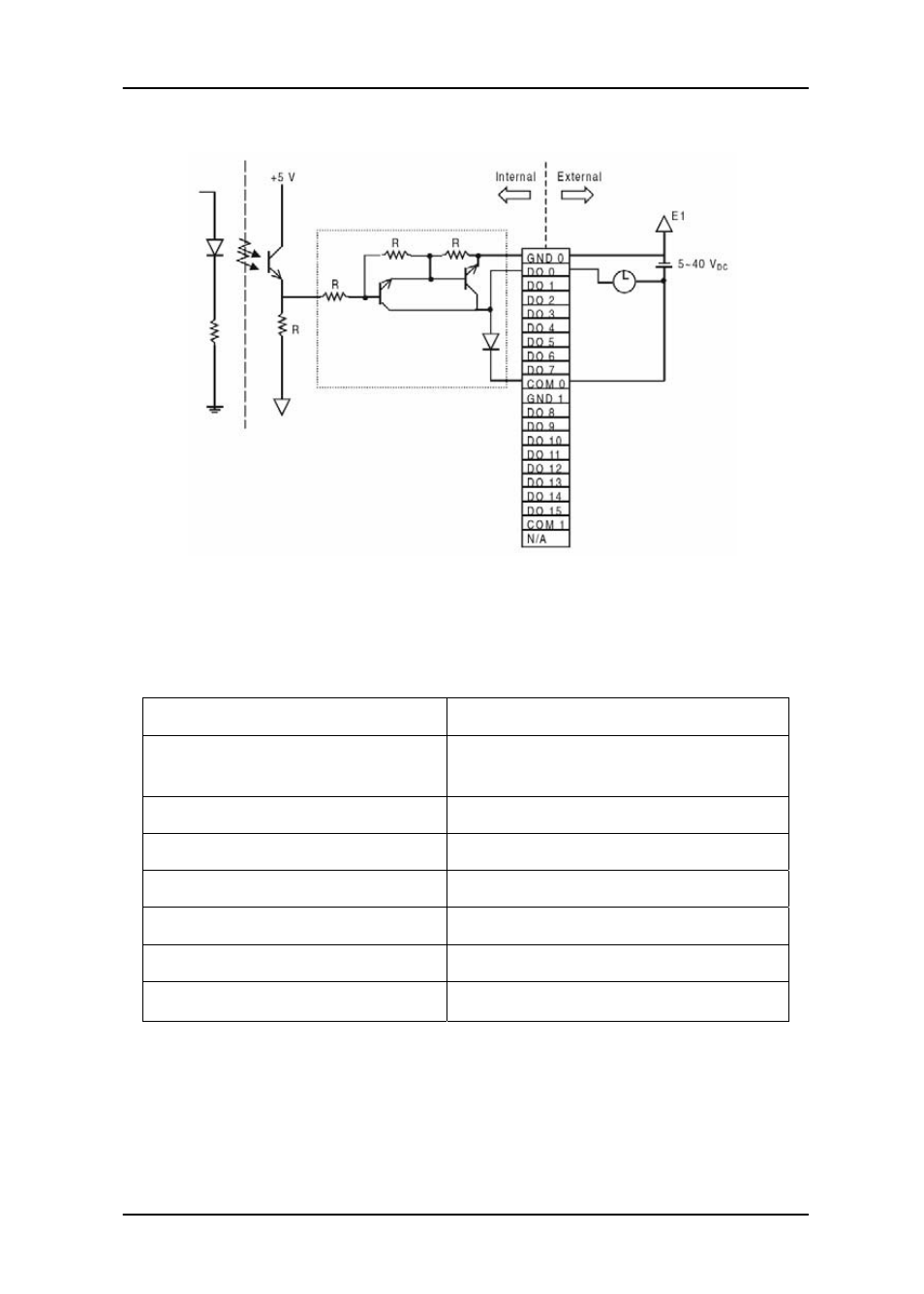

Figure 4-18: ADAM-5056S module wiring diagram
Points
16(8-channel/group)
Digital Output
Open collector to 40 V 200 mA
max load per channel
Optical Isolation 2500 V
DC
Opto-isolator response time
25 µs
Supply Voltage 5 ~ 40 V
DC
Power consumption
0.6 W
LED Indicator
On when active
I/O Connector Type
21-pin plug-terminal
Table 4-7: Technical specification of ADAM-5055S
