Analog Input module
2-6 ADAM 5000 IO modules User’s Manual

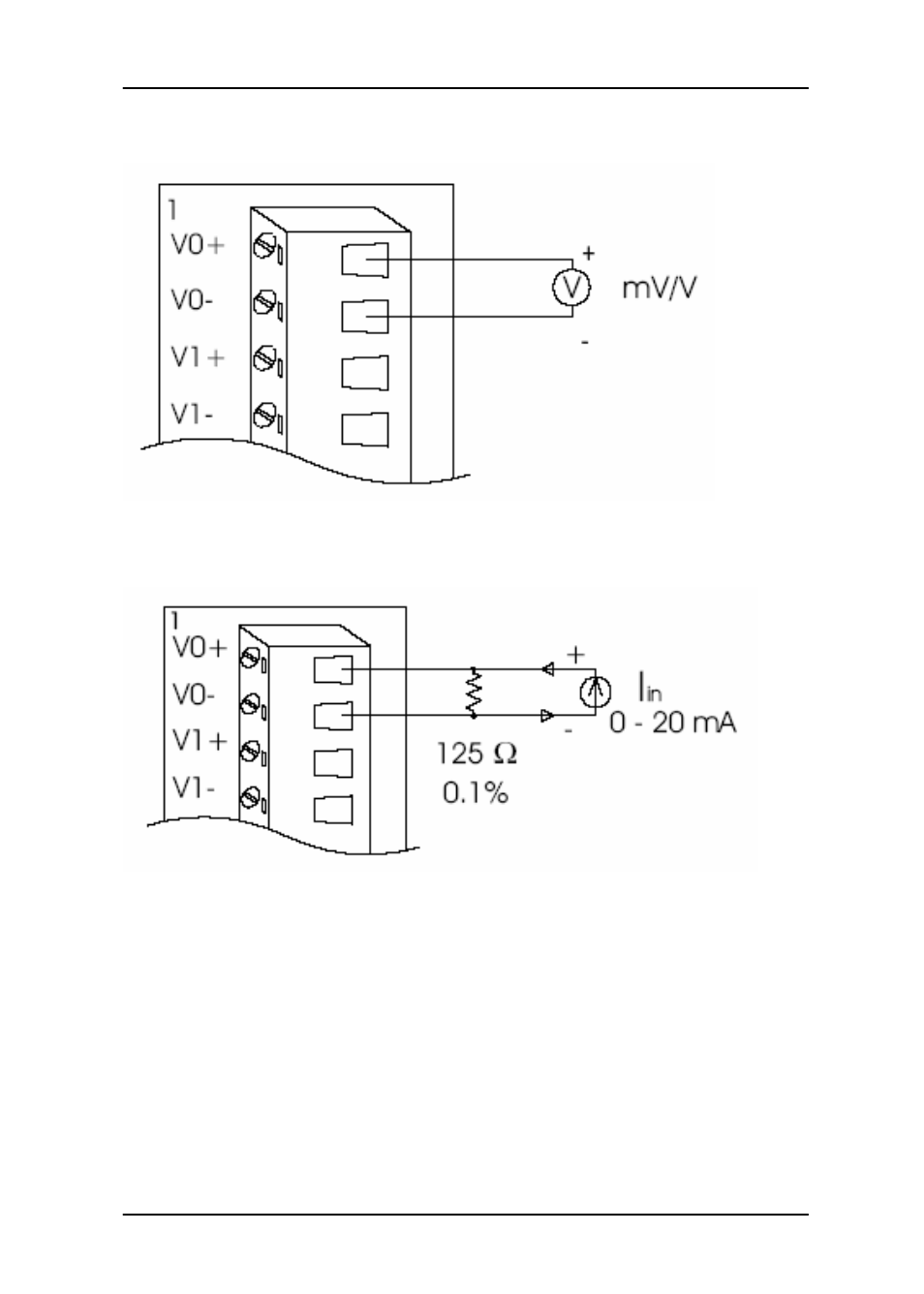

Application wiring
Figure2-4: Millivolt and volt input
Figure 2-5: Process current input
Note: To keep measurement accuracy please short the channels that
are not in use.
