Application wiring

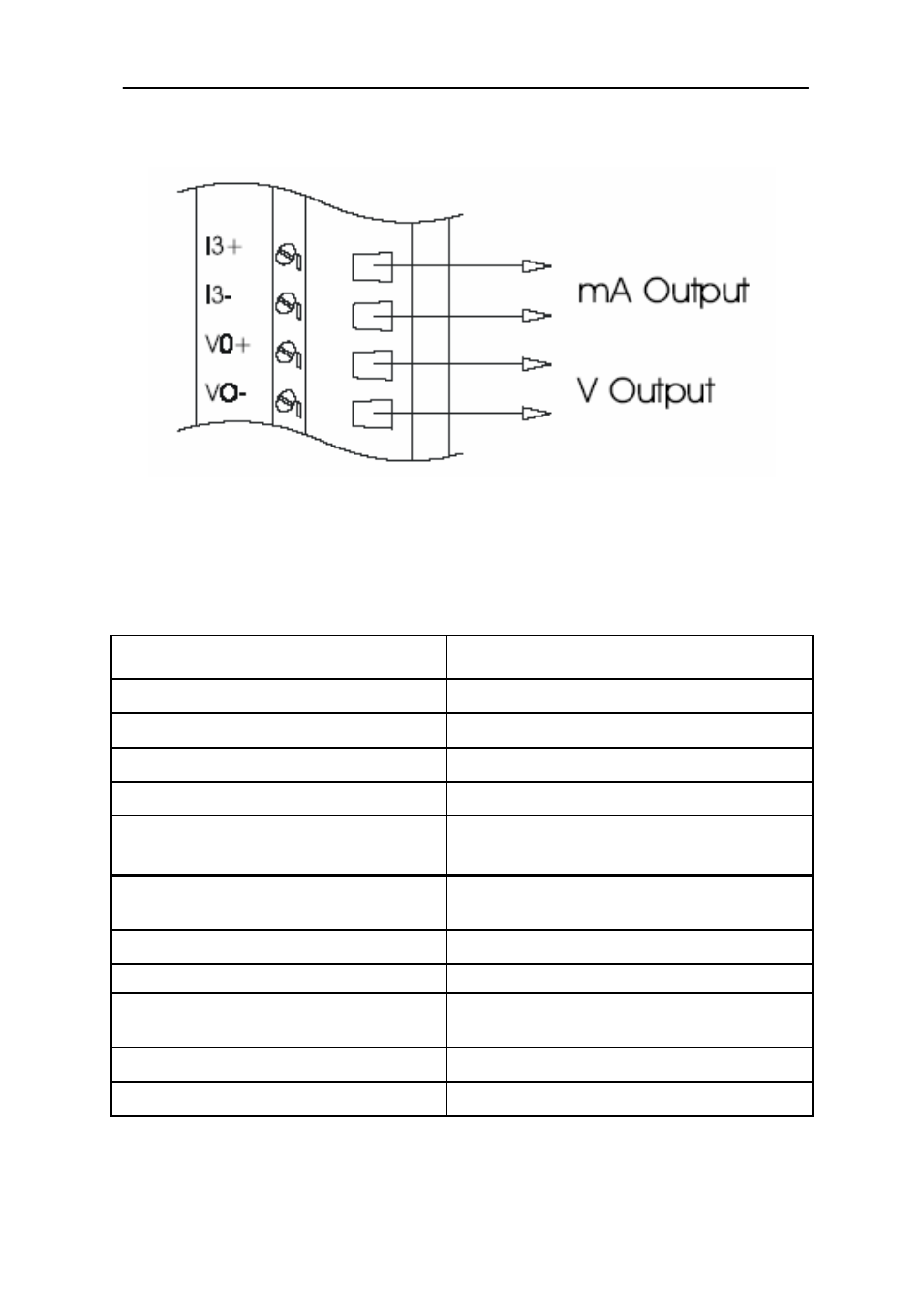

Figure 3-2: Analog output
Technical specifications of ADAM-5024
Analog Output Channels Four
Output Type V, mA
Output Range 0-20mA, 4-20mA, 0-10V
Isolation Voltage 3000 Vdc
Output Impedance 0.5 Ohms
Accuracy
±0.1% of FSR for current output ±0.2% of FSR
for voltage output
Zero Drift
Voltage output: ±30 µV/ºC Current output: ±0.2
µA/ºC
Resolution ±0.015% of FSR
Span Temperature Coefficient ±25 PPM/ºC
Programmable Output Slope 0.125-128.0 mA/sec 0.0625-64.0 V/sec
Current Load Resistor 0-500 Ohms (source)
Power Consumption 2.5W (Max.)
Table 3-1: Technical specifications of ADAM-5024
