Connectors, Antenna – Nokia 6800 User Manual
Page 15
8
Copyright © Nokia 2003

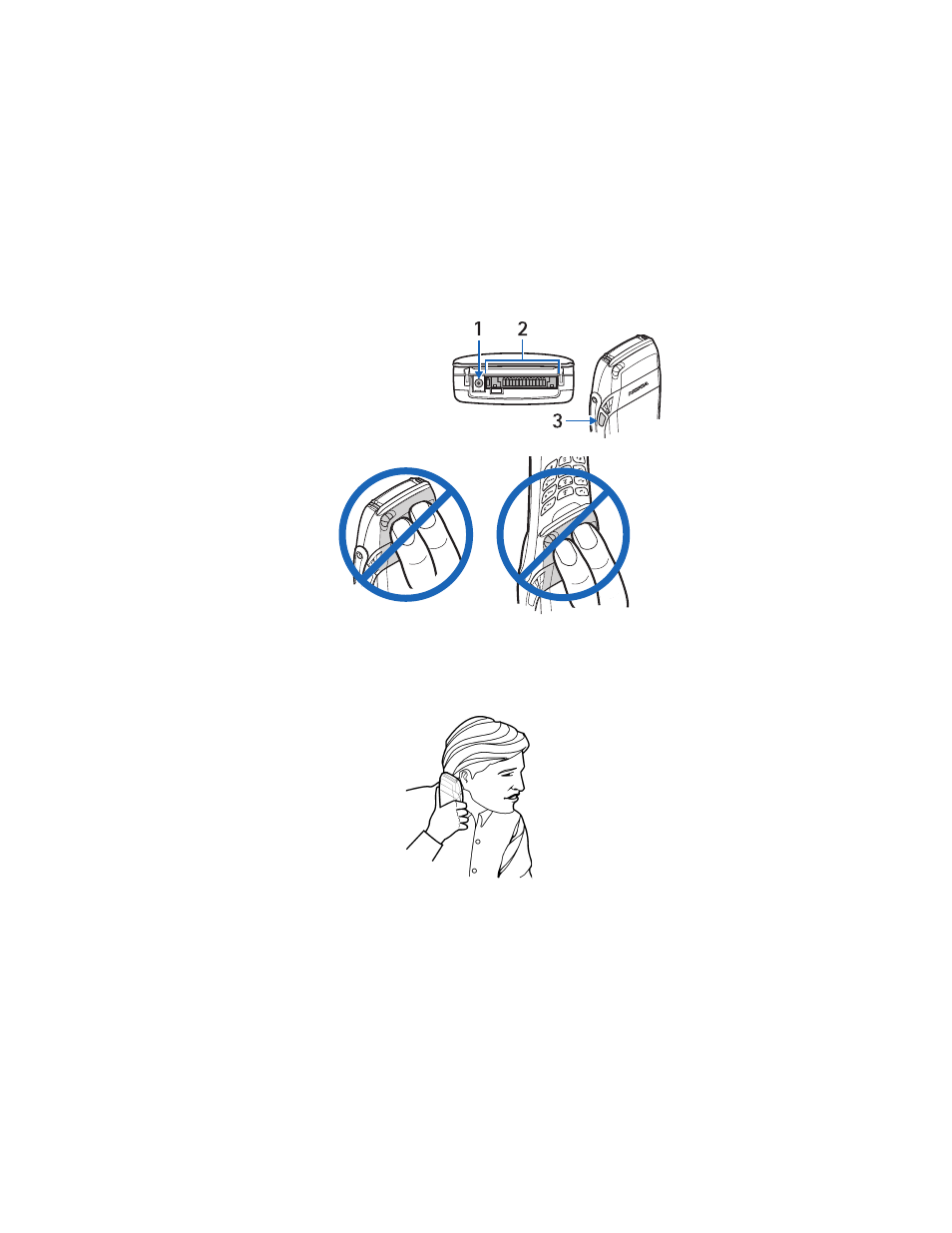

Connectors
1
Charger connector
2
Pop-port
TM
connector
3
IR window
Antenna
Your phone has a built-in antenna. As with any other radio transmitting device,
avoid touching the antenna while the phone is powered up. Contact with the
antenna affects call quality and may cause the phone to operate at a higher power
level than necessary.
Hold the phone as shown below, with the antenna area pointed up.
Flip
closed
Flip
open
