Backside

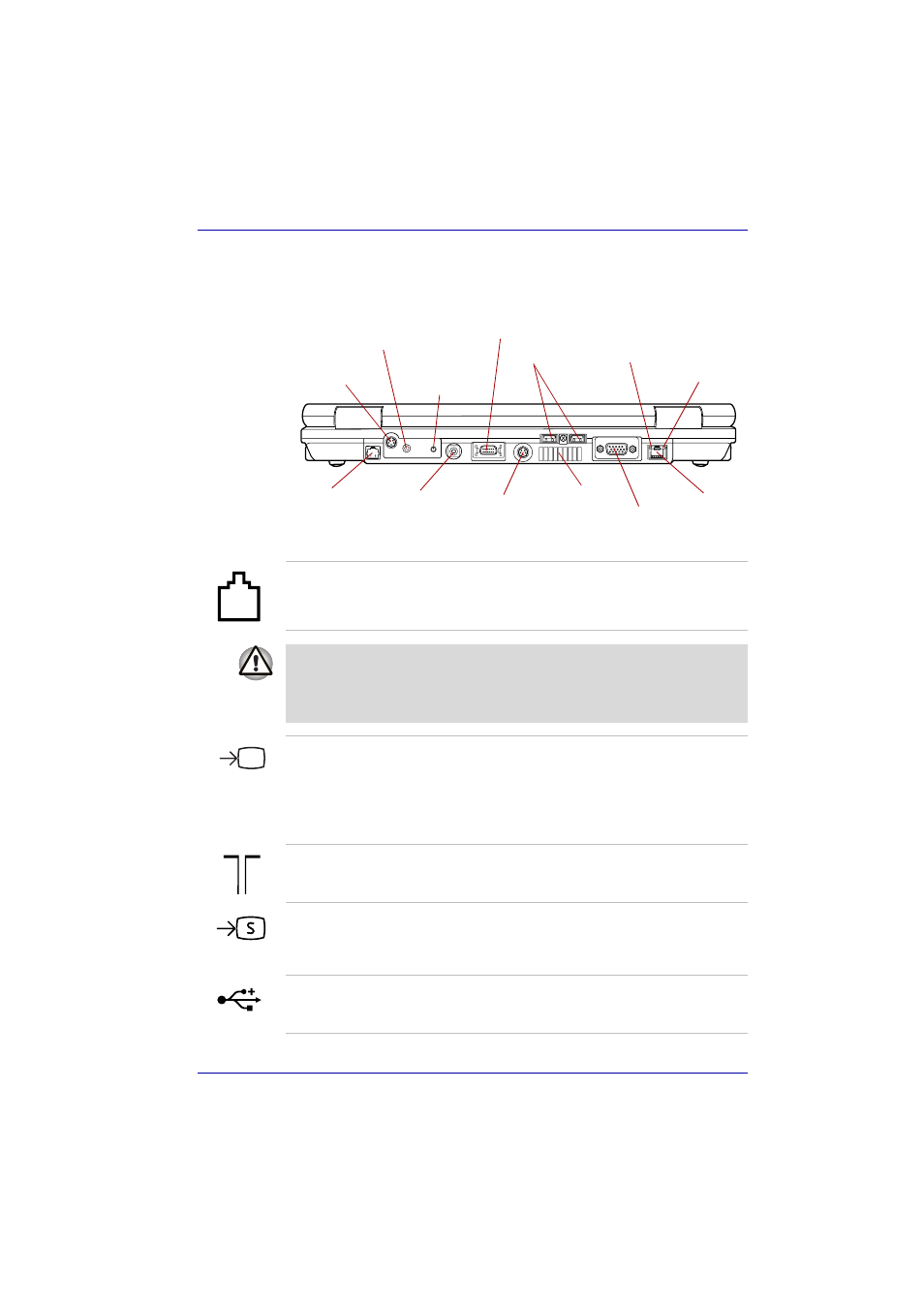

The following figure shows the computer’s backside.
The backside of the computer
USB ports
External monitor port
TV antenna port
(Provided with
some models)
LAN jack
D-Video out port
Monitor-in port
S-Video-in port
Modem jack DC IN 15V jack
LAN active
indicator (orange)
Link indicator
(green)
S-Video out port
Cooling vents
Modem jack The modem jack lets you use a modular cable to
connect the modem directly to a telephone line.
■ In case of a lightning storm, unplug the modular cable from the
telephone jack.
■
Do not connect the modem to a digital telephone line. A digital line will
damage the modem.
Monitor-in port Used for displaying video from your digital
camcorder or video recorder on the internal LCD.
This port can be used also as line-in port and
enables connection of a stereo device for audio
input. Refer to the
Monitor-in section in
Chapter 9, Optional Devices.
TV antenna port TV antenna port is provided with some models.
Connect the antenna adaptor to this port to watch
TV programs on your computer or record them.
S-Video-in port A camcorder or other recording device can be
connected to your computer via the S-Video-in
cable for importing video data. Refer to the
S-
Video-in section in Chapter 9, Optional Devices.
Universal
Serial Bus
(USB 2.0) ports Two Universal Serial Bus ports are on the
backside. Refer to
Left side section, for details.
