User’s Manual 4-13
Operating Basics
Connecting the LAN cable
3. Plug the other end of the cable into a LAN hub connector or router.
Check with your LAN administrator and hardware or software vendor
before using or configuring a network connection.
Disconnecting the LAN cable
To disconnect the LAN cable, follow the steps as detailed below:
1. Pinch the lever on the connector in the computer’s LAN jack and pull
out the connector.
2. Disconnect the cable from the LAN hub or router in the same manner.
Check with your LAN administrator and hardware or software vendor
before disconnecting from the hub.

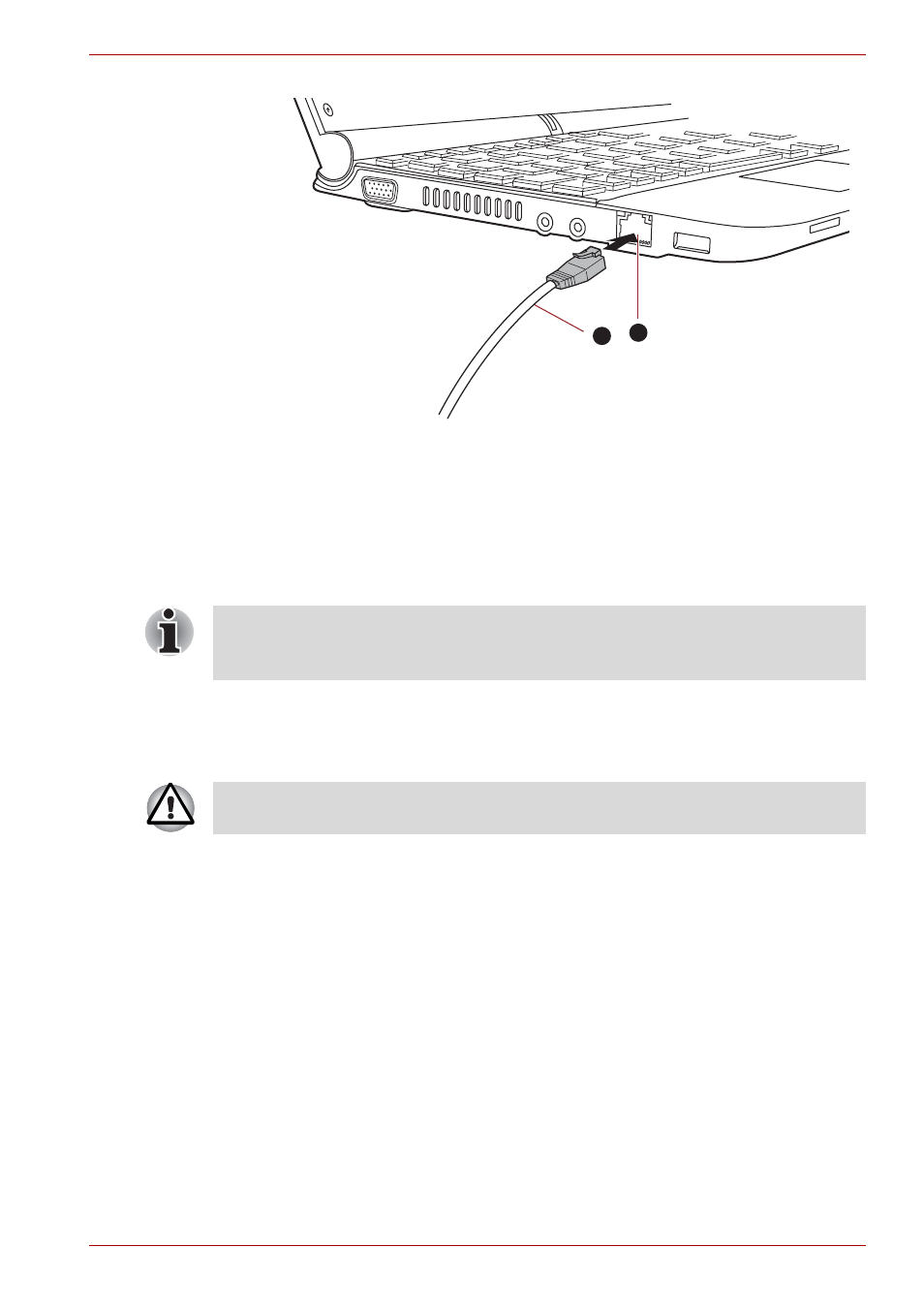

1. LAN jack 2. LAN cable
1 2
When the computer is exchanging data with the LAN, the LAN Active
indicator glows amber. When the computer is connected to a LAN properly
and is available to exchange data, the Link indicator glows green.
Make sure the LAN Active indicator (amber LED) is out before you
disconnect the computer from the LAN.
