Connecting your equipment
13
En
English
Français
Italiano
Español
Nederlands
Deutsch

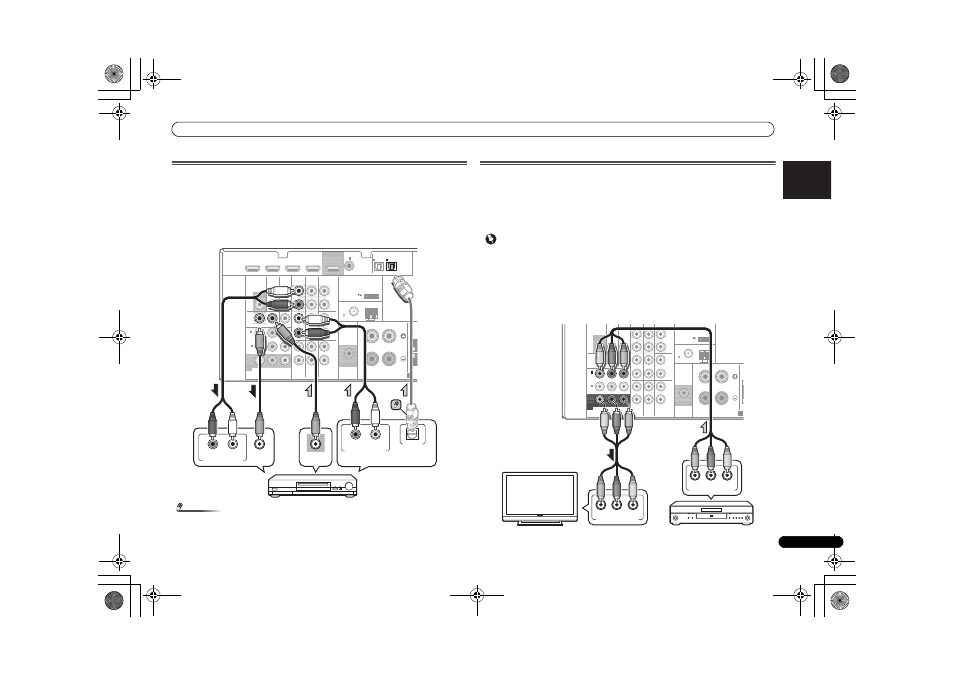

Connecting an HDD/DVD recorder, Blu-ray Disc recorder and other
video sources
This receiver has audio/video inputs and outputs suitable for connecting analog or digital
video recorders, including HDD/DVD recorders and Blu-ray Disc recorders.
• Only the signals that are input to the VIDEO IN terminal can be output from the VIDEO OUT
terminal.
• Audio signals that are input through the digital terminal will not be output from the analog
terminal.
Note
• In order to listen to the audio from the source component that is connected to this receiver
using an optical cable, first, switch to the
DVR/BDR input, then press SIGNAL SEL to
choose the audio signal
O2 (OPTICAL2).
Using the component video jacks
Component video should deliver superior picture quality when compared to composite video.
A further advantage (if your source and TV are both compatible) is progressive-scan video,
which delivers a very stable, flicker-free picture. See the manuals that came with your TV and
source component to check whether they are compatible with progressive-scan video.
• For the audio connection, refer to Connecting your component with no HDMI terminal on
page 12.
Important
• If you connect any source component to the receiver using a component video input, you
must also have your TV connected to this receiver’s
COMPONENT VIDEO MONITOR OUT
jacks.
• If necessary, assign the component video inputs to the input source you’ve connected.
This only needs to be done if you didn’t connect according to the following defaults:
-
COMPONENT VIDEO IN 1: DVD
-
COMPONENT VIDEO IN 2: DVR/BDR
See The Input Assign menu on Operating Instructions in CD-ROM for more on this.
HDMI
VIDEO
COMPONENT VIDEO
DVR/
BDR
L
R
R
L
Y
P
B
P
R
COAXIAL
AUDIO
PRE OUT
SPEAKERS
ANTENNA
OPTICAL
ASSIGNABLE
ASSIGNABLE
ASSIGNABLE
OUT
A
DVR/BDR
OUT
CD-R/TAPE
SURR BACK/
FRONT HEIGHT
L
R
PRE OUT
(Single)
IN
(
CD
)
1
SUBWOOFER
IN
IN
CD
MONITOR
OUT
TV/SAT
IN
BD
IN
OUT
IN
DVD IN
IN
TV/SAT
BD
IN
DVD
(
DVD
)
IN
1
MONITOR
OUT
(
DVR/
BDR
)
IN
2
DVR/BDR IN
DVD IN
BD IN
VIDEO IN
(
TV/SAT
)
IN
1
(
CD-R/TAPE
)
IN
2
FM
UNBAL
75
(
OUTPUT 5 V
0.1 A MAX
)
ADAPTER PORT
AM LOOP
FRONT
R
L
CENT
R
L
DIGITAL AUDIO OUT
ANALOG AUDIO OUT
R
L
ANALOG AUDIO IN
OPTICAL
VIDEO IN
VIDEO OUT
Select one
HDD/DVD recorder, Blu-ray
Disc recorder, etc.
COMPONENT VIDEO
DVR/
BDR
L
R
R
L
Y
P
B
P
R
PRE OUT
SPEAKERS
ANTENNA
ASSIGNABLE
A
DVR/BDR
OUT
CD-R/TAPE FRONT HEIGHT
L
R
PRE OUT
(Single)
SUBWOOFER
IN
IN
CD
MONITOR
OUT
TV/SAT
IN
BD
IN
OUT
IN
DVD IN
IN
TV/SAT
BD
IN
DVD
(
DVD
)
IN
1
MONITOR
OUT
(
DVR/
BDR
)
IN
2
FM
UNBAL
75
(
OUTPUT 5 V
0.1 A MAX
)
ADAPTER PORT
AM LOOP
FRONT
R
L
C
Y
P
B
P
R
COMPONENT VIDEO IN
Y
P
B
P
R
COMPONENT VIDEO OUT
DVD player
TV
