Connecting up 02
37
En
English
Deutsch
Italiano
Español
Français
Nederlands
Connecting your component with no HDMI terminal

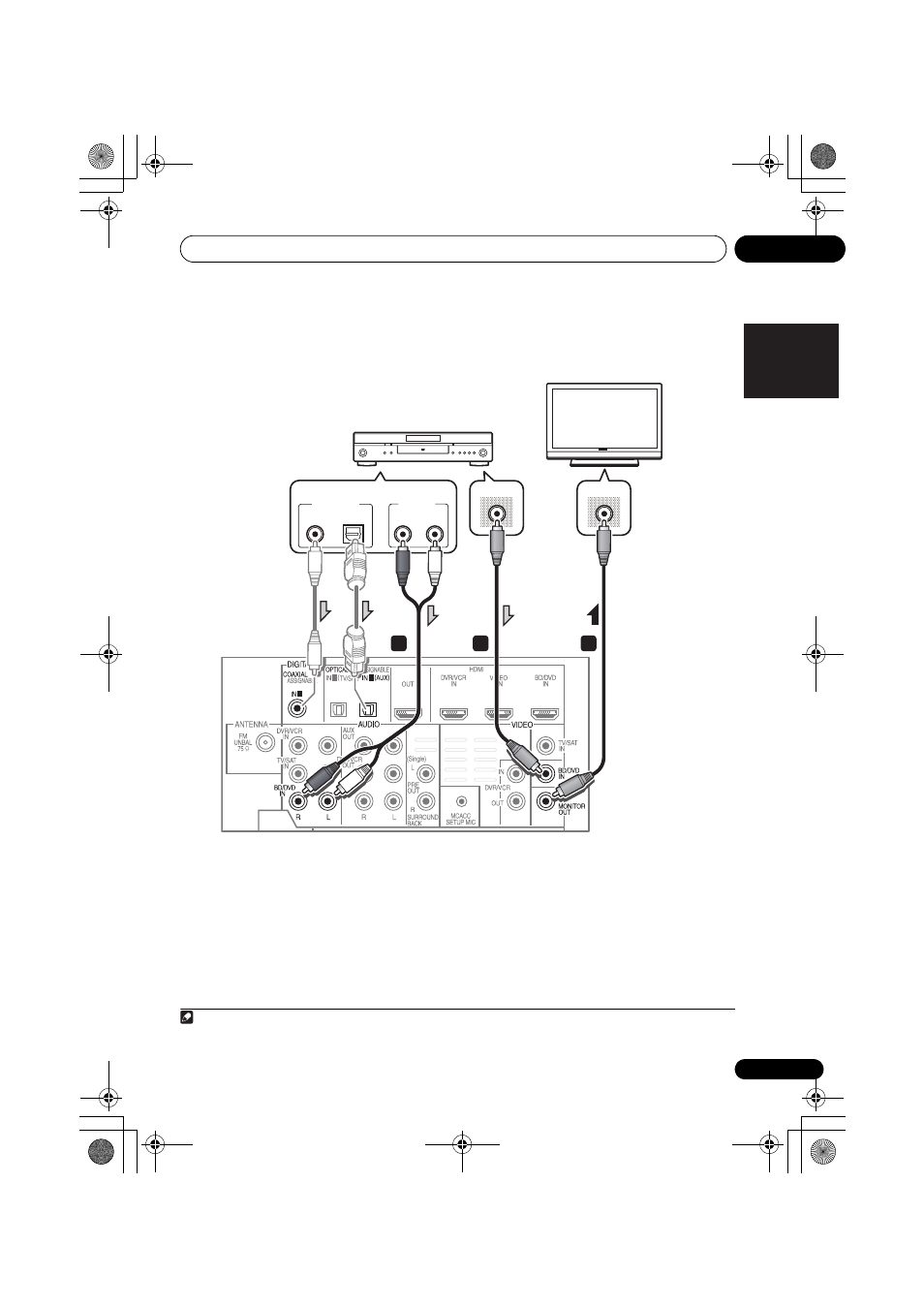

This diagram shows connections of a TV and DVD player (or other playback component) with no
HDMI terminal to the system.
1 Connect the composite video output on
your DVD player to the VIDEO BD/DVD input
on this system.
Use a standard RCA video cable.
2 Connect the audio output on your DVD
player to the AUDIO BD/DVD IN inputs on this
system.
Use a stereo RCA phono cable. If your component
has a digital output, you can also use an optical
cable or coaxial cable for the connection.
1
3 Connect the MONITOR OUT on this system
to the composite video input on your TV.
Use the supplied video cable.
1
1 2
1 2 3
VIDEO IN VIDEO OUT
ANALOG R L
AUDIO OUT DIGITAL OUT
OPTICAL COAXIAL
TV
DVD player, etc.
Select one
Note
1 In this case, you’ll need to tell the system which digital input you connected the component to (see Choosing the input
signal on page 54).
