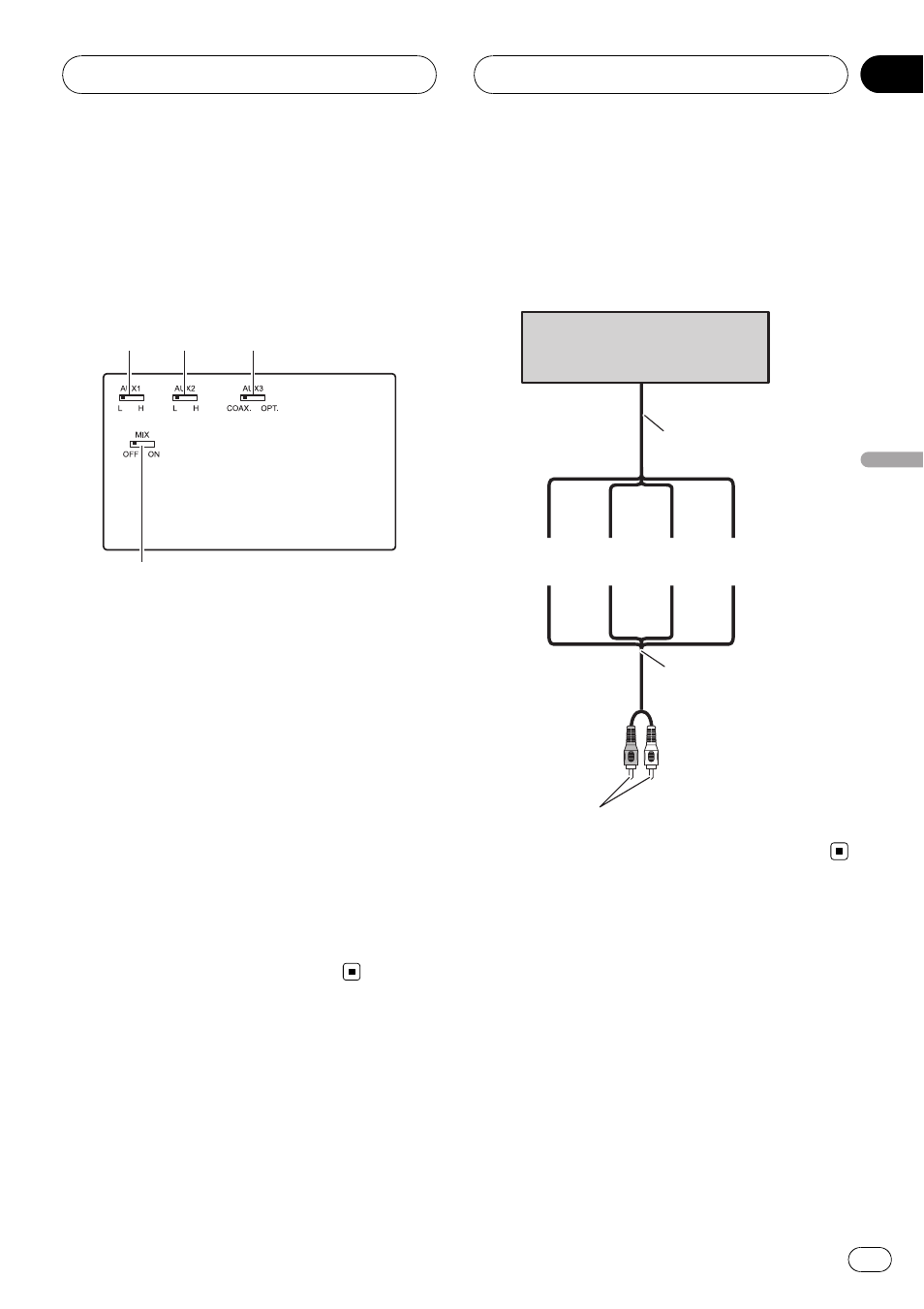

Selecting the input setting
switch
Depending on the AUX devices connected to
this unit, select the input setting switch on the
under side of this unit.
1 2 3
4
1 Input level select switch (AUX1 Main)
Input level of AUX1 can be selected between
HIGH and LOW. If amplifier equipped unit is
connected to AUX1, select this switch to
HIGH.
2 Input level select switch (AUX2 AUX)
Input level of AUX2 can be selected between
HIGH and LOW. If amplifier equipped unit is
connected to AUX2, select this switch to
HIGH.
3 Digital input select switch (AUX3 Digital)
Depending on the AUX3 unit, select COAX.
(COAX digital cable) or OPT. (TOSLINK digital
cable).
4 Mixing setting switch
Sound from AUX1 Main and AUX2 AUX can
be mixed by selecting this switch.
Using the speaker-RCA
conversion cable
If the device you want to connect as an AUX
unit does not have an RCA output, the sup-
plied speaker-RCA conversion cable can be
used.
* If you want to connect the device to this
unit as AUX 1 or AUX 2, connect to AUX 1
or AUX 2 input. If IP-BUS-RCA interconnec-
tor is used, it is also possible to connect
the device as AUX 5.
AUX device
(speaker-output-equipped unit)
(sold separately)
Speaker output
Speaker-RCA
conversion cable
(supplied)
White:
Left

Black:
Left

Black:
Right

Red:
Right

To RCA input of this unit. 
