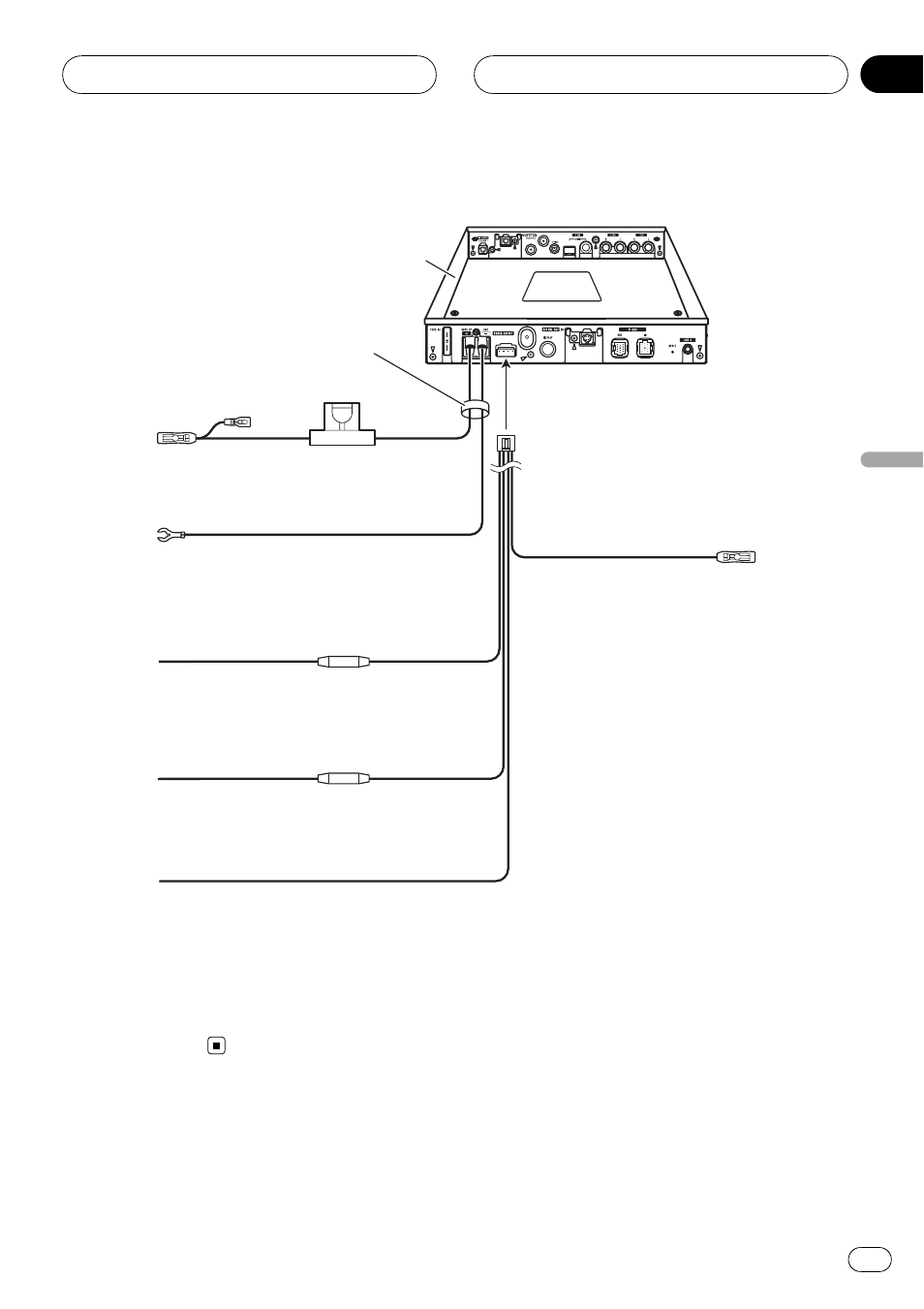

Connecting the power cable

Translucent with black stripe
(chassis ground)
Connect to a clean, paint-free
metal location.

Fuse (4 A)

Translucent with yellow stripe
Connect to the constant
12 V supply terminal.

Red
Connect to terminal controlled
by ignition switch (12 V DC).

Yellow/black
If you use a device with a Mute function, connect
this lead to the Audio Mute lead on that device.
If not, keep the Audio Mute lead free of any connections.

Blue/white
Connect to system control
terminal of the power amp
(max. 300 mA 12 V DC).

Orange/white
Connect to lighting switch terminal.

Fuse resistor

This unit

Covering

! Cover the back-up terminal and ground

terminal of the hide-away unit with the sup-
plied covering.
