Connecting up 02
23
En

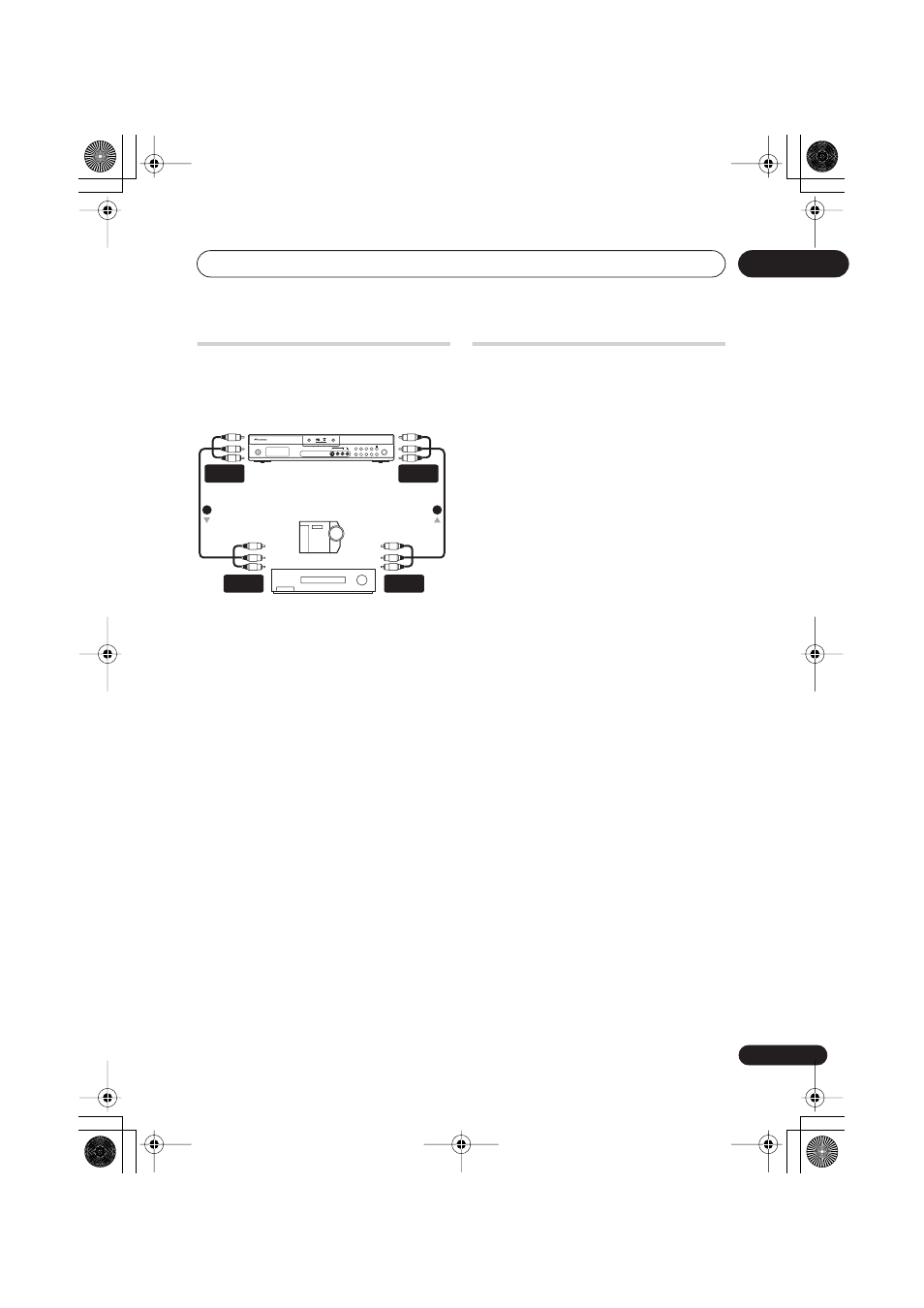

Connecting other AV sources
Connecting a VCR or analog
camcorder
1 Connect a set of audio and video
inputs of your VCR or camcorder to a set
of outputs on this recorder.
This enables you to record from this recorder
to your VCR or camcorder.
• You can use standard video or S-Video
cables for the video connection.
• Alternatively, you can use the
AV2(INPUT 1/DECODER) SCART
connector for audio/video input and
output with just one SCART cable.
2 Connect a set of audio and video
outputs of your VCR or camcorder to a
set of inputs on this recorder.
This enables you to record tapes from your
VCR or camcorder.
• You can use standard video or S-Video
cables for the video connection.
• The front panel connections make
convenient connections for a camcorder
input.
Plugging in
After checking all the connections, plug in
the recorder.
• Use the supplied power cable to
connect this recorder to a power outlet.
Analog camcorder
VCR
(Rear panel) (Front panel)
HDD/DVD OPEN/CLOSE
ì REC STANDBY/ON ONE TOUCH COPY
CH STANDBY/ON ì REC + –
A.TV/D.TV HELP INPUT SELECT PAUSE LIVE TV
PLTV DivX D.TV A.TV
S-VIDEO VIDEO L(MONO) R AUDIO INPUT 2
AUDIO/VIDEO
OUTPUT
AUDIO/VIDEO
INPUT
1 2
AUDIO/VIDEO
INPUT
AUDIO/VIDEO
OUTPUT
