Connecting up 02
16
En
Front panel connections
On the front panel a flip-down cover hides
more connections.
11 INPUT 2
Audio/video input (stereo analog audio;
composite and S-Video video), especially
suitable for camcorders, game consoles,
portable audio, etc.

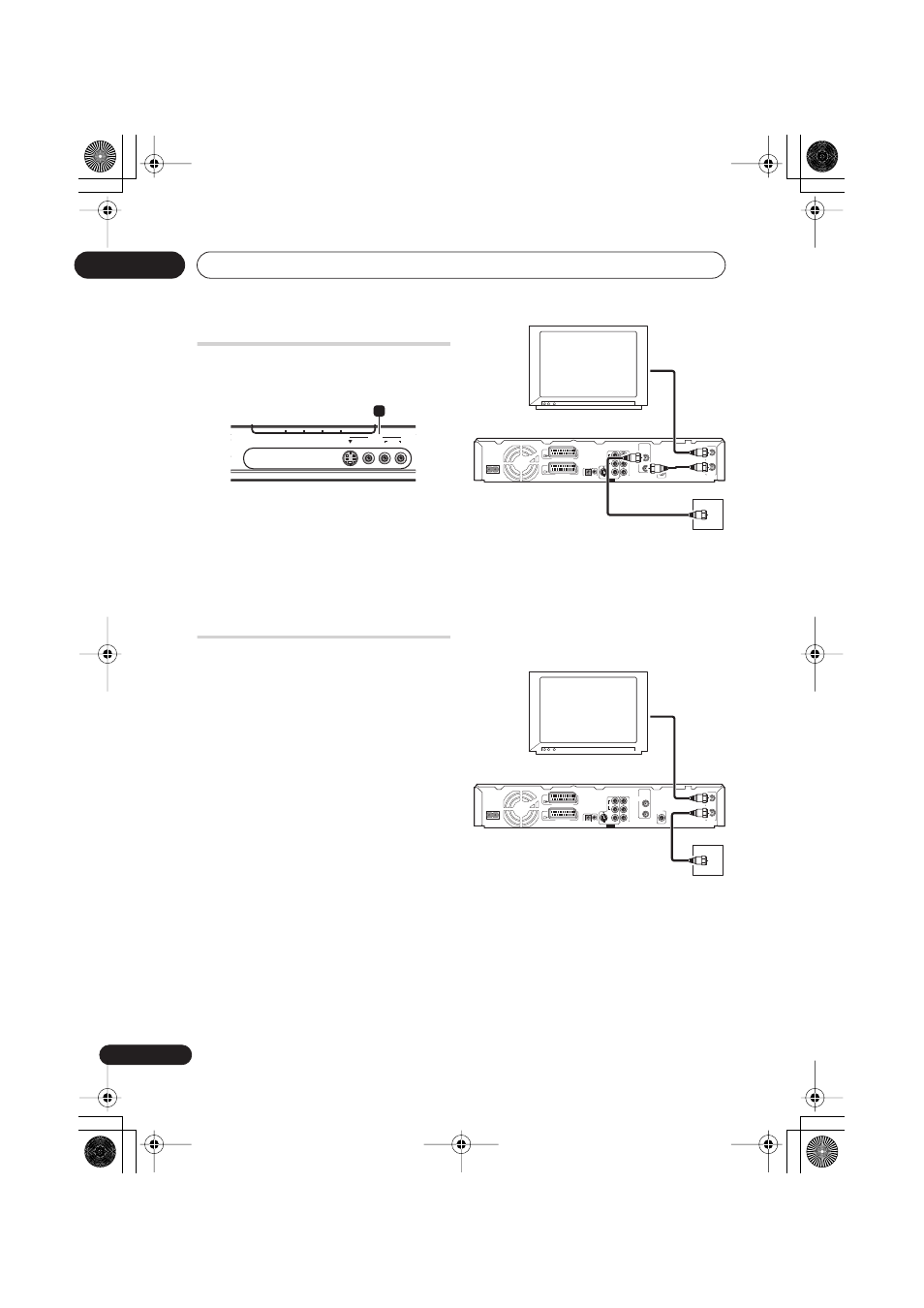

Connecting a TV antenna
This recorder has separate built-in TV tuners
for terrestrial digital and terrestrial analog TV
broadcasts.
If you are ready to receive digital broadcasts
now, use the longer of the supplied RF
antenna cables to connect the output of your
antenna to the
ANTENNA (DIGITAL) IN
connector. Next use the short supplied RF
antenna cable and connect it between the
ANTENNA (DIGITAL) OUT and ANTENNA
(RF IN) connectors. Lastly, connect the
recorder to your TV from the ANTENNA (RF
OUT) connector.
If your area is not yet served with terrestrial
digital services, connect your antenna’s
output to the
ANTENNA (RF IN) connector
using one of the supplied RF antenna
cables. Next, connect the recorder to your TV
from the
ANTENNA (RF OUT) connector.
We strongly recommend using an outdoor
antenna for better broadcast picture quailty.
PLTV DivX D.TV A.TV
S-VIDEO VIDEO L(MONO) R
AUDIO INPUT 2
11
TV
Antenna
wall outlet
ANTENNA IN
OUT
DIGITAL AUDIO OUT
COAXIAL
ANTENNA (DIGITAL)
IN
OUT
VIDEO
L
R Y
P B
P R
COMPONENT VIDEO OUT S-VIDEO OUTPUT
IN
CONTROL G-LINK AV 1 (RGB) – TV
AV 2 (INPUT 1/DECODER) AC IN AUDIO
TV
Antenna
wall outlet
ANTENNA IN
OUT
DIGITAL AUDIO OUT
COAXIAL
ANTENNA (DIGITAL) IN
OUT
VIDEO
L
R Y
P B
P R
COMPONENT VIDEO OUT S-VIDEO OUTPUT
IN
CONTROL G-LINK AV 1 (RGB) – TV
AV 2 (INPUT 1/DECODER) AC IN AUDIO
