Connecting up
02
21
En
See the manual for your decoder box for
more detailed instructions.
3
Use a SCART cable to connect your
VCR/satellite receiver/cable box to the
AV2(INPUT 1/DECODER) AV connector on
this recorder.
4
Use a SCART cable to connect the
AV1(RGB)-TV AV connector to your TV.

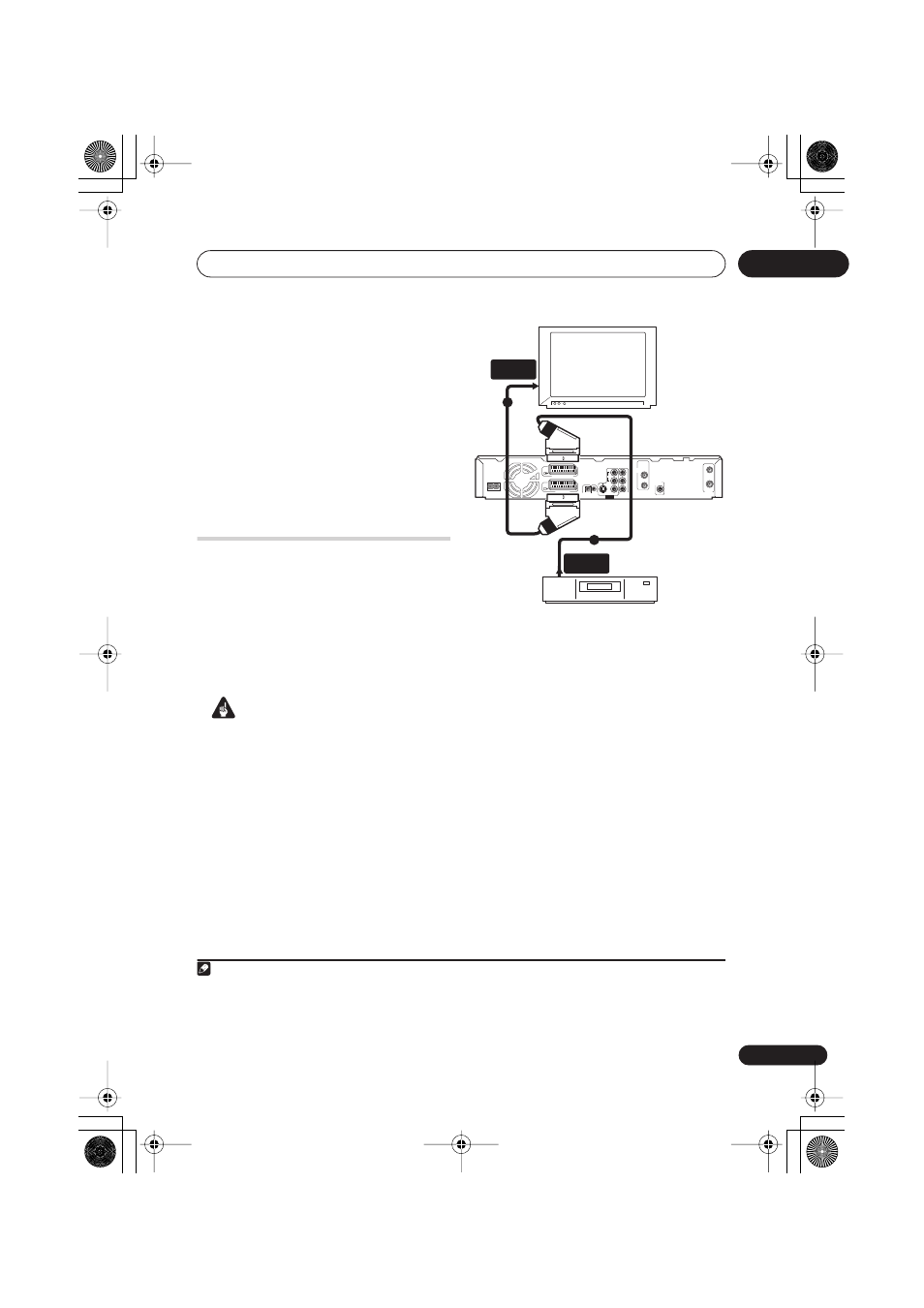

Connecting an external
decoder box (2)
If you only have a decoder, connect it to this
recorder and your TV as shown on this
page.
1
Using the setup on this page you can:
• Record scrambled channels received
using the recorder’s built-in analog TV
tuner.
Important
• Do not connect this recorder ‘through’
your VCR, satellite receiver or cable box.
Always connect each component
directly to your TV or AV amplifier/
receiver.
1
Connect your TV antenna to the
recorder and TV.
See
Connecting a TV antenna
on page 16 for
details.
This enables you to watch and record TV
channels.
2
Use a SCART cable (not supplied) to
connect the AV1(RGB)-TV AV connector
to a SCART AV connector on your TV.
This enables you to watch discs.
3
Use another SCART cable to connect
the AV2(INPUT 1/DECODER) AV
connector to a SCART AV connector on
your decoder box.
This enables you to record scrambled TV
channels.
Note
1 In order to use this setup, you will need to make the following settings from the Initial Setup menu:
• Set the
AV2/L1 In
setting to
Decoder
from the Initial Setup menu (see
AV2/L1 In
on page 126).
• From the
Manual CH Setting
screen, set the
Decoder
setting for the scrambled channels to
On
(see
Manual
CH Setting
on page 124).
TV
Decoder
ANTENNA
IN
OUT
DIGITAL
AUDIO OUT
COAXIAL
ANTENNA
(DIGITAL)
IN
OUT
VIDEO
L
R
Y
P
B
P
R
COMPONENT
VIDEO OUT
S-VIDEO
OUTPUT
IN
CONTROL G-LINK
AV 1 (RGB) – TV
AV 2 (INPUT 1/DECODER)
AC IN
AUDIO
SCART AV
CONNECTOR
SCART AV
CONNECTOR
2
3
