4. Connections

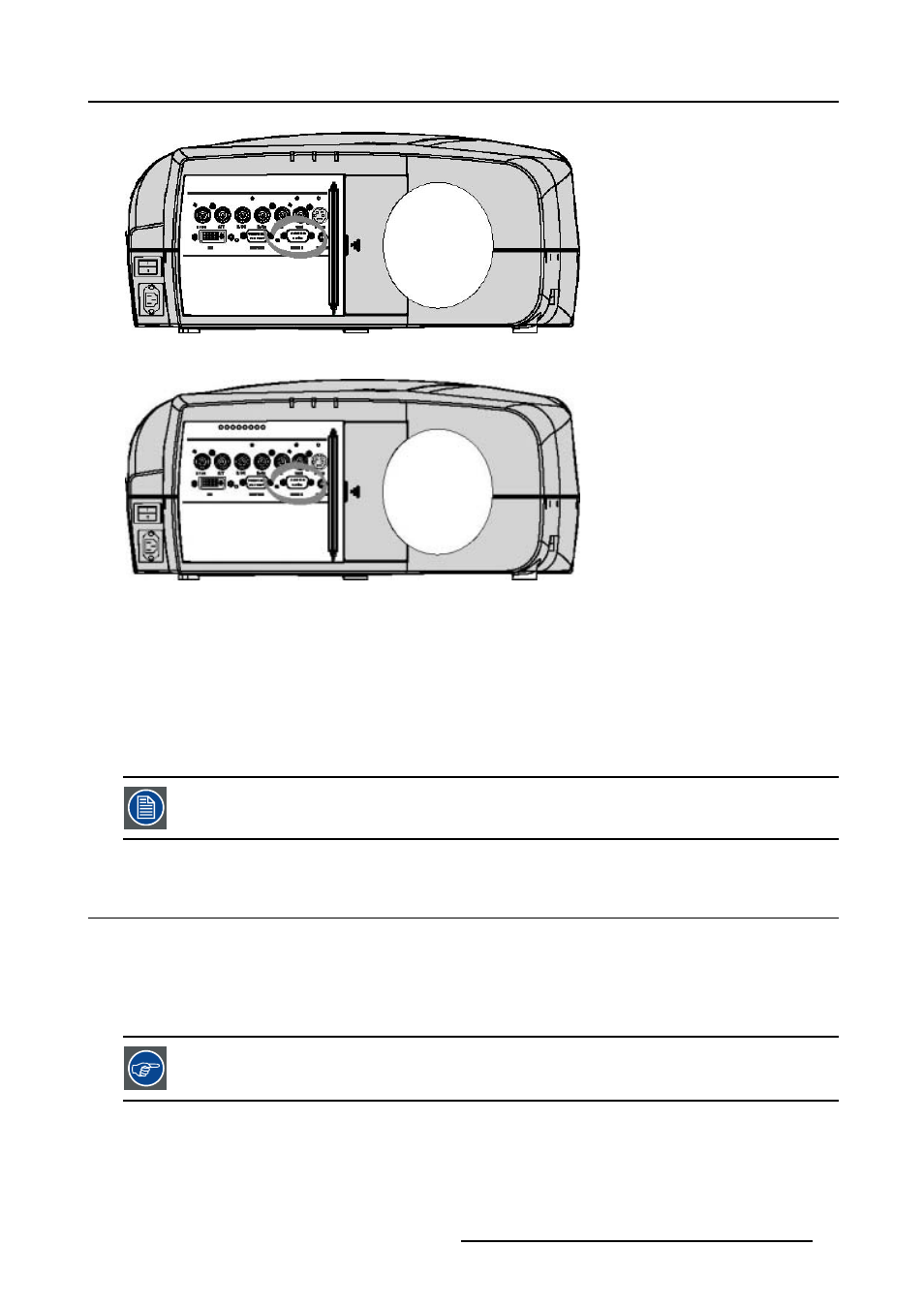

Image 4-11
Image 4-12
Applications of the RS232 connection
Remote control:
• easy adjustment of projector via IBM PC (or compatible) or MAC connection.
• address range from 1 to 255
• allow storage of multiple projector configurations and set ups.
• wide range of control possibilities
Data communication: sending data to the projector or copying the data from the projector to the computer
To set up the baudrate of the projector, see the Installation menu
4.4 Connecting the MGP in Dicom Theatre ®
Which connections are made ?
The MGP is connected to the MediCal ® Pro system through :
• serial communication via the RS232 IN port
• signal connection through the RGB data and/or D15 PC input
Connecting to both RGB and D15 PC is possible and will allow simultaneous
display in Picture in Picture mode, this can be useful for comparative purposes.
