Installation guidelines – Barco R9003110 User Manual
Page 17
3. Installation Guidelines
Refer to the Installation manual for more info on how to install the ceiling mounts

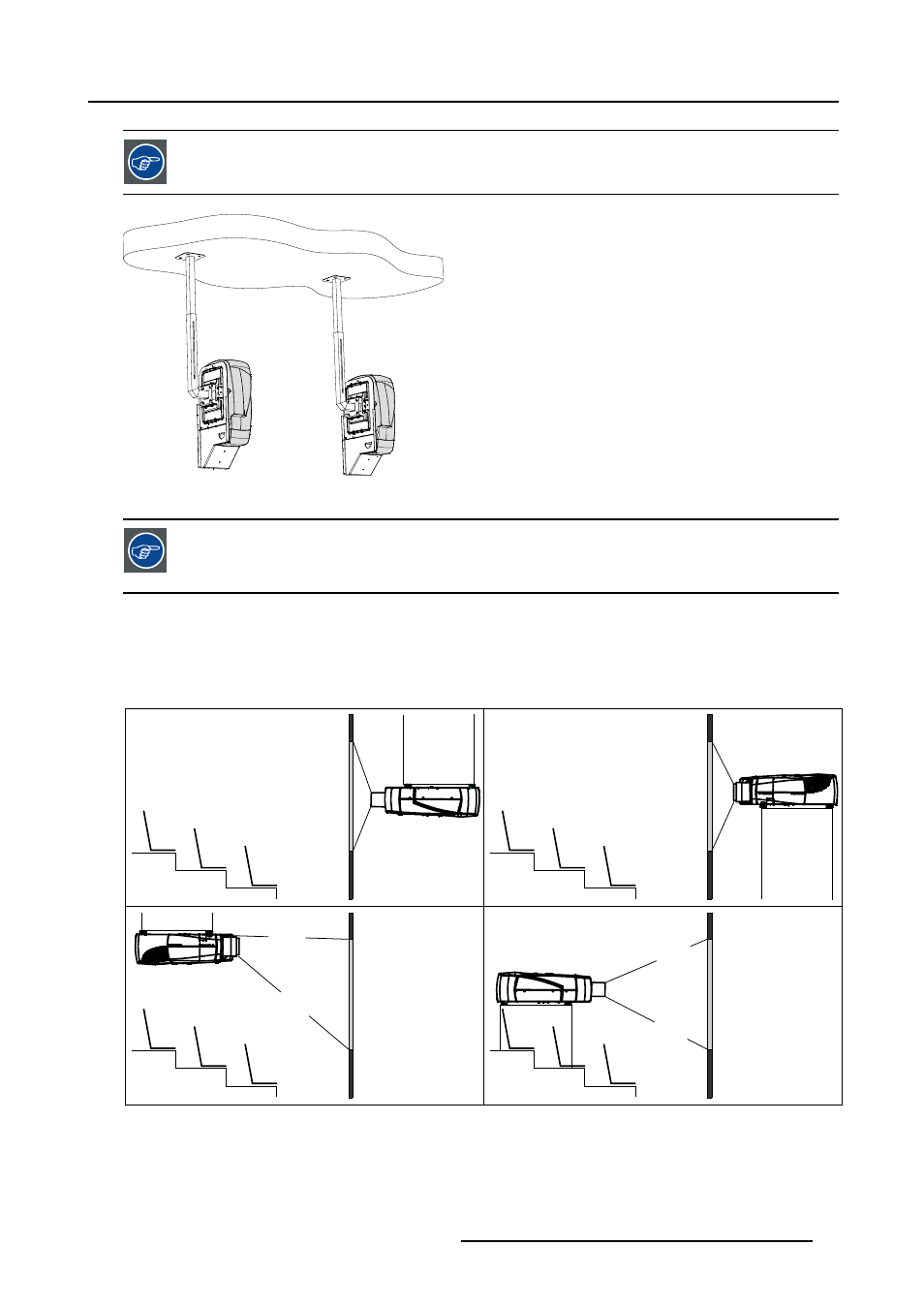

Image 3-2
Dual head setup in portrait mode
Lens range to be used in combination with the MGP Ceiling mount Kit for front projection: SVD (2.0 - 2.5)
Only on axis projection since vertical shift is impossible (vertical shift becomes horizontal shift).
Rear projection is also possible within a dedicated rear structure.
For the landscape viewing mode one can define the standard projector configurations:
1.
Rear/Ceiling
2.
Rear/Table
3.
Front/Ceiling
4.
Front/Table
1
2
3
4
Image 3-3
R5976741 MGP 15 MEDICAL GRADE PROJECTOR 28/04/2004
13
