3. Installation Guidelines

3.4.3

Lens installation

How to install ?

1. Take the lens out of its packing material

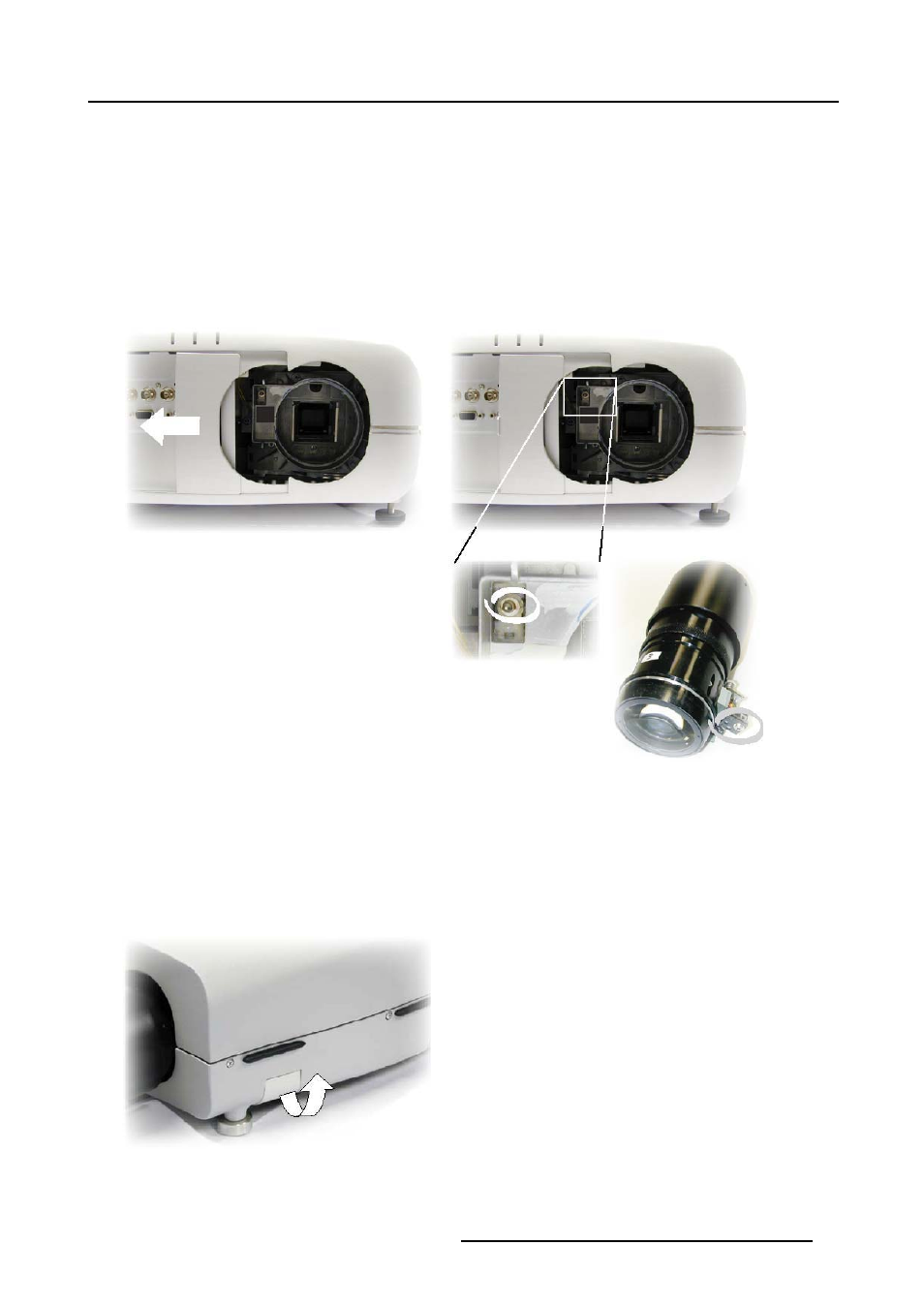

2. Slide the lensdoor to the left (image 3-6)

3. Fix the lens by placing it in the housing

Note:

In case of a motorized lens the female jack must be in front of the male jack located in the upper-left part of the housing
in the projector (image 3-7)

4. Push carefully to lock the lens in the housing

5. Slide back the lensdoor to the right

Image 3-6

Image 3-7

3.4.4

Removing the lens

How to remove the lens ?

1. Slide the lens door to the left.

2. Unlock the lens by pulling the handle located on the right side of the projector (image 3-8)

3. Remove the lens out of its housing

Image 3-8

R5976741 MGP 15 MEDICAL GRADE PROJECTOR 28/04/2004
