American Power Conversion Smart-UPS User Manual
Page 27

Configuration – Parts Replacement
990-2818A
Smart-UPS® VT ISX 20-30 kVA, 200 V Operation
21

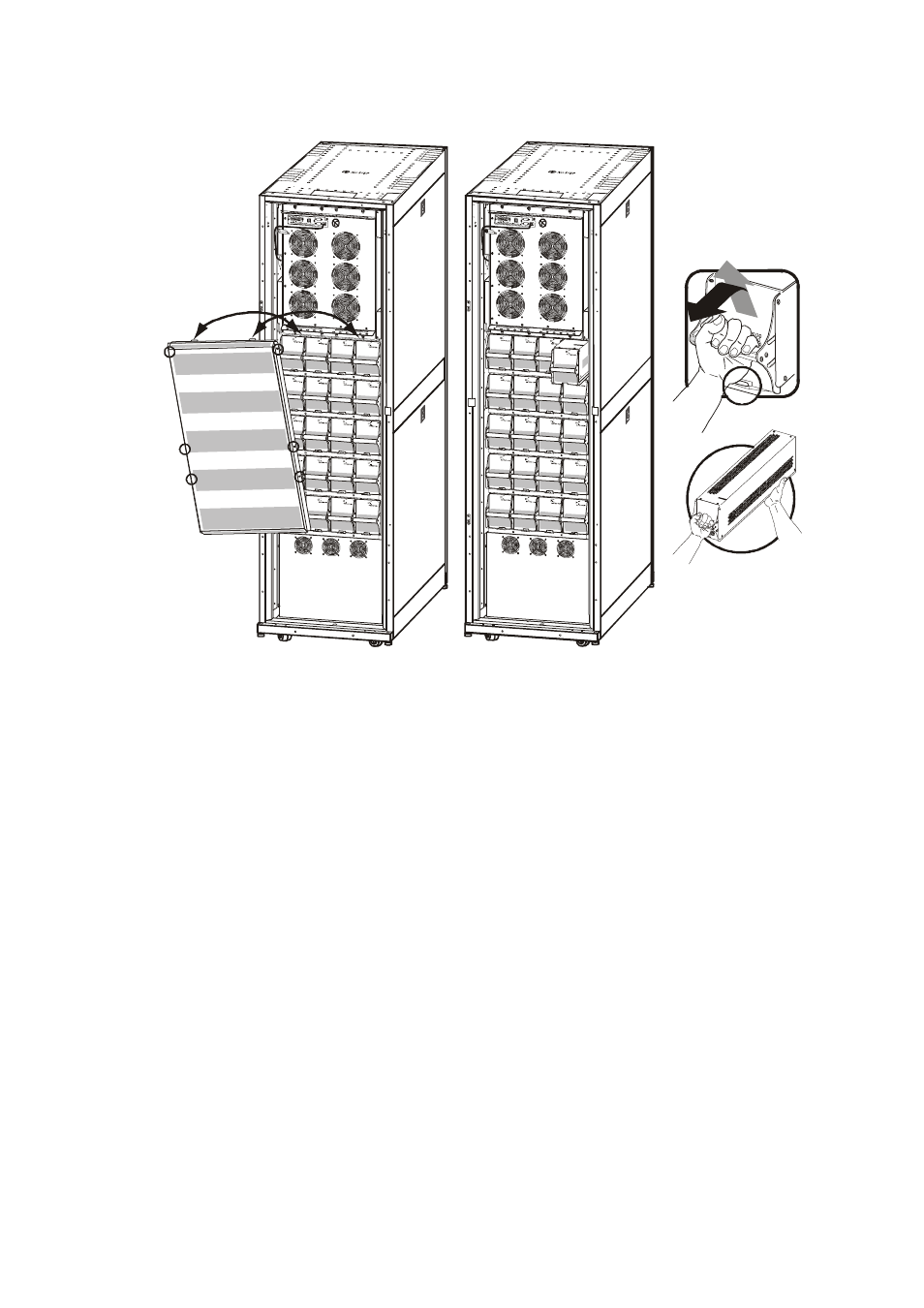

Loosen the six M5 torx screws from the battery cover, and remove cover.
Holding the battery handle, gently push the battery unit upwards and pull it halfway out of the
Enclosure. A lock mechanism prevents it from being pulled all the way out.
To release the battery from the lock mechanism, one person gently pushes the battery upwards again
and pulls it out, while the other person supports the battery.
