Console Management
Page 5-32
Enabling/Disabling Spanning Tree on ALL Ports
To enable or disable Spanning Tree on all ports:
1 Open the Spanning Tree Parameter Menu by
typing
s on the Configuration Menu.
2 Type d to disable Spanning Tree on all ports;
type e to enable Spanning Tree on all ports.
To cancel the request, type ctrl-c.
3 Type a on the Spanning Tree Parameters
Menu to apply the configuration.
The Spanning Tree status is displayed at the
top of the menu next to STP Status
Enabling/Disabling Spanning Tree on a Single Port
To enable or disable Spanning Tree on an individual port:
1 Open the Spanning Tree Parameter Menu by
typing
s on the Configuration Menu.
2 Type c to open the Config STP Port Attributes
Menu.

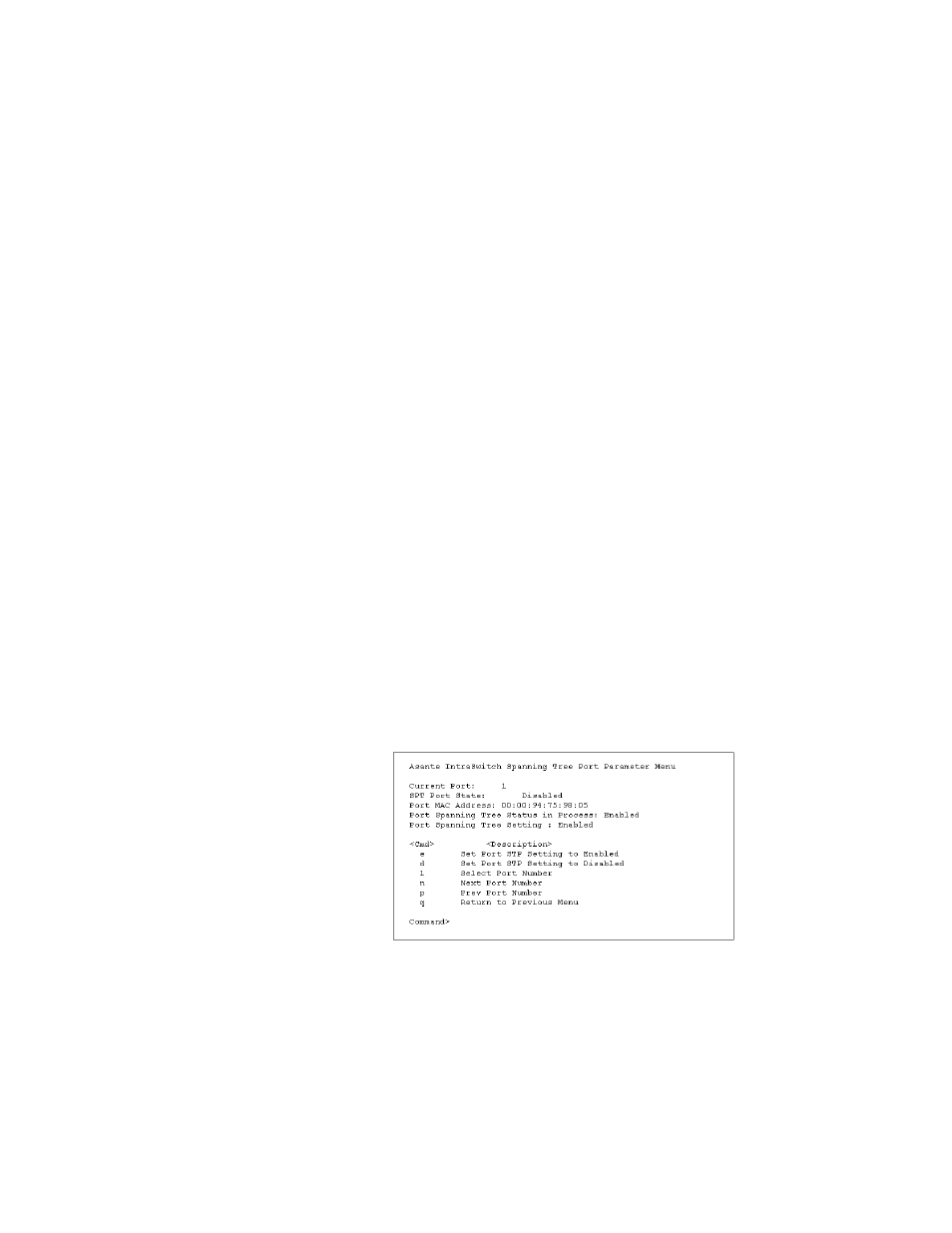

Figure 5-12 is an example of the Spanning
Tree Port Parameter Menu.
Figure 5-12 Spanning Tree Port Parameters Menu
