Installation
Page 2-8
Connecting
Power
To connect power to the IntraSwitch 5308FL:
1 Plug one end of the supplied power cord into
the power connector on the back of the unit.

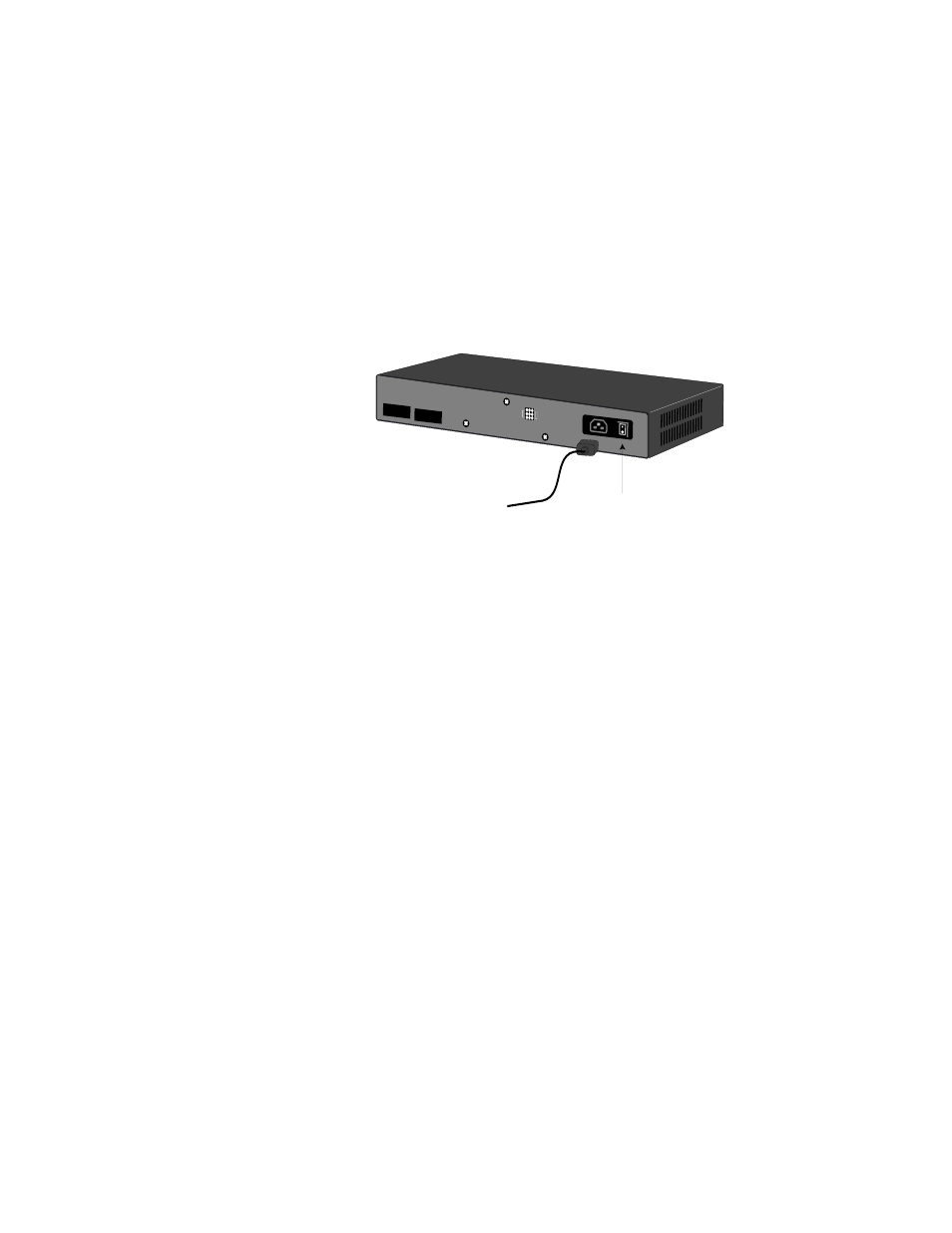

Figure 2-5 Connecting the power cord to the IntraSwitch 5308FL
2 Plug the other end of the power cord into a
grounded AC outlet.
∆
Note: For more information about power
and environmental requirements, see Appendix C,
“Technical Specifications.”
3 Turn theIntraSwitch 5308FL’s power switch to
the “on” position.
Make sure the IntraSwitch 5308FL’s front panel
LEDs blink and the POWER LED lights and
remains on.
▲
Important! If the power does not come
on, refer to Appendix A, “Troubleshooting.”
4 Turn the IntraSwitch 5308FL’s power off.
The IntraSwitch 5308FL is ready be connected
to the network. Proceed to “Connecting to the
Network” on page 2-9.
Power Switch
Power Cord
MII 1 (Port 26)
MII 2 (Port 27)
Redundant Power Supply
