Console Management
Page 5-22
Configure Port Parameters
This menu allows you to manually configure each of the
IntraSwitch 5308FL’s ports for speed, connection, link mode,
and auto-negotiation.
The default parameters for each 10Base-FL port are:
❏ auto-negotiation — disabled
❏ port speed — 10Mbps
❏ link mode — half duplex
The default parameter for the 10/100TX port and the 10/100
MII expansion ports is:
❏ auto-negotiation — enabled (auto-negotiates to
10 or 100
half duplex)
To access the Port Parameter Menu, type p from the
Configuration Menu. The following menu appears:

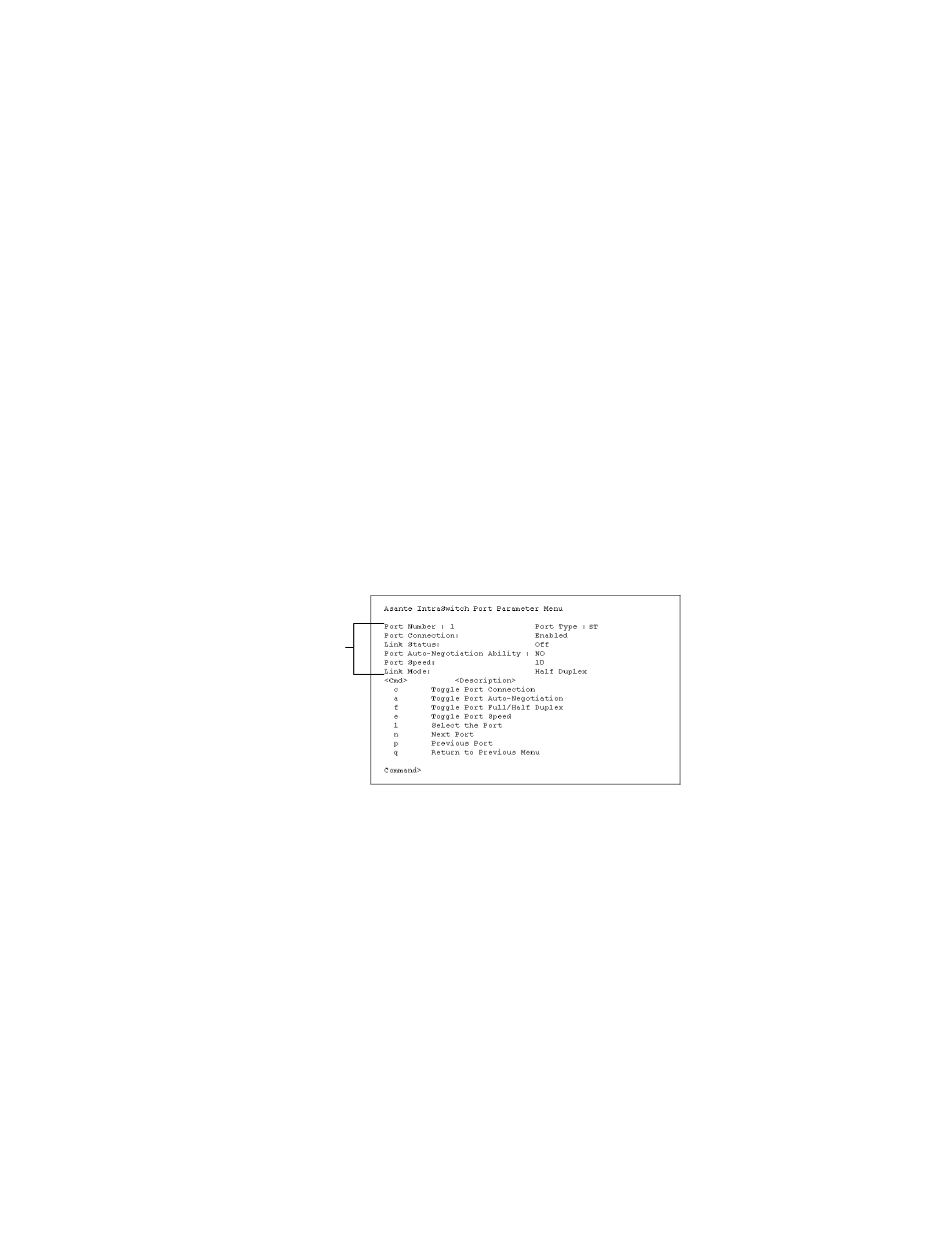

Figure 5-8 Port Parameter Menu
The Port Management menu displays statistics for one port at a
time. The current port for which statistics are displayed is
shown at the top of the screen (next to “
Port Number:”).
❏ Ports 1 – 8 — each 10Base-FL port.
❏ Port 9 — the 10/100TX port.
❏ Ports 10 and 11 — the MII expansion ports (MII 1
and MII 2, respectively).
Current Settings
