Asante Technologies 5308F - Manual (Page 42)

Installation
Page 2-14
3 Once connected, the IntraSwitch 5308FL’s Local
Management Interface Main Menu appears on
the terminal screen, as shown in Figure 2-8.

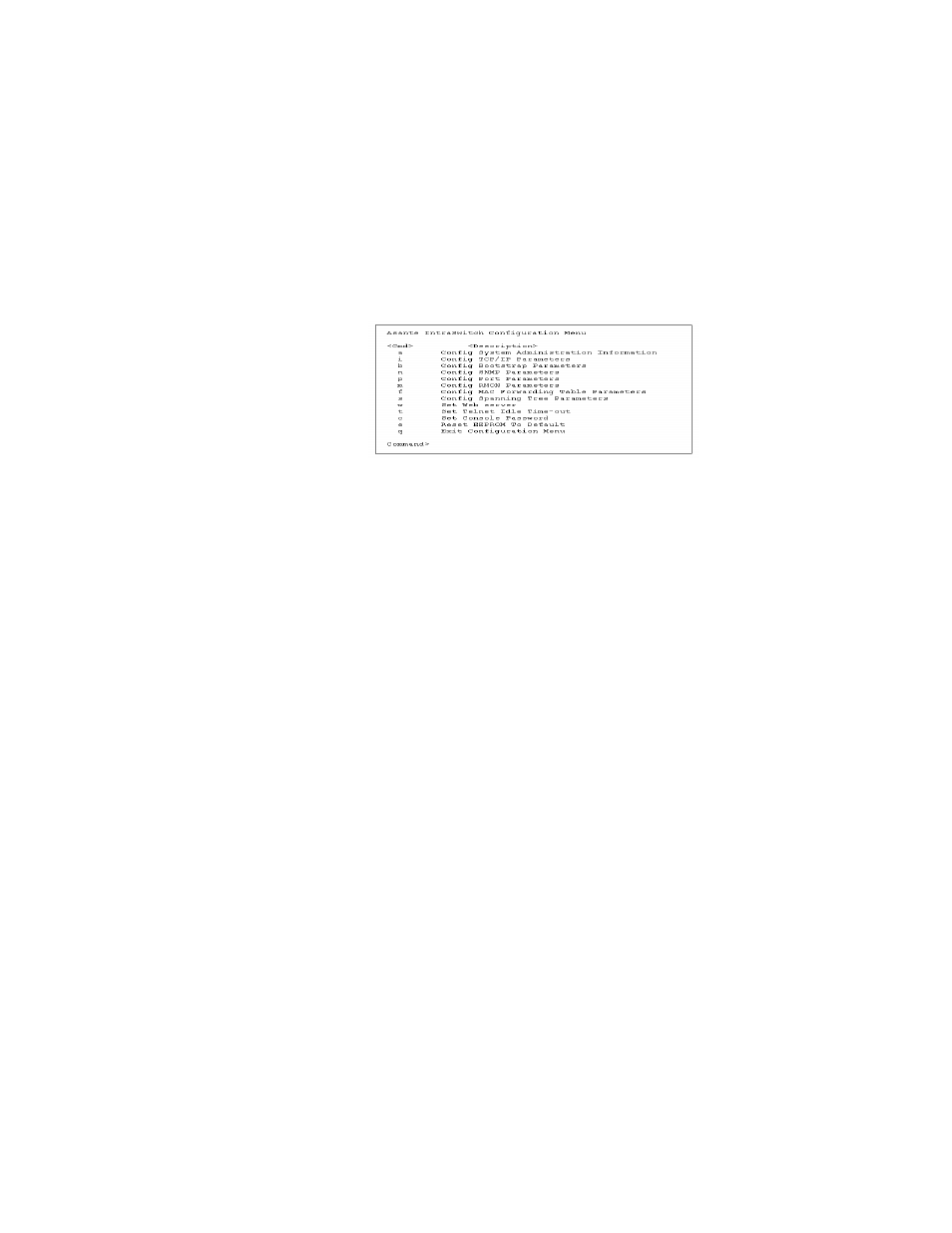

Figure 2-8 Local Management Interface Main Menu
4 Type c to open the Configuration Menu.
The “Enter Password” prompt appears.
5 Type your password at the prompt.
▲
Important! The default password is
Asante. The password is case-sensitive.
For information on changing the password,
see “Set Console Password” on page 5-36.
6 Type i to open the Config TCP/IP Parameters
Menu.
7 Type i to select the option “Set IP Address.”
8 Type the IP address to be assigned to the
IntraSwitch 5308FL at the prompt.
This address becomes the new factory default
setting.
▲
Important! Depending on your network
configuration,
you may also need to set sub-
net mask and default router (gateway) infor-
mation. See “Configure TCP/IP Parameters”
on page 5-12 for instructions.
