Asante Technologies 5308F - Manual (Page 86)

Console Management
Page 5-30
Configure Spanning Tree Parameters
This menu allows you to view the IntraSwitch 5308FL’s
Spanning Tree parameters. It also allows you to enable or
disable Spanning Tree on all of the IntraSwitch 5308FL’s ports
or on a single port.
By default, the IntraSwitch 5308FL is shipped with Spanning
Tree
enabled on all ports.
▲
Important! Do not change these parameters
unless you have experience and knowledge of
the IEEE 802.1d specification.
To access the Spanning Tree Parameter Menu, type s from the
Configuration Menu. The following menu appears:

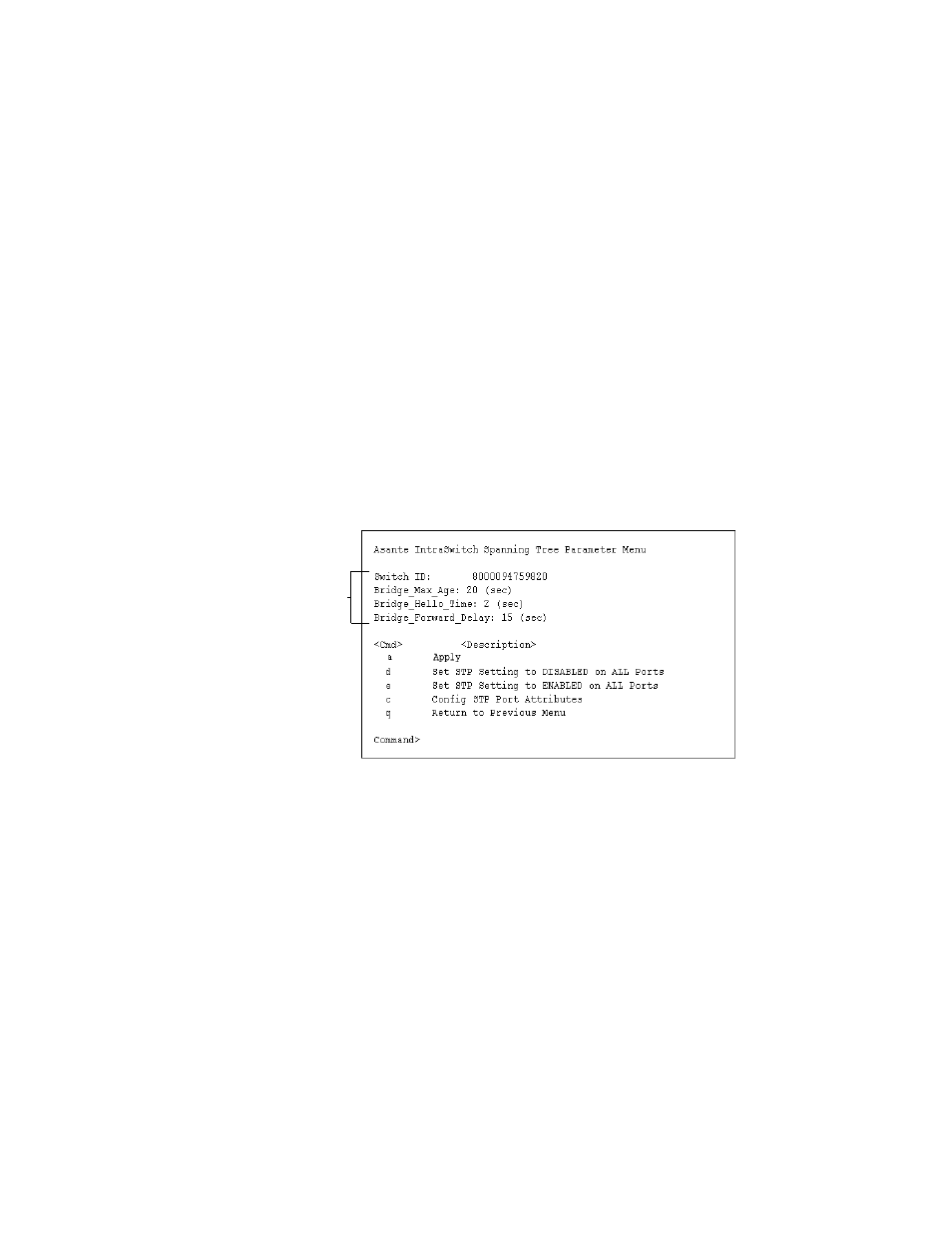

Figure 5-11 Spanning Tree Parameters Menu
Current Settings
Table 5-12 explains each setting on the Spanning Tree
Parameter Menu.
For information on using the menu, see:
❏ “Enabling/Disabling Spanning Tree on ALL
Ports” — page 5-32
❏ “Enabling/Disabling Spanning Tree on a
Port” — page 5-32
Current Settings;
these values
cannot be
changed
