CS5560
20 DS713PP2
5/4/09

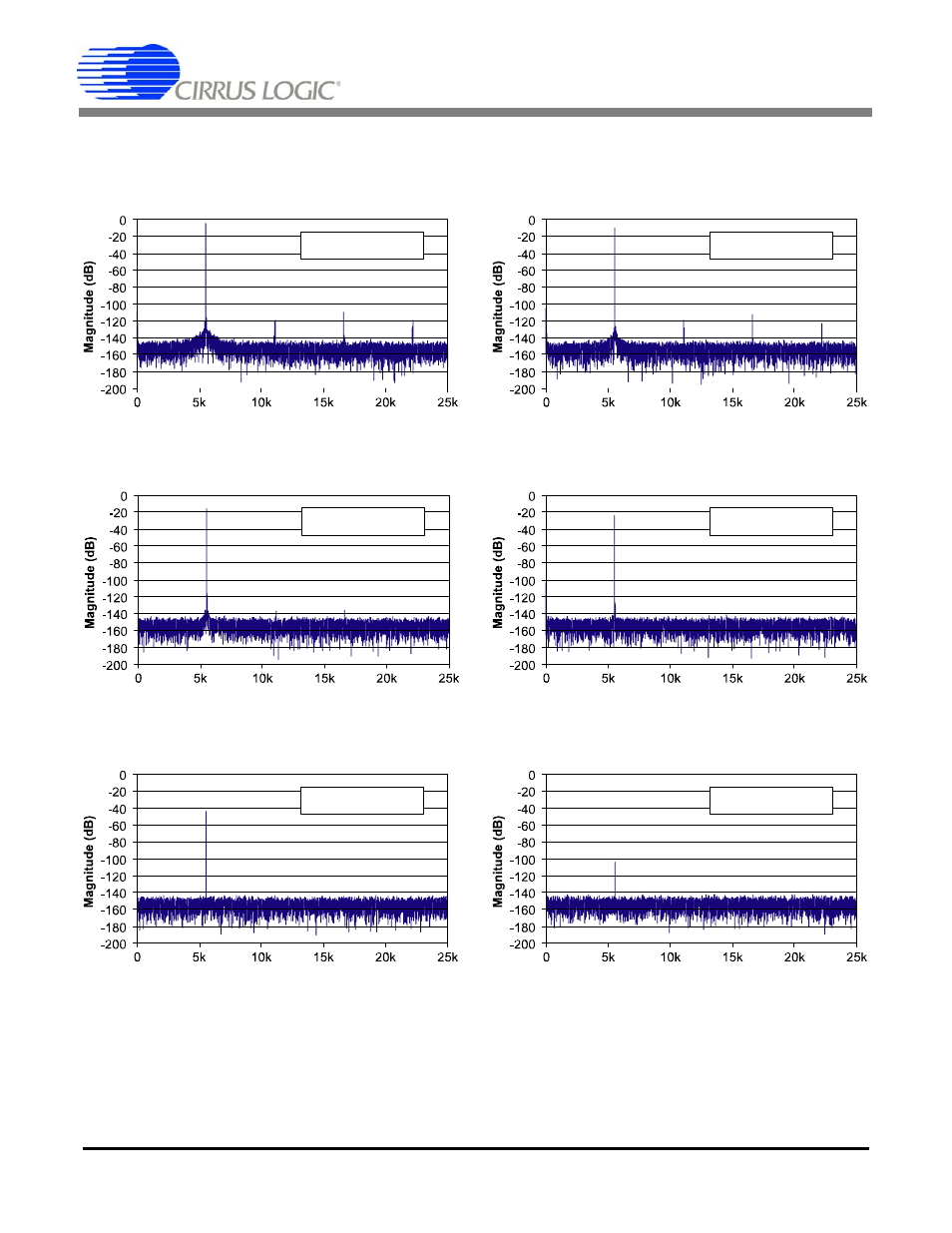

Figure 9 through Figure 16 illustrate the performance of the converter with various input signal magni-
tudes.
Frequency (Hz)
5.55 kHz, -0 dB
32k Samples @ 50 kSps
Frequency (Hz)
5.55 kHz, -6 dB
32k Samples @ 50 kSps
Frequency (Hz)
5.55 kHz, -12 dB
32k Samples @ 50 kSps
Frequency (Hz)
5.55 kHz, -20 dB
32k Samples @ 50 kSps
Frequency (Hz)
5.55 kHz, -40 dB
32k Samples @ 50 kSps
Frequency (Hz)
5.55 kHz, -100 dB
32k Samples @ 50 kSps
Figure 9. Spectral Performance, 0 dB Figure 10. Spectral Performance, -6 dB
Figure 11. Spectral Performance, -12 dB Figure 12. Spectral Performance, -20 dB
Figure 13. Spectral Performance, -40 dB Figure 14. Spectral Performance, -100 dB
