5 histogram information, 1 mean, Figure 9. cdb5550 histogram plot – Cirrus Logic CS5550 User Manual
Page 14: Cdb5550
CDB5550
14
2.5 Histogram Information
The following is a description of the indicators associated with Histogram Analysis. Histograms can be plot-
ted in the Data Collection Window by setting the Time Domain / FFT / Histogram selector to Histogram. Fig-
ure 9 shows a typical histogram plot.

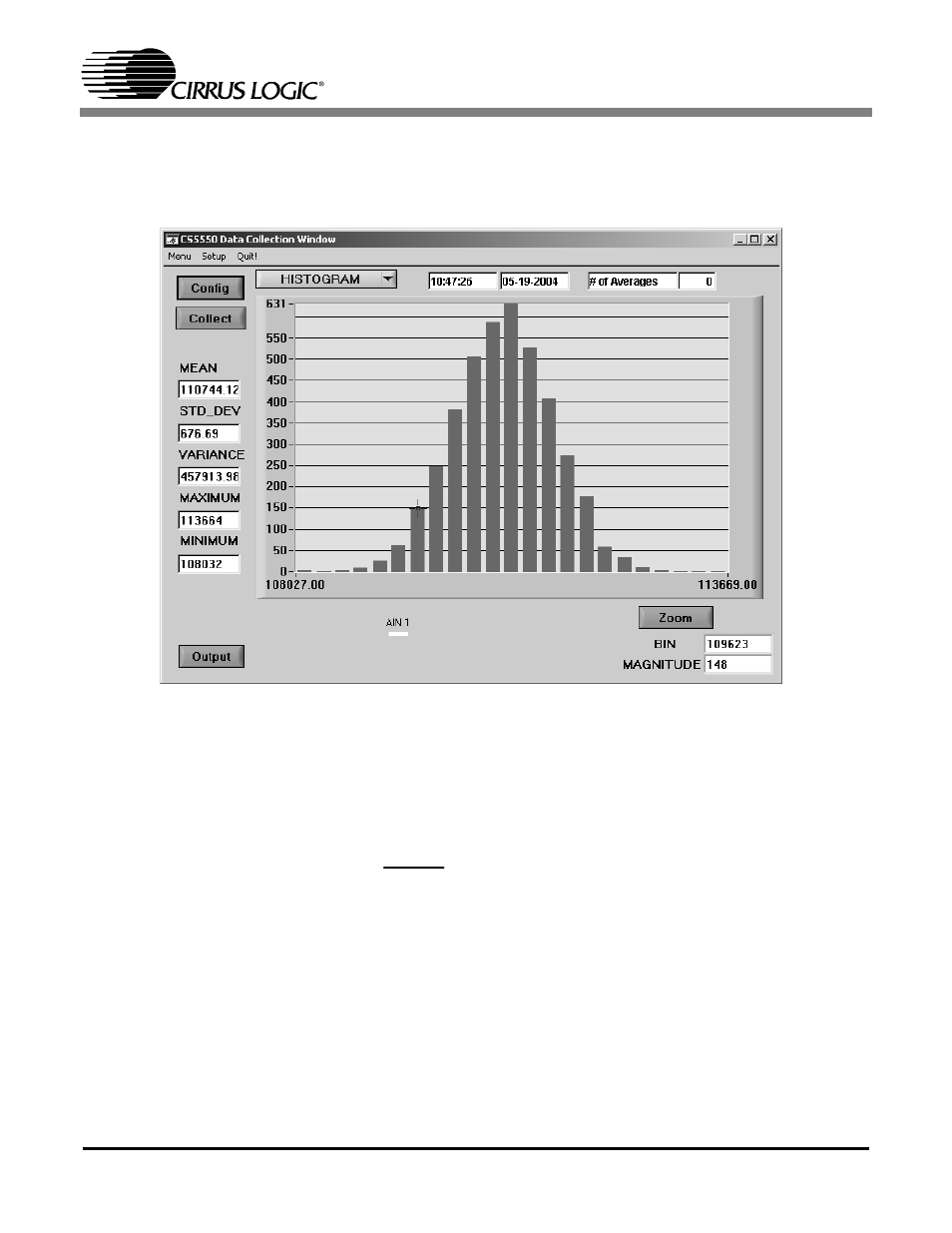

Figure 9. CDB5550 Histogram Plot
2.5.1 MEAN
Indicator for the mean of the data sample set. The mean is calculated using the following formula:
Σ
n - 1
i = 0
n
M ean =
X
i
