5.12 Switching Characteristics—Serial Control Port–I2C Master Mode

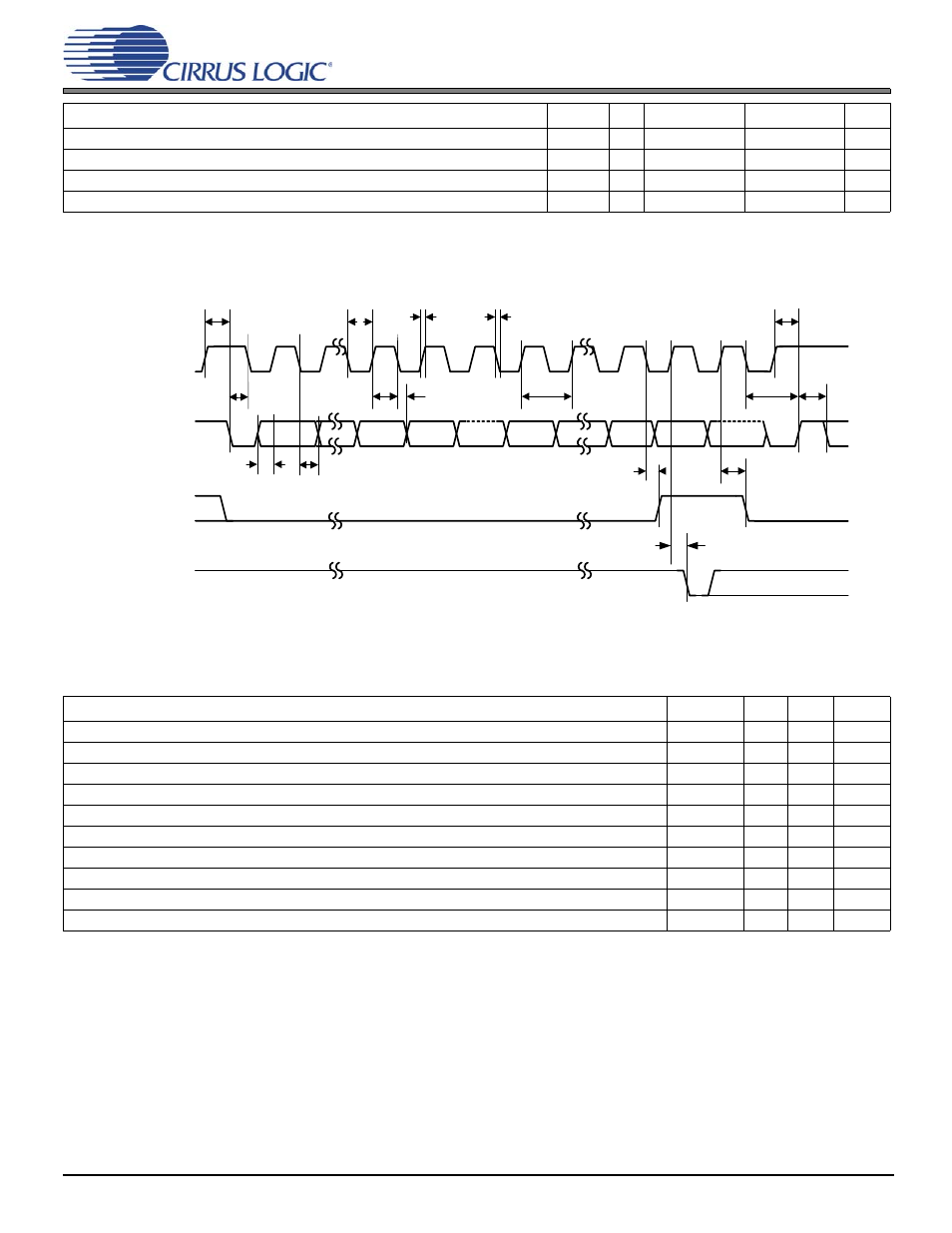

Figure 5-5. Serial Control Port–I 2 C Slave Mode Timing
5.12 Switching Characteristics—Serial Control Port–I 2 C Master Mode
SCP_CLK low to SCP_SDA out valid t
iicdov
— — 18 ns
SCP_CLK falling to SCP_IRQ# rising t
iicirqh
— — 3*DCLKP + 40 ns
NAK condition to SCP_IRQ# low t
iicirql
— 3*DCLKP + 20 — ns
SCP_CLK rising to SCB_BSY# low t
iicbsyl
— 3*DCLKP + 20 — ns
1.The specification f
iicck
indicates the maximum speed of the hardware. The system designer should be aware that the actual maximum speed of the
communication port may be limited by the firmware application. Flow control using the SCP_BSY# pin should be implemented to prevent overflow of
the input data buffer.
Parameter Symbol Min Max Units
SCP_CLK frequency 1
1.The specification f
iicck
indicates the maximum speed of the hardware. The system designer should be aware that the actual maximum speed of the
communication port may be limited by the firmware application.
f
iicck
— 400 kHz
SCP_CLK low time t
iicckl
1.25 — µs
SCP_CLK high time t
iicckh
1.25 — µs
SCP_SCK rising to SCP_SDA rising or falling for START or STOP condition t
iicckcmd
1.25 — µs
START condition to SCP_CLK falling t
iicstscl
1.25 — µs
SCP_CLK falling to STOP condition t
iicstp
2.5 — µs
Bus free time between STOP and START conditions t
iicbft
3 — µs
Setup time SCP_SDA input valid to SCP_CLK rising t
iicsu
100 — ns
Hold time SCP_SDA input after SCP_CLK falling t
iich
20 — ns
SCP_CLK low to SCP_SDA out valid t
iicdov
— 18 ns
Parameter Symbol Min Typical Max Units
SCP_BSY#
SCP_CLK
SCP_SDA
SCP_IRQ#
0 1 6 7 8 0 1 7
t
iicckl
t
iicckh
t
iicsu
t
iich
A6 A0 R/W ACK LSB
t
iicirqh t
iicirql
8
ACK MSB
t
iicstp
6
t
iiccbsyl
t
iicdov
t
iicbft
t
iicstscl
t
iicckcmd
f
iicck
t
iicckcmd
t
iicf
t
iicr
