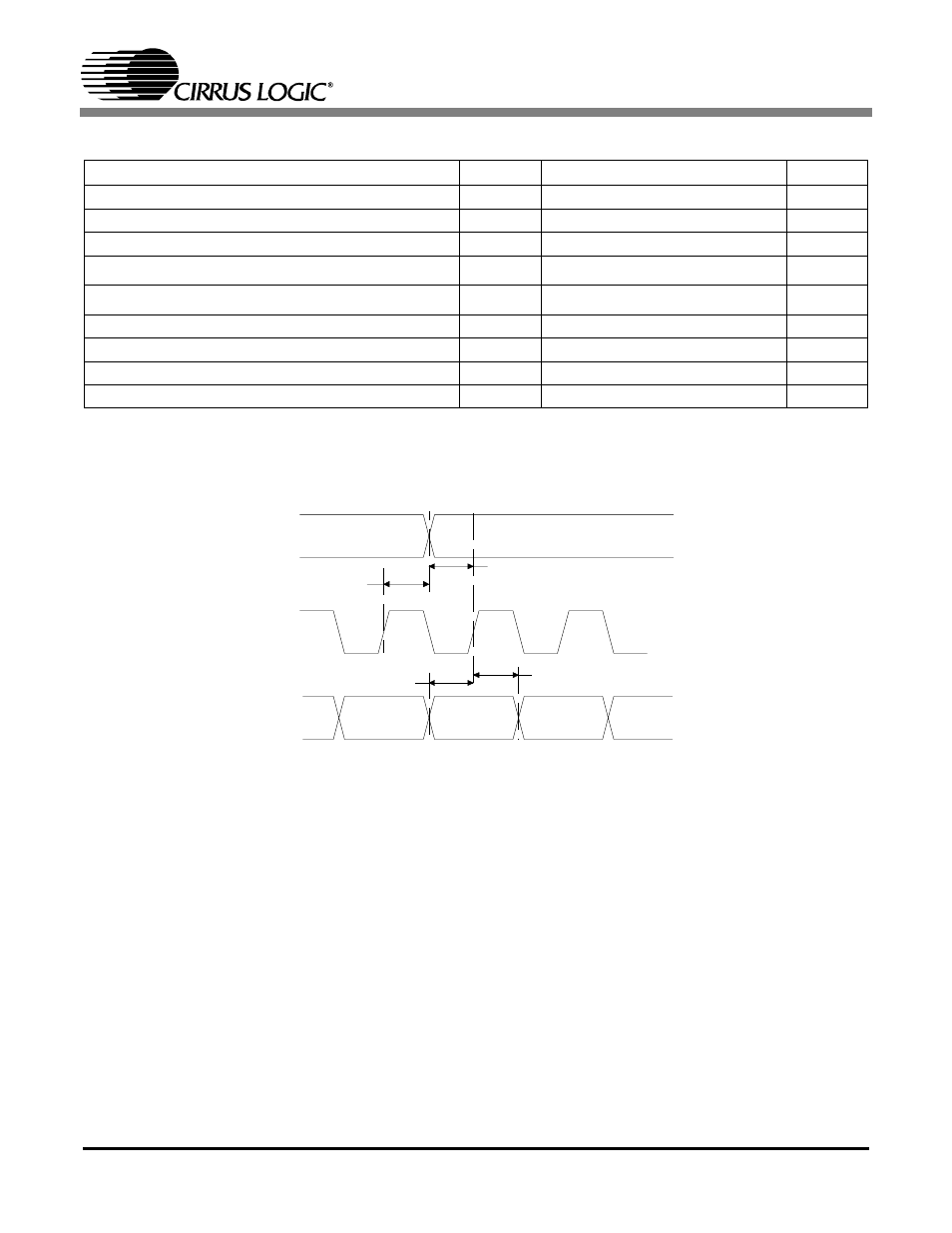

Page 9

background image

CS4391A

DS600PP3

9

SWITCHING CHARACTERISTICS - PCM MODES

(Inputs: Logic 0 = 0 V, Logic 1 = VL)

Notes: 6. This serial clock is available only in Control Port Mode when the MCLK Divide bit is enabled.

Parameters

Symbol Min

Typ

Max

Units

Input Sample Rate

Fs

4

-

200

kHz

LRCK Duty Cycle

45

50

55

%

MCLK Duty Cycle

40

50

60

%

SCLK Frequency

-

-

MCLK/2

Hz

SCLK Frequency

(Note 6)

-

-

MCLK/4

Hz

SCLK rising to LRCK edge delay

t

slrd

20

-

-

ns

SCLK rising to LRCK edge setup time

t

slrs

20

-

-

ns

SDATA valid to SCLK rising setup time

t

sdlrs

20

-

-

ns

SCLK rising to SDATA hold time

t

sdh

20

-

-

ns

slrs

t

s lrd

t

s d lrs

t

s d h

t

S D AT A

S C LK

L R C K

Figure 1. Serial Mode Input Timing
