DS895F2 23
CS4354
7. PACKAGE INFORMATION
7.1 Dimensions
7.2 Thermal Characteristics
8. ORDERING INFORMATION
INCHES MILLIMETERS
DIM MIN NOM MAX MIN NOM MAX
A 0.0590 - 0.0708 1.397 - 1.549
A1 0.0040 - 0.0098 0.102 - 0.249
b 0.0138 - 0.0200 0.351 - 0.508
C 0.0075 - 0.0098 0.190 - 0.250
D 0.3380 - 0.3440 8.585 - 8.738
E 0.1520 - 0.1574 3.861 - 3.998
e - 0.050 BSC - - 1.270 BSC -
H 0.2300 - 0.2440 5.842 - 6.198
L 0.0160 - 0.0350 0.406 - 0.889

0° - 8° 0° - 8°
JEDEC #: MS-012
Controling Dimension is Millimeters
Parameter Symbol Min Typ Max Units
Junction-to-Ambient Thermal Impedance 2-layer board
4-layer board

JA
-
- 110
86
-
- °C/Watt
Product Description Package Pb-Free Grade Temp Range Container Order #
CS4354
5 V Stereo Audio DAC
with 2 V
RMS
Line Output
14-pin
SOIC
YES Commercial -40° to +85° C
Rail CS4354-CSZ
Tape & Reel CS4354-CSZR
CDB4354 CS4354 Evaluation Board - - - - CDB4354
e

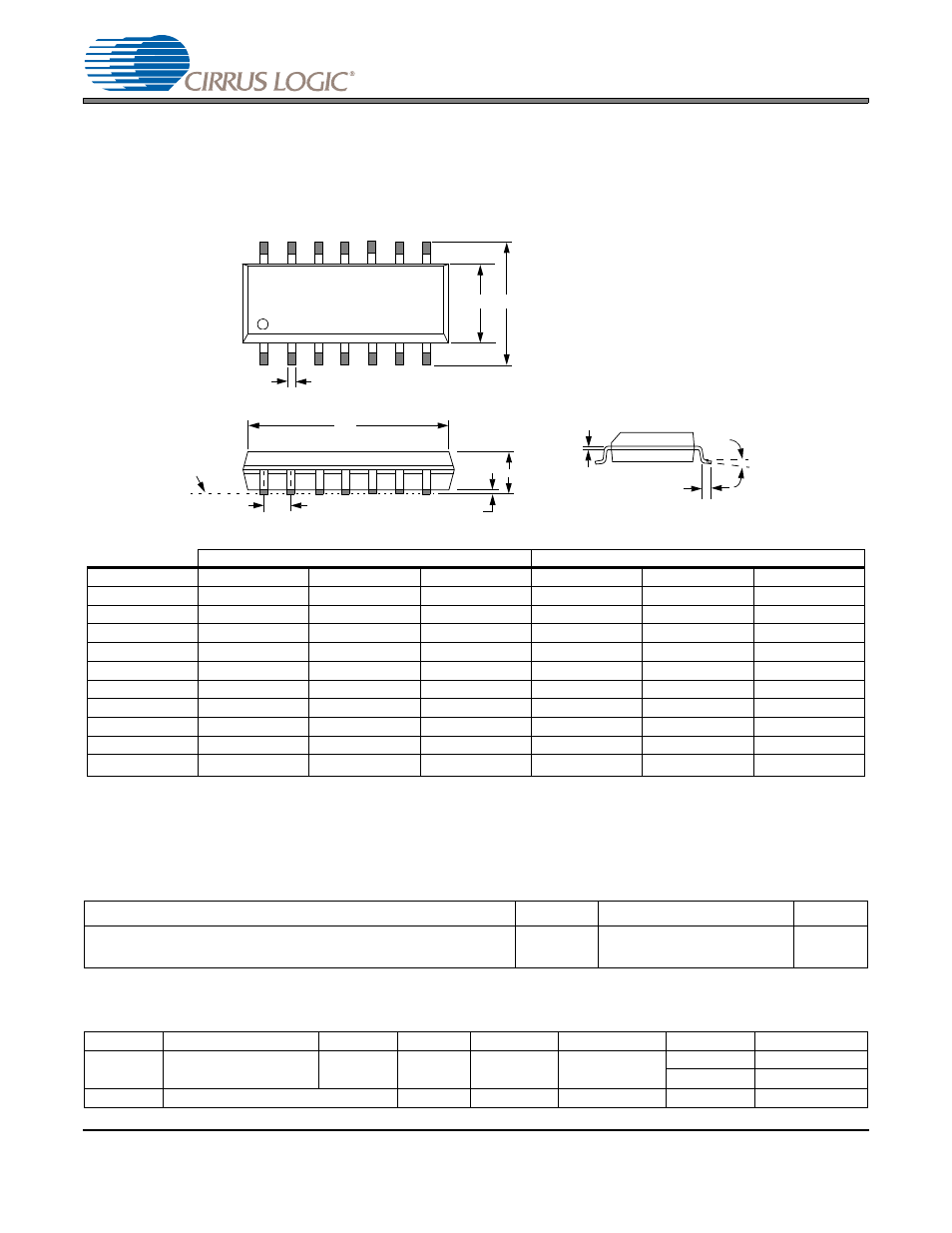

14L SOIC (150 MIL BODY) PACKAGE DRAWING
D
H E
b
A1
A
c
L
 SEATING
PLANE
