4.6 Register Maps Tab
The Register Maps tabs provide low-level control of the CS42L55, CS8416, CS8406, CS8421, FPGA and
GPIO register settings. Register values can be modified bit-wise or byte-wise. “Left-clicking” on a particular
register accesses that register and shows its contents at the bottom. The user can change the register con-
tents by using the push-buttons, by selecting a particular bit and typing in the new bit value or by selecting
the register in the map and typing in a new hex value.

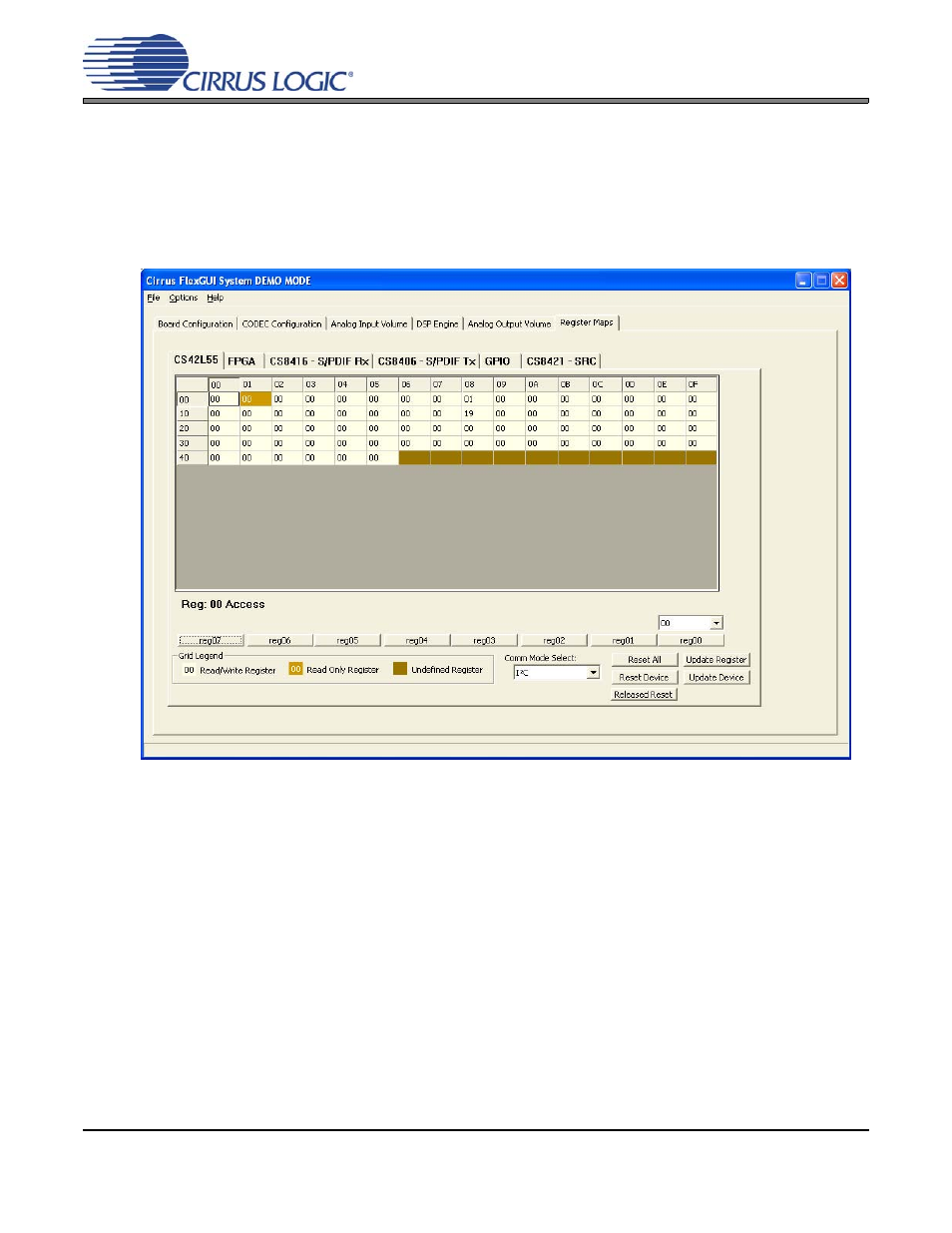

Figure 9. Register Maps Tab - CS42L55
