12 DS773DB1
CDB42L55
4.2 CODEC Configuration Tab
The “CODEC Configuration” tab provides high-level control of the CS42L55 register settings. Status text de-
tailing the CODEC’s specific configuration appears directly below the associated control. This text will
change depending on the setting of the associated control. A description of each control group is outlined
below. See the CS42L55 data sheet for complete register descriptions.
Power Control - Register controls for powering down each device within the CODEC.
ADC Configuration - Controls for the input MUXs, PGA MUX’s, and high-pass filter settings.
Serial Port Configuration - Controls for all settings related to the serial I/O data and clocks on the board.
Update - Reads all registers in the CS42L55 and reflects the current values in the GUI.
Reset - Resets the CS42L55.

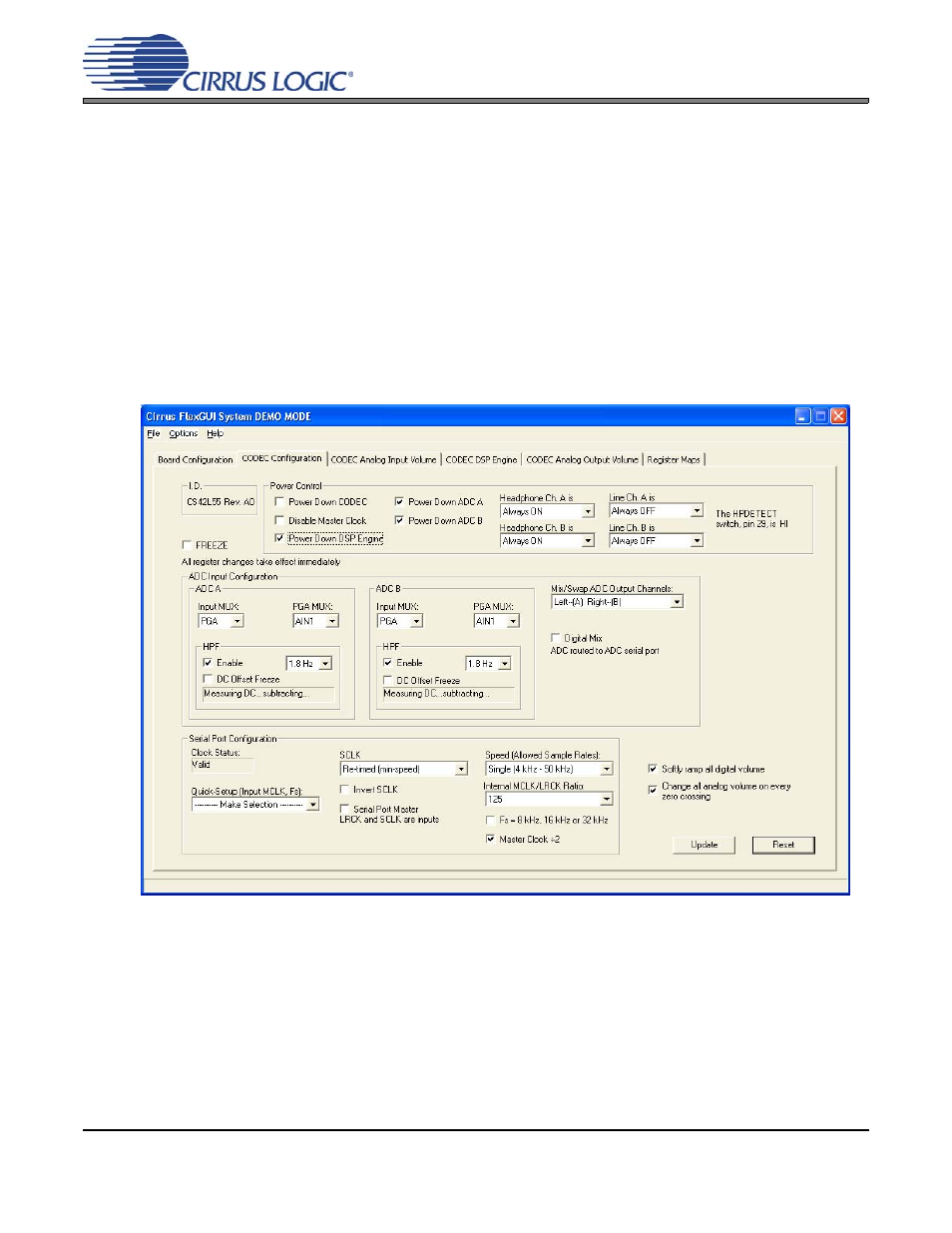

Figure 5. CODEC Configuration Tab
