CS2100-CP
20 DS840F2
5.4 PLL Clock Output
The PLL clock output pin (CLK_OUT) provides a buffered version of the output of the frequency synthesizer.
The driver can be set to high-impedance with the ClkOutDis bit.
The output from the PLL automatically drives a static low condition while the PLL is un-locked (when the
clock may be unreliable). This feature can be disabled by setting the ClkOutUnl bit, however the state
CLK_OUT may then be unreliable during an unlock condition.

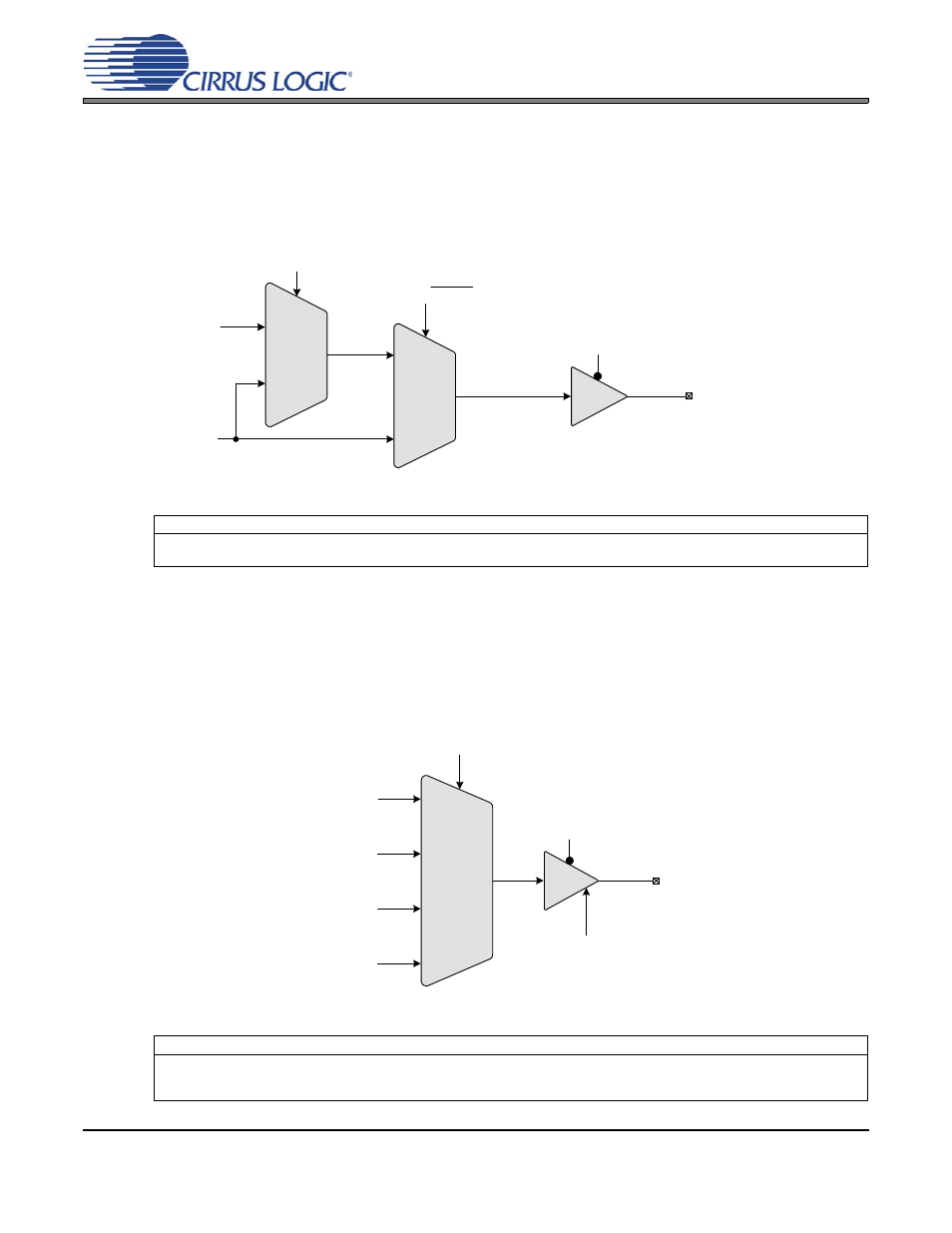

Figure 18. PLL Clock Output Options
5.5 Auxiliary Output
The auxiliary output pin (AUX_OUT) can be mapped, as shown in Figure 19 , to one of four signals: refer-
ence clock (RefClk), input clock (CLK_IN), additional PLL clock output (CLK_OUT), or a PLL lock indicator
(Lock). The mux is controlled via the AuxOutSrc[1:0] bits. If AUX_OUT is set to Lock, the AuxLockCfg bit is
then used to control the output driver type and polarity of the LOCK signal (see
section 8.6.2 on page 28 ).
If AUX_OUT is set to CLK_OUT the phase of the PLL Clock Output signal on AUX_OUT may differ from the
CLK_OUT pin. The driver for the pin can be set to high-impedance using the AuxOutDis bit.
Figure 19. Auxiliary Output Selection
Referenced Control Register Location
ClkOutUnl.............................. “Enable PLL Clock Output on Unlock (ClkOutUnl)” on page 29
ClkOutDis .............................. “PLL Clock Output Disable (ClkOutDis)” on page 26
Referenced Control Register Location
AuxOutSrc[1:0]...................... “Auxiliary Output Source Selection (AuxOutSrc[1:0])” on page 26
AuxOutDis ............................. “Auxiliary Output Disable (AuxOutDis)” on page 25
AuxLockCfg........................... “AUX PLL Lock Output Configuration (AuxLockCfg)” section on page 28
PLL Locked/Unlocked
PLL Output
2:1 Mux
ClkOutDis
2:1 Mux
ClkOutUnl
0
PLL Clock Output Pin
(CLK_OUT)
0
1
0
1
PLL Clock Output
PLLClkOut
Frequency Reference Clock
(CLK_IN)
PLL Lock/Unlock Indication
(Lock)
Timing Reference Clock
(RefClk)
PLL Clock Output
(PLLClkOut)
4:1 Mux
Auxiliary Output Pin
(AUX_OUT)
AuxOutDis
AuxOutSrc[1:0]
AuxLockCfg
