6 Commissoning, operation
WIKA operating instructions digital indicator model DI35-M
15

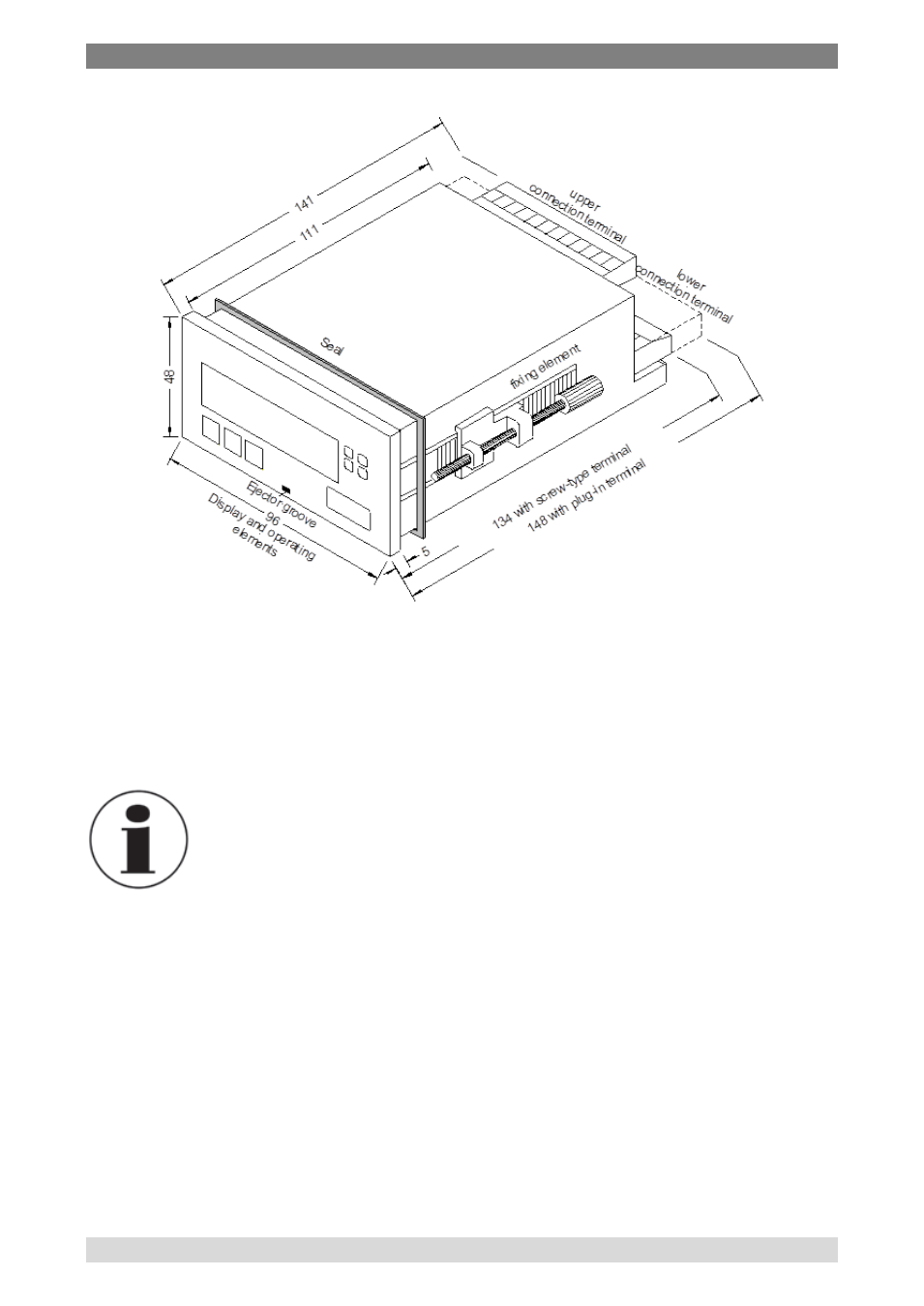

1. After removing the fixing elements, insert the device.
2. Check the seal to make sure it fits securely.
3. Click the fixing elements back into place and tighten the clamping
screws by hand.
Information
The dimension symbols can be exchanged before
installation via a channel on the side!
6.2 Electrical connection
All the necessary signals for operation are connected to the rear terminals.
The connecting terminals are designed as removable screw-type terminals
with a grid pitch of 5.08 mm. This makes it possible to connect wires of up to
2.5 mm².
