The TP-1xl and TP-2xl Video Line Transmitter and Receiver
5
4.3 Your TP-2xl Video Line Receiver
Figure 2 and Table 2 define the TP-2xl:

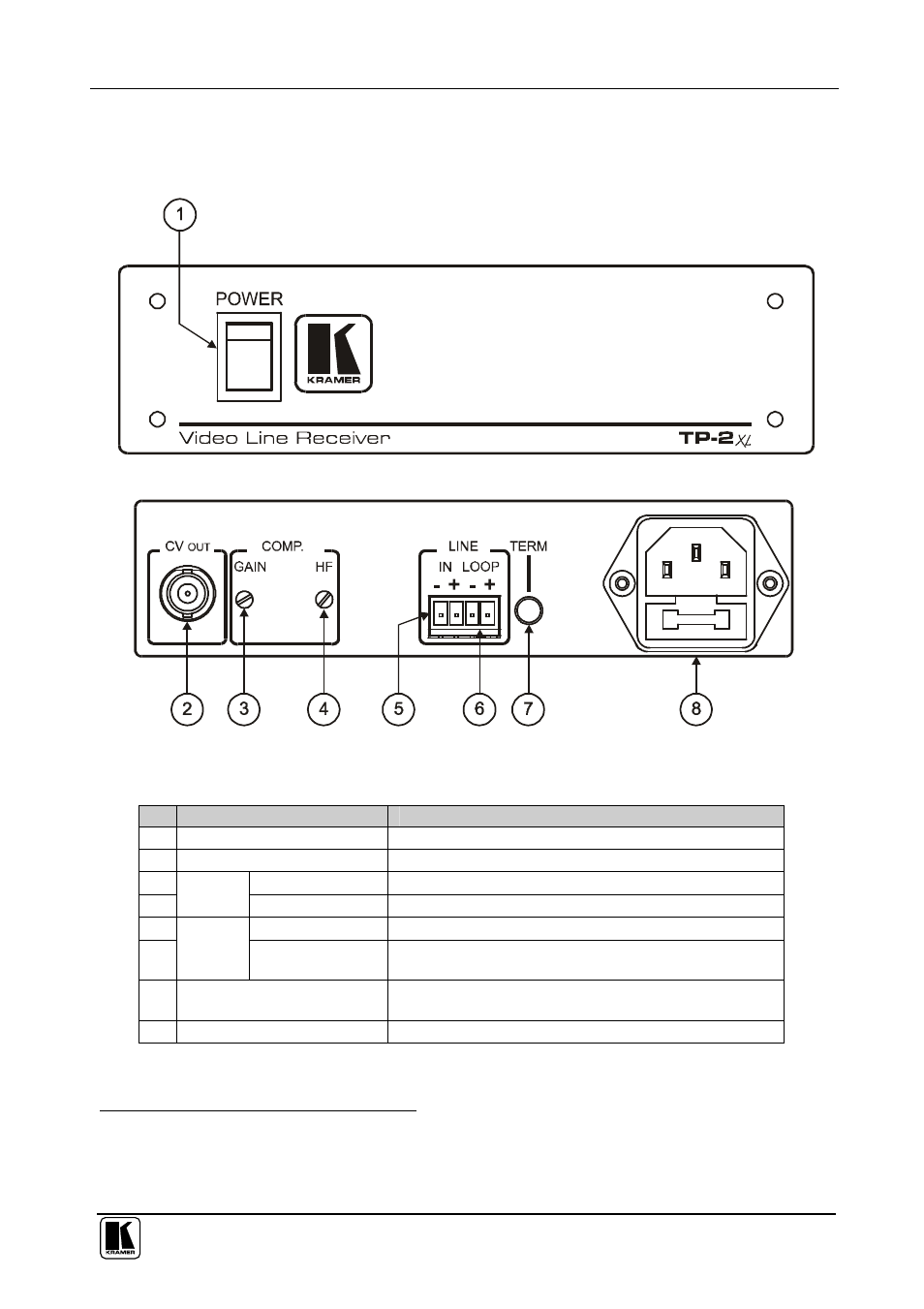

Figure 2: TP-2xl Video Line Receiver
Table 2: TP-2xl Video Line Receiver Features
# Feature Function
1 POWER Switch Illuminated switch for turning the unit ON or OFF
2 CV OUT BNC Connector Connect to the composite video acceptor
3 GAIN Trimmer Turn to adjust the output signal level 1
4
COMP
HF Trimmer Turn to adjust the output signal equalization 1
5 IN Terminal Block 2 Connect to the LINE OUT terminal block on the TP-1xl
6
LINE
LOOP Terminal
Block 3
Connect to the LINE IN terminal block of an additional
receiver
7 TERM button When pressed, terminates the unit that is the last in the
line (not looped)
8 Power Connector with Fuse AC connector enabling power supply to the unit
1 Insert a screwdriver into the hole and carefully rotate it, to trim the level
2 The first and second blocks marked – and + (video – and video + respectively)
3 The third and fourth blocks marked – and + (video – and video + respectively)
